6500kva Cast Coil Epoxy Resin Transformer
| Brand Name: | WINLEY |
| Model Number: | SCB10-1250/0.48 |
| MOQ: | 1unit |
| Price: | $5000-$100000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T |
6500kva cast coil transformer
,epoxy resin dry type transformer
,33000V to 900V cast coil transformer
6500kva Cast Coil epoxy resin Transformer Dry Type 33000V To 900V AS60076
6500kva Cast Coil Epoxy Resin Transformer Dry Type 33000V To 900V AS60076 AS3000 Standards
Winley’s 6,500 kVA dry‑type cast resin transformer is engineered for reliable, low‑maintenance power distribution in commercial, industrial and utility indoor installations. Designed and manufactured to AS 60076 and AS 3000 standards, this transformer provides robust performance, excellent dielectric safety and low harmonic distortion for critical systems where fire safety, compact footprint and environmental friendliness are priorities.

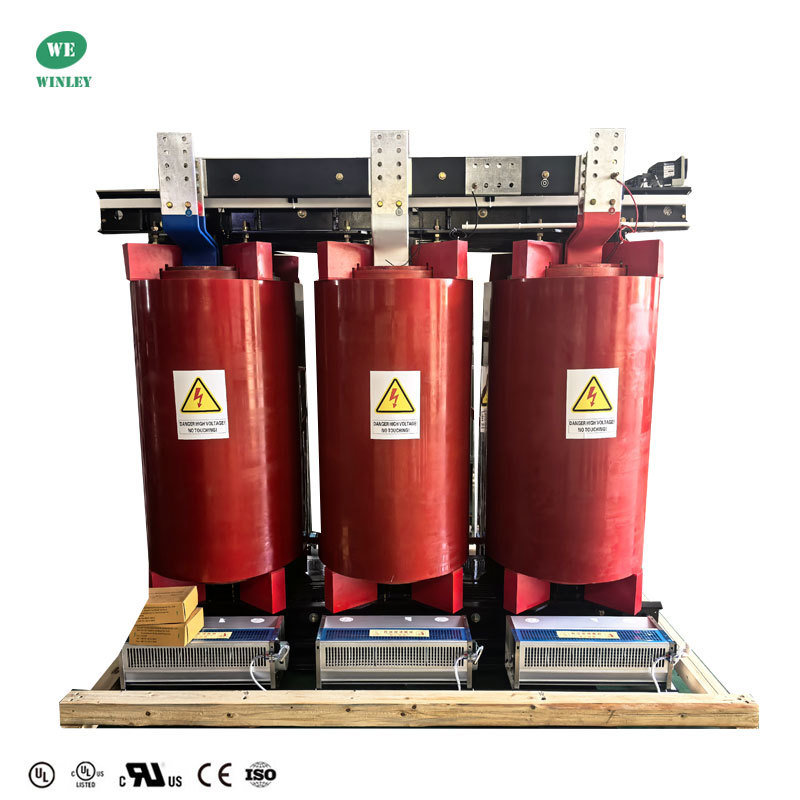

Product Photos

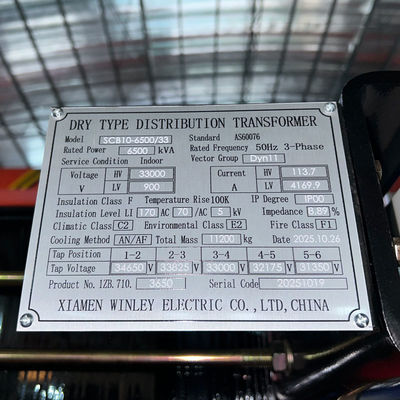

Main data
| No. | Particulars | Unit | Specification |
| 1 | Type | ~ | dry type, cast resin |
| 2 | Rated capacity | kVA | 6500 |
| 3 | Duty | ~ | Continuous duty |
| 4 | No. of Phase | ~ | 3 |
| 5 | Primary voltage | V | 33000 |
| 6 | Secondary voltage | V | 900 |
| 7 | Tapping type | ~ | off-circuit |
| 8 | Tapping range | % | ±2*2.5% |
| 9 | Cooling method | ~ | AN/AF |
| 10 | Rated frequency | Hz | 50 |
| 11 | Vector group | ~ | Dyn11 |
| 12 | Insulation class | ~ | F |
| 13 | Temperature rise | ℃ | 100 |
Technical drawings
Built in accordance with AS/NZS 60076 and wiring per AS/NZS 3000 to ensure regulatory compliance, safety and interoperability with Australian/New Zealand power systems.
Standard Features
- Cooling fans for AN/AF operation to maintain thermal margins under higher load or elevated ambient temperatures.
- Temperature monitoring: Nine PT100 sensors on the low‑voltage winding plus a resistance temperature device for thorough thermal supervision and integration with protecting/control systems.
- Wiring and identification: All wiring and heat shrink materials installed to AS/NZS 3000. Phase identification follows the color code — Phase A (a): red, Phase B (b): white, Phase C (c): blue.
The transformers have the following characteristics:
- Windings have high mechanical strength and no partial discharge.
- Epoxy resin and insulating materials used for windings are non-flammable, will not burn from an electric arc, and no toxic gases will be given off when the resin is burned.
- Envionmental adaptability with windings that will not absorb moisture and a special anti-rust protective coating that seals the core and frame.
- Operates under one-hundred percent relative humidity and other severe ambient conditions.
- Ability to switch on the device without pre-drying or long periods of service interruptions.
- Excellent short-circuit and lighting impulse strength.
- Cooled naturally by air (AN) and forced air cooling (AF) provided as an option to improve overload capacity.
- Smaller dimensions, less weight, and space saving.
- Oil drainage pits and fire extinguishing devices not required for operation.
Production process
High-voltage winding appliesvacuumpouring of padding epoxyresin which, at highlevel,reduces partial discharge capacity andelevates the electric strength of coils. The insideand outside of the winding is buildup with glassfiber grid overlaywhich strengthens thethemechanicalrobustnessandimprovesresistance of short-circuits and ensures the coilswill never crack.
