2000Kva Cast Resin Dry Type Transformer 800V To 430V 304SS Enclouse

Brand Name:	WINLEY
Model Number:	SCB10-2000/0.8
MOQ:	1unit
Price:	$10000-$100000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Type:

Dry Type Transformer

Rated Capacity:

2000KVA Or Customize

Cooling Method:

AN/AF

Frequency:

50/60Hz

Material:

Copper

Impedance:

Vector Group:

YNyn0

Insulation Class:

Supply Ability:

1000set/month

Highlight:

3Phase Cast Resin Transformer

Cast Resin Transformer 2000kva

Customized Dry Cast Resin Transformer

Product Description

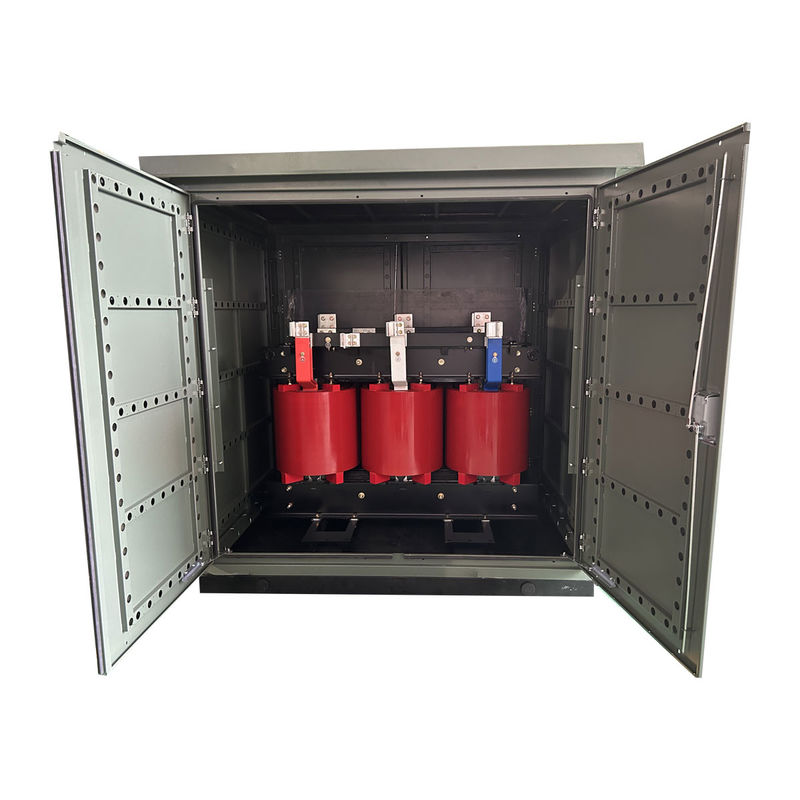

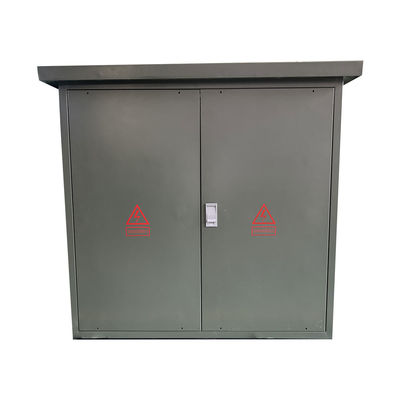

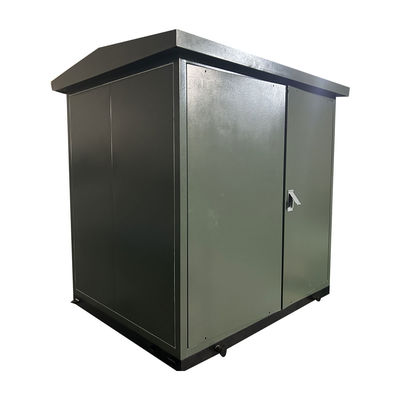

2000Kva Cast Resin Dry Type Transformer 800V To 430V 304SS Enclouse IP55

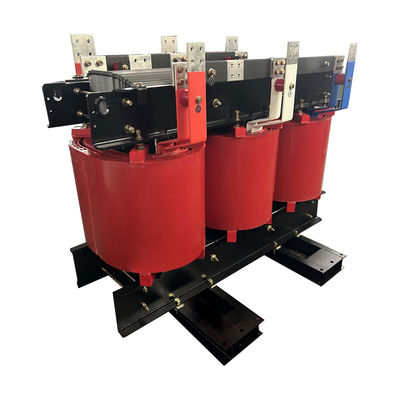

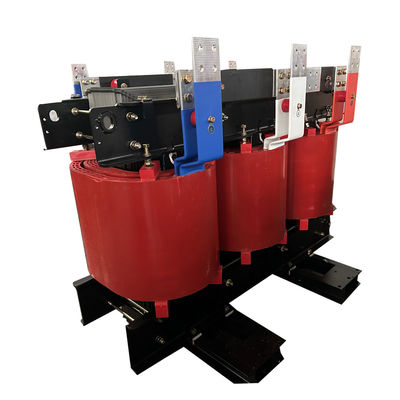

Dry-type power transformer is a dry-type transformer with high electrical strength, mechanical strength and heat resistance strength. It is an excellent product for urban power grid transformation. It is especially suitable for high-rise buildings, airports, power stations, commercial centers, etc. important place.

2000Kva Cast Resin Dry Type Transformer 800V To 430V 304SS Enclouse 0

Main data

Particulars	Unit	Specification
Type	~	dry type, cast resin
Rated capacity	kVA	2000
No. of Phase	~	3
Primary voltage	kV	0.8
Secondary voltage	kV	0.43
Tapping type	~	off-load
Cooling method	~	AN/AF
Rated frequency	Hz	50
Vector group	~	YNyn0
Insulation class	~	F
Temperature rise	K	100
Off-load loss	W	4230
On-load loss (120℃)	W	17800
Impedance	%	3.5
Winding material	~	Cu
Core material	~	silicon steel

Dry transformer features

1)Moisture-proof and corrosion-resistant ability , and it can run normally at 100%humidity,especially for work in extreme environmental conditions.
2)Lost loss, small local discharge, small noise, and strong heat dissipation capacity, can run 150%of the rated load operation.
3)High the whole mechanical strength of the cast coil withstand sudden short -circuit capability.
4)Safe, fire prevention, no pollution, can be installed directly in the load center.
5)Simple maintenance and installation, low comprehensive operating costs.

2000Kva Cast Resin Dry Type Transformer 800V To 430V 304SS Enclouse 1

Specification

Rated capacity	High Voltage	Low	Connection Symbol	No-Load Loss	On-Load Loss	No Load Current	Weight	Short Circuit Impendence
(KVA)	(KV)	Voltage		(W)	(W)	(%)	(KG)	(%)
(KVA)	(KV)	(KV)
10	6 6.3 10 10.5 11	0.4	Dyn11 Yyn0	0.15	0.325	4.1	130	4
30				0.215	0.75	3.2	260
50				0.305	1.055	2.8	315
80				0.415	1.46	2.6	470
100				0.45	1.665	2.4	520
125				0.53	1.955	2.2	585
160				0.61	2.25	2.2	670
200				0.7	2.675	2	790
250				0.81	2.915	2	920
315				0.99	3.67	1.8	1085
400				1.1	4.22	1.8	1320
500				1.305	5.165	1.8	1520
630				1.46	6.31	1.6	1820	6
800				1.71	7.36	1.6	2105
1000				1.99	8.6	1.4	2550
1250				2.35	10.26	1.4	2900
1600				2.755	12.42	1.4	3490
2000				3.735	15.3	1.2	4220
2500				4.5	19.53	1.2	4955

Production process

2000Kva Cast Resin Dry Type Transformer 800V To 430V 304SS Enclouse 5
