| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WINLEY |
| Certification: | CE,ISO |
| Model Number: | SCB10-6500/33 |
| Minimum Order Quantity: | 1unit |
| Price: | $1000-$150000 |
| Packaging Details: | Plywood case |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 1000set/month |
| Phase: | Three Phase | Type: | Dry Type, Cast Resin |
|---|---|---|---|
| Capacity: | 6500Kva | Primary Voltage: | 33000V |
| Secondary Voltage: | 900V | Cooling Method: | AN/AF |
| Insulation Class: | F | Impedance: | 9% |
| High Light: | Cast Resin Three Phase Transformer,6500K Three Phase Transformer,Cast Resin Transformer 33KV |
||

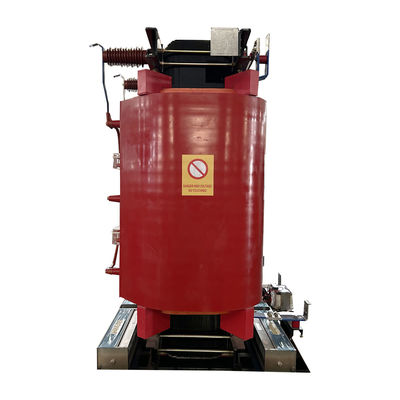

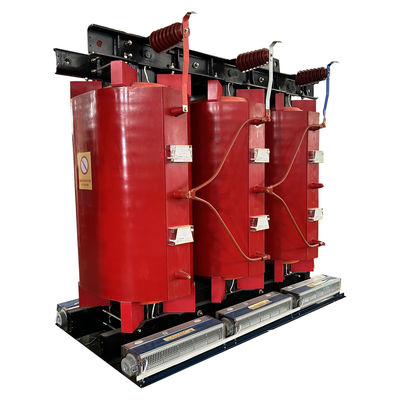

6500K Dry Type cast Resin Three Phase Transformer 33KV To 0.9KV
Technical data
| Type | Dry type, cast resin |
| Rated capacity | 50-6300KVA |
| Insulation Type | F |
| Cooling Method | AN/AF |
| Primary voltage | 12/24/33KV |
| Secondary voltage | 400/230V |
| Vector Group | Dyn11,Yyn0 |
| Tapping Range | ±2×2.5 |
| Rated frequency | 50Hz/60Hz |
| Temperature rise | 100℃ |
| Impedance | 9% |
| No-load loss | 10930W |
| On-load loss(120℃) | 55320W |
| Winding material | Aluminum or Copper |
| Core material | Silicon steel |
| Standard | ANSI,IEC |
| Certified | CE/ISO |
Dry transformers structural features
1)Box coil: The low -voltage winding uses the entire copper foil, along with the F -class turning insulation on the dedicated low -pressure foil winding machine.
2)Foil coils are well solved with low pressure, large -current coils around the product, large stress, unbalanced amnf -balancing, poor heat dissipation effects, and outstanding problems such as winding spiral angles, and unstable artificial welding quality.
3)At the same time, the transformer winding is seized with resin, solidified and shaped, and moisture -proof and pollution -proof.
Production process
