6500K Three Phase Dry Type Transformer Cast Coil Step Up Transformer 33KV

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: CE,ISO
Model Number: SCB10-6500/35
Minimum Order Quantity: 1unit
Price: $5000-$10000
Packaging Details: Plywood case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 1000set/month
Detail Information
Phase: Three Rated Capacity: 6500KVA Or Customize
Cooling Method: AN/AF Frequency: 50/60Hz
Insulation Level: F/H Winding Material: Aluminum
Vector Group: Dyn11 Temperature Rise: 100℃

Product Description

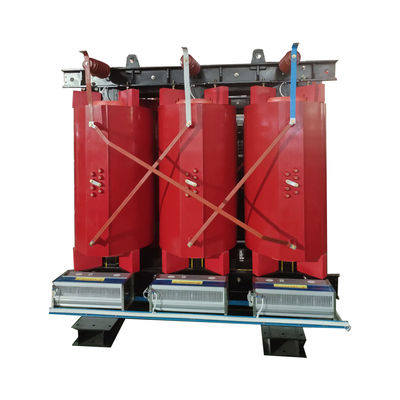

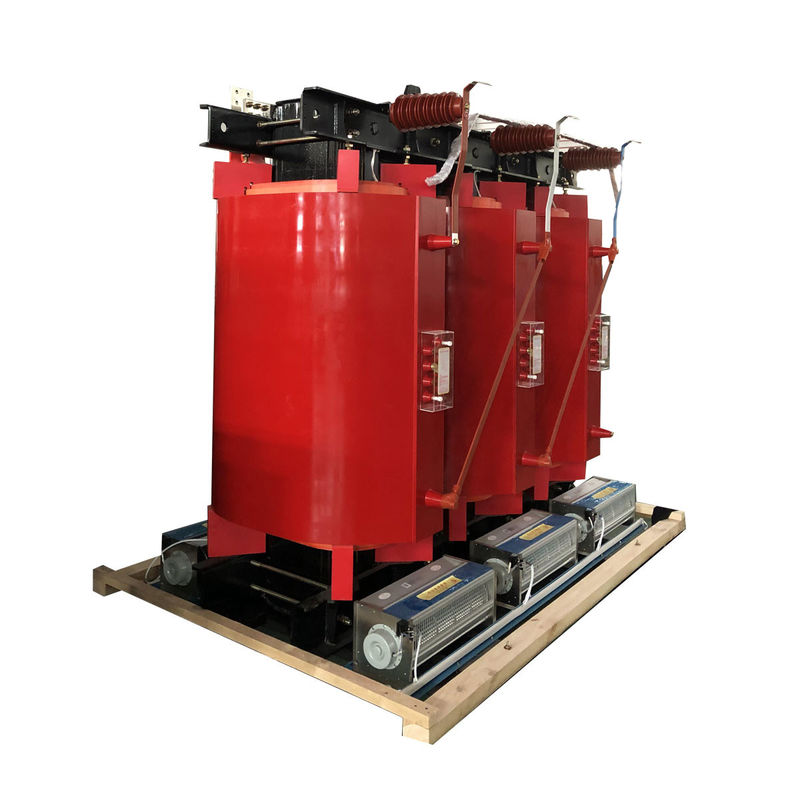

6500K Three Phase Dry Type Transformer Cast Coil Step Up Transformer 33KV





Dry transformer features



1)Moisture-proof and corrosion-resistant ability , and it can run normally at 100%humidity,especially for work in extreme environmental conditions.
2)Lost loss, small local discharge, small noise, and strong heat dissipation capacity, can run 150%of the rated load operation.
3)High the whole mechanical strength of the cast coil withstand sudden short -circuit capability.
4)Safe, fire prevention, no pollution, can be installed directly in the load center.
5)Simple maintenance and installation, low comprehensive operating costs.



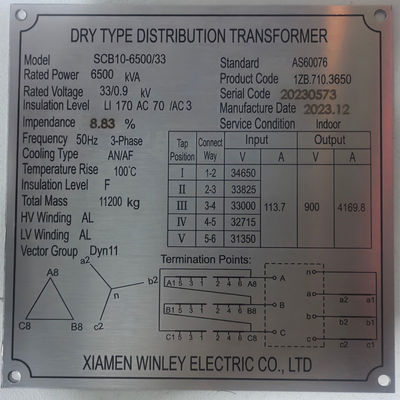

6500K Three Phase Dry Type Transformer Cast Coil Step Up Transformer 33KV 0



Main Data



6500kVA transformer specification data
No. Particulars Unit Specification
1 Type ~ dry type, cast resin
2 Rated capacity kVA 6500
3 Duty ~ Continuous duty
4 No. of Phase ~ 3
5 Primary voltage V 33000
6 Secondary voltage V 900
7 Tapping type ~ off-circuit
8 Tapping range % ±2*2.5%
9 Cooling method ~ AN/AF
10 Rated frequency Hz 50
11 Vector group ~ Dyn11
12 Insulation class ~ F
13 Temperature rise 100
14 Impedance % 9
15 No-load loss W 10930
16 On-load loss(120) W 55320
17 Winding material ~ Aluminum
18 Core material ~ Silicon steel



Product drawings



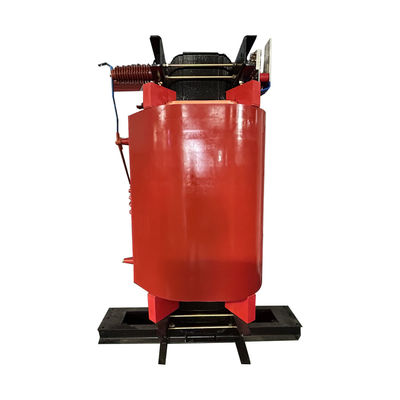

6500K Three Phase Dry Type Transformer Cast Coil Step Up Transformer 33KV 1



Specification



Rated capacity High Voltage Low Connection Symbol No-Load Loss On-Load Loss No Load Current Weight Short Circuit Impendence
(KVA) (KV) Voltage (W) (W) (%) (KG) (%)
(KV)
10 6 0.4 Dyn11 0.15 0.325 4.1 130 4
30 6.3 Yyn0 0.215 0.75 3.2 260
50 10   0.305 1.055 2.8 315
80 10.5   0.415 1.46 2.6 470
100 11   0.45 1.665 2.4 520
125     0.53 1.955 2.2 585
160     0.61 2.25 2.2 670
200     0.7 2.675 2 790
250     0.81 2.915 2 920
315     0.99 3.67 1.8 1085
400     1.1 4.22 1.8 1320
500     1.305 5.165 1.8 1520
630     1.46 6.31 1.6 1820 6
800     1.71 7.36 1.6 2105
1000     1.99 8.6 1.4 2550
1250     2.35 10.26 1.4 2900
1600     2.755 12.42 1.4 3490
2000     3.735 15.3 1.2 4220
2500     4.5 19.53 1.2 4955



Factory photos



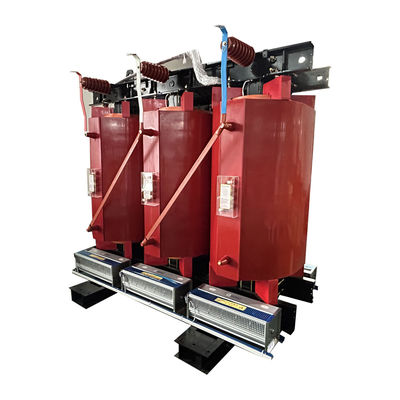

6500K Three Phase Dry Type Transformer Cast Coil Step Up Transformer 33KV 2



Production process



150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 4

150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 5

150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 6



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
