100 Kva Sgb Cast-Resin Isolation Transformers Dry Type 433v Cast Coil Transformer Aluminium enclosures

Brand Name: WINLEY
Model Number: SCB10-100/0.4
MOQ: 1unit
Price: $5000-$100000
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ISO
Type:
Cast Coil Isolation Transformer
Rated Capacity:
100
Primary Voltage:
433V
Secondary Voltage:
433V
Cooling Method:
AN/AF
Vector Group:
Dynyn11
Temperature Rise:
100℃
Enclosures:
IP20
Supply Ability:
1000set/month
Product Description

100 Kva SGB Cast-Resin Isolation Transformers Dry Type 433v Cast Coil Transformer Aluminium enclosures





The cast coil transformer is a compact structure, low-noise, low-loss, moisture resistance, flame retardant, cast resin dry-type transformer. The windings are vacuum cast inside a solid block of epoxy resin which provides the highest degree of protection to the windings.

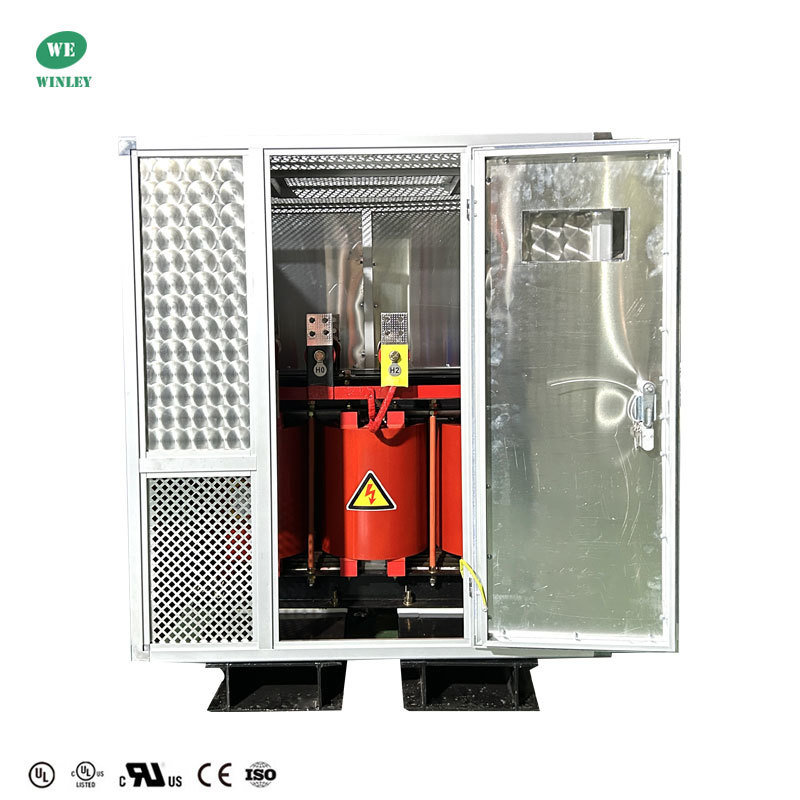

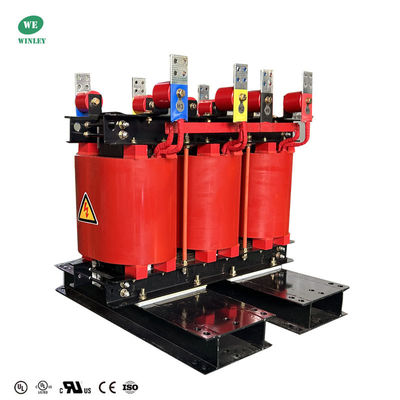

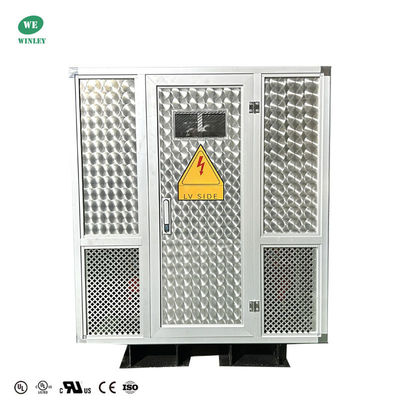

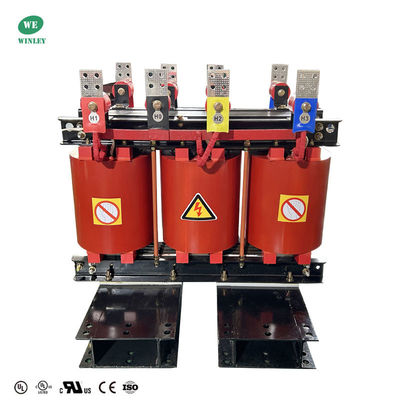

Product Photos



100 Kva Sgb Cast-Resin Isolation Transformers Dry Type 433v Cast Coil Transformer Aluminium enclosures 0   100 Kva Sgb Cast-Resin Isolation Transformers Dry Type 433v Cast Coil Transformer Aluminium enclosures 1



100 Kva Sgb Cast-Resin Isolation Transformers Dry Type 433v Cast Coil Transformer Aluminium enclosures 2   100 Kva Sgb Cast-Resin Isolation Transformers Dry Type 433v Cast Coil Transformer Aluminium enclosures 3



Main data



No. Particulars Unit Specification
1 Type ~ dry type, cast resin
2 Rated capacity kVA 100
3 No. of Phase ~ 3
4 Primary voltage V 433
5 Secondary voltage V 433
6 Power frequency voltage kV 15kV for 1 minute
7 Tap changer ~ N/A
8 Cooling method ~ AN
9 Rated frequency Hz 50
10 Vector group ~ YNyn0
11 Insulation class ~ F
12 Temperature rise K 100
13 Off-load loss W 426
14 On-load loss (120℃) W 1820
15 Impedance % 4
16 Winding material ~ Cu
17 Core material ~ silicon steel
18 Electrostatic shield ~ yes
19 Service condition ~ intdoor
20 Ambient temperature ℃ 5~40
21 Sea level M 1000

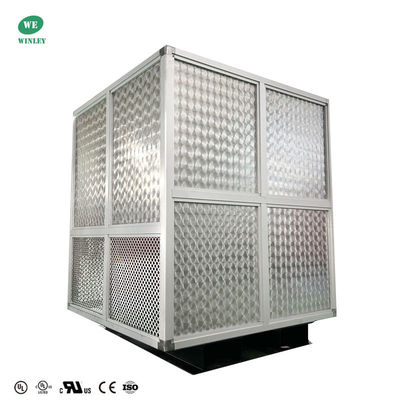

Technical drawings



100 Kva Sgb Cast-Resin Isolation Transformers Dry Type 433v Cast Coil Transformer Aluminium enclosures 4



100 Kva Sgb Cast-Resin Isolation Transformers Dry Type 433v Cast Coil Transformer Aluminium enclosures 5



Application​



Cast-Resin Isolation Transformers possess remarkable moisture-proof and corrosion-resistant capabilities, enabling them to function optimally even in extreme environmental conditions. These transformers are particularly well-suited for densely populated areas and locations with stringent environmental protection requirements, such as commercial centers, hospitals, and schools. Thanks to their reduced fire risk and eco-friendly features, cast-resin transformers, offer significant advantages in these scenarios.



Production process



100 Kva Sgb Cast-Resin Isolation Transformers Dry Type 433v Cast Coil Transformer Aluminium enclosures 6

100 Kva Sgb Cast-Resin Isolation Transformers Dry Type 433v Cast Coil Transformer Aluminium enclosures 7

100 Kva Sgb Cast-Resin Isolation Transformers Dry Type 433v Cast Coil Transformer Aluminium enclosures 8
