Cast Coil Transformer
>
2500kva Cast Coil Transformer 22kv To 433v Dry Type Epoxy Resin Electrical Power Transformers
All Category

Oil Type Transformer

Three Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Pole Mounted Transformer

Cast Coil Transformer

UPS Isolation Transformer

Three Phase Dry Type Transformer

Three Phase Isolation Transformer

Medical Isolation Transformer

Industrial Control Transformer

Single Phase Control Transformer

Toroidal Isolation Transformer

EI Power Transformer

Three Phase Auto Transformer

Three Phase Voltage Regulator

Three Phase Reactor
Contact Us
Mr. Steven
steven@winley-electric.com
86-18650108051
Contact Now
2500kva Cast Coil Transformer 22kv To 433v Dry Type Epoxy Resin Electrical Power Transformers
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name

2500kva Cast Coil Transformer 22kv To 433v Dry Type Epoxy Resin Electrical Power Transformers

Brand Name: WINLEY
Model Number: SCB10-2500/22
MOQ: 1unit
Price: $5000-$100000
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ISO
Type:
Cast Coil Transformer
Rated Capacity:
2500Kva
Primary Voltage:
22000V
Secondary Voltage:
433V
Cooling Method:
AN/AF
Insulation Class:
F (155℃)
Temperature Rise:
100℃
Standard:
AS60076
Supply Ability:
1000set/month
Highlight:

2500kva Cast Coil Transformer

,

Epoxy Resin Cast Coil Transformer

Product Description

2500kva Cast Coil Transformer 22kv To 433v Dry Type Epoxy Resin Electrical Power Transformers AS60076 Standard


Cast coil transformers are the ideal solution for voltage distribution in harsh environments with airborne dust or high humidity. The windings are vacuum-cast into a solid block of epoxy resin, providing the highest level of protection for the windings.

Product Photos

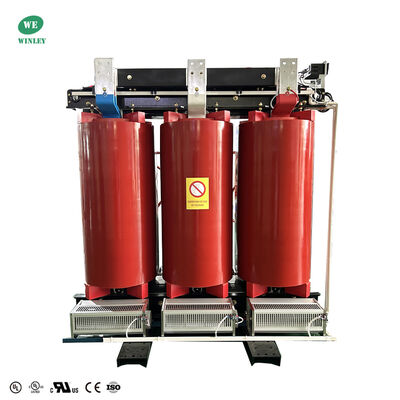

2500kva Cast Coil Transformer 22kv To 433v Dry Type Epoxy Resin Electrical Power Transformers 0

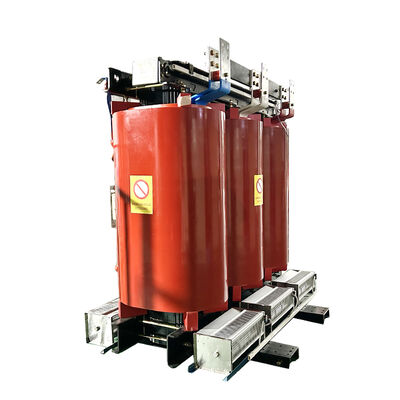

2500kva Cast Coil Transformer 22kv To 433v Dry Type Epoxy Resin Electrical Power Transformers 1

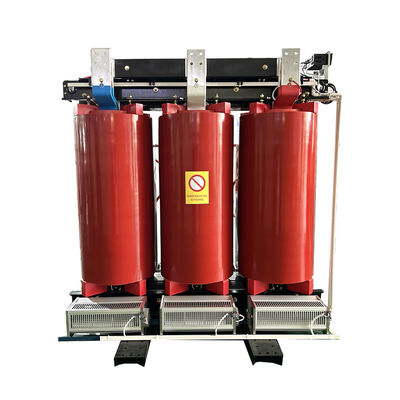

2500kva Cast Coil Transformer 22kv To 433v Dry Type Epoxy Resin Electrical Power Transformers 2


winley electric’s cast coil transformers are designed, built, and tested in accordance with the highest industry standards including NEMA, ANSI, DOE, AS60076,and IEEE as applicable.


Main data


No. Particulars Unit Specification Remark
1 Type ~ cast resin, dry type
2 Rated capacity kVA 2500
3 No. of Phase ~ 3
4 Primary voltage V 22000 Delta
5 Secondary voltage V 433 Wye
6 Tapping type ~ off-circuit tapping
7 Tapping type % ±2*2.5%
8 Cooling method ~ AN/AF
9 Rated frequency Hz 50
10 Vector group ~ Dy1
11 Insulation class ~ F
12 Temperature rise K 100
13 Standard ~ AS60076


Technical drawings

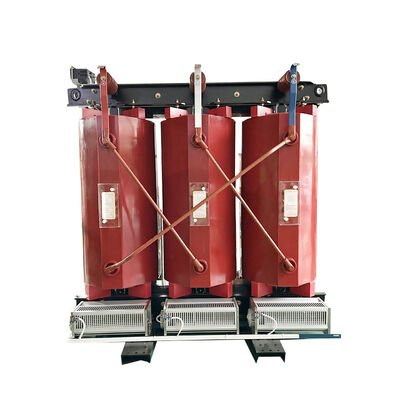

2500kva Cast Coil Transformer 22kv To 433v Dry Type Epoxy Resin Electrical Power Transformers 3


Features



  • Self Cooled (AN/AF)
  • 50/60Hz
  • Aluminum/copper Windings
  • 100°C Temperature Rise
  • Primary taps +/-2 x 2.5%
  • Terminal Bus Stubs Suitable For Cables
  • NEMA 2, 3R, 4, 4X Enclose
  • Dial or Digital Thermometers
  • Anti-Condensation Strip Heaters
  • Anti-Vibration mounting to reduce transformer hum (sound level)
  • Distribution, Intermediate or Station Class Surge Arresters
  • Provision for Buss Duct Entry
  • Fully Insulated Buss
  • Mimic Buss

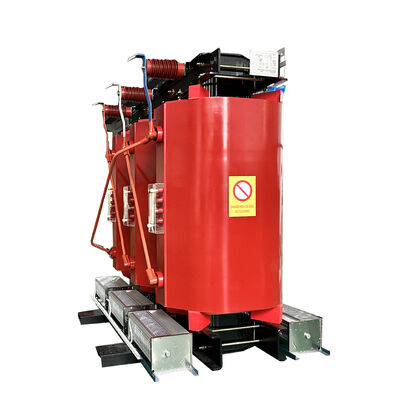

2500kva Cast Coil Transformer 22kv To 433v Dry Type Epoxy Resin Electrical Power Transformers 4


Cast Coil Transformer ​ Benefits

  • Low to no maintenance
  • Self-extinguishing insulation system
  • Can be used in a variety of environments
  • Overload capable and fan options for extra cooling
  • Lower installation costs than oil-filled transformers

Production process

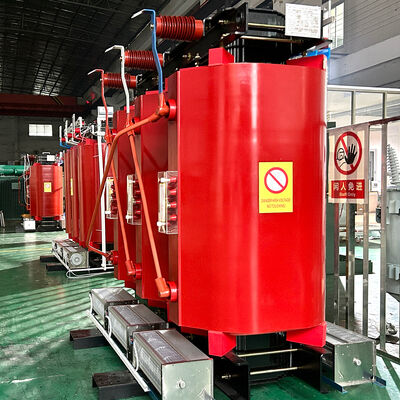

2500kva Cast Coil Transformer 22kv To 433v Dry Type Epoxy Resin Electrical Power Transformers 5
