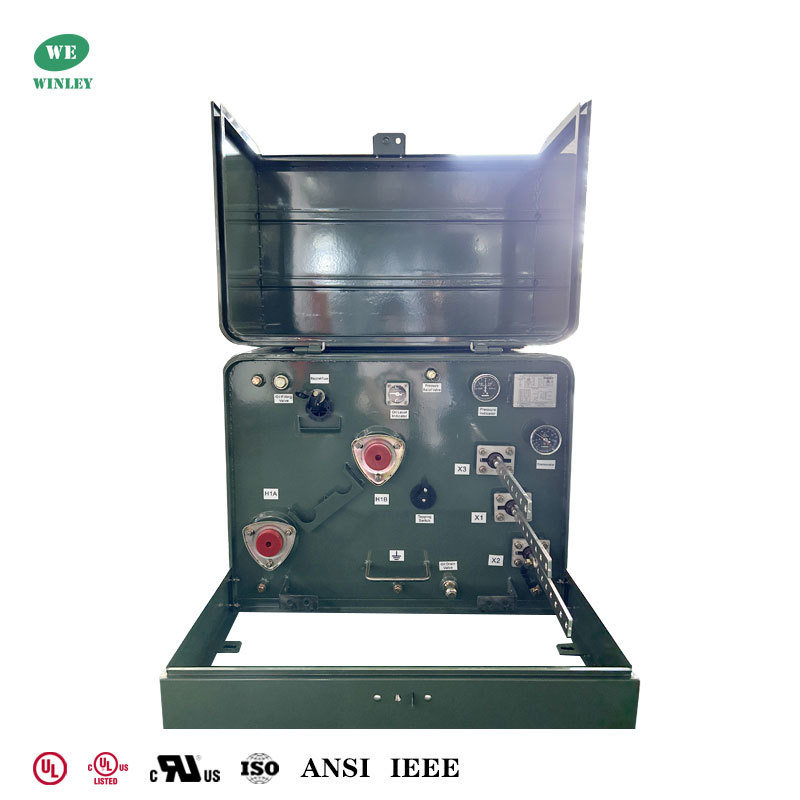

100Kva Single Phase Pad mounted Transformer Dual Windings 12.47KV To 120V ANSI DOE

Brand Name:	WINLEY
Model Number:	ZGD-100/12.47
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL/cUL, ISO

Transformer Type:

Liquid Filled Pad Mounted

Capacity:

100KVA

Primary Voltage:

12470V

Secondary Voltage:

120/240V

Cooling Class:

Frequency:

Efficiency:

99.00%

Efficiency Standard(s):

Meets DOE 2016 Standards, Meets ANSI/IEEE Standards

Supply Ability:

1000set/month

Product Description

100Kva Single Phase Pad mounted Transformer Dual Windings 12.47KV To 120V ANSI DOE

Single-phase pad-mounted transformers are compact, self-contained electrical device.It has the characteristics of small size, light weight, low noise, low loss, safety and reliability.It is widely used in residential quarters, commercial centers, hospitals, parks, schools, etc.

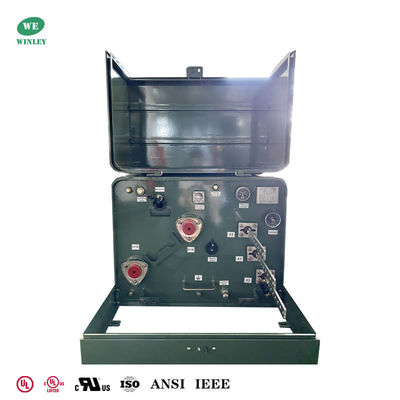

100Kva Single Phase Pad mounted Transformer Dual Windings 12.47KV To 120V ANSI DOE 0

Main data

Transformer Type	Pad Mounted, Compartmental-Type II
Transformer Feed Type	Loop Feed
Phase	Single Phase
Capacity	100 KVA
Vector Group	II6
Primary Voltage	12470Y/7200
Secondary Voltage	120/240V (L-N-L)
Secondary Voltage Class	1.2 kV Class
Secondary Phasor	Dual Windings, Single Phase
Secondary BIL	30 KV
Frequency	60 Hz
Temperature Rise	65°C
Cooling Class	ONAN; Self-Cooled
Efficiency Standard(s)	Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
Winding Material	Aluminum
Ambient Temperature Rating	40°C
Efficiency	99.00%

Key Features & Drawing

Operating at the standard 60 Hz frequency, these 100 kVA single-phase pad-mounted transformers exhibit exceptional performance. With a primary voltage rating of 12.47GrdY/7.2 kV and a secondary voltage of 240/120V, they achieve an impressive peak efficiency of 99.25%. What distinguishes them is their meticulous design, featuring a four-position load-break switch and a five-position tap changer.

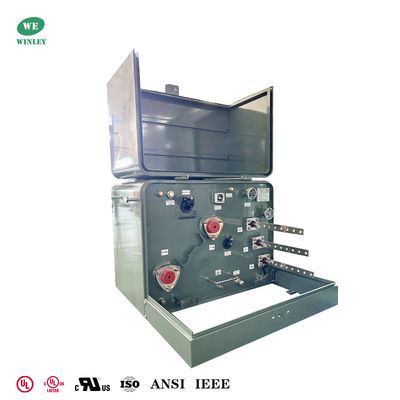

100Kva Single Phase Pad mounted Transformer Dual Windings 12.47KV To 120V ANSI DOE 1

100Kva Single Phase Pad mounted Transformer Dual Windings 12.47KV To 120V ANSI DOE 2

Electrical Protection & Connections

Primary connection: Dead-front design with cover-mount eyebolts; includes 200 A load-break elbows with inserts and (2) primary connections plus one standoff bracket for parked elbows
Primary overcurrent protection: Internally mounted partial-range current-limiting fuse and draw-out load-break oil temperature-sensitive link; bayonet fuse holder with drip shield
Primary arrestor mounting: Boss-nut provisions on H1 and H2 for lightning arrestor installation
Secondary connections: Live-front NEMA spade terminals (8-hole spade), externally clamped, three secondary connections; secondary overcurrent protection not included
Grounding: One grounding lug on primary and one on secondary
Metering, auxiliary controls and load-break switches: Not included

Specification

Single phase Pad mounted Transformer Specification
Rating	High voltage(kV)	No Load Loss	On load Loss	Height	Depth	Width	Oil Weight(kg)	Total Weight(kg)
(kVA)	High voltage(kV)	No Load Loss	On load Loss	(mm)	(mm)	(mm)	Oil Weight(kg)	Total Weight(kg)
15 kVA	34.5/19.92 13.8/8 13.2/7.6 12.47/7.2 or others	50	195	840	740	610	45	294
25 kVA		80	290	840	740	610	68	362
37.5 kVA		106	360	840	760	610	75	476
50 kVA		135	500	840	810	610	93	553
75 kVA		190	650	840	860	610	132	672
100 kVA		280	1010	910	1200	965	230	714
167 kVA		435	1530	1000	1200	965	265	913
250 kVA		550	2230	1250	1300	1430	325	1106

Single Phase Pad Mounted Transformers UL/cUL Ceritificate

100Kva Single Phase Pad mounted Transformer Dual Windings 12.47KV To 120V ANSI DOE 3

Production process

100Kva Single Phase Pad mounted Transformer Dual Windings 12.47KV To 120V ANSI DOE 4

100Kva Single Phase Pad mounted Transformer Dual Windings 12.47KV To 120V ANSI DOE 5

100Kva Single Phase Pad mounted Transformer Dual Windings 12.47KV To 120V ANSI DOE 6
