304 Stainless Steel Tank 10Kva Single Phase Pad mounted Transformer 13.8KV To 240V120V Power Distribution Transformer UL Listed

All Category

Three Phase Isolation Transformer

Three Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Industrial Control Transformer

Single Phase Control Transformer

Toroidal Isolation Transformer

Three Phase Dry Type Transformer

Three Phase Reactor

Mr. Steven

steven@winley-electric.com

86-18650108051

Contact Now

304 Stainless Steel Tank 10Kva Single Phase Pad mounted Transformer 13.8KV To 240V120V Power Distribution Transformer UL Listed

Brand Name:	WINLEY
Model Number:	ZGD-10/13.8
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL/cUL, ISO

Transformer Type:

Liquid Filled Pad Mounted

Capacity:

10KVA Or Customized

Primary Voltage:

13800Y/7968

Secondary Voltage:

120/240V

Cooling Class:

Tank Material:

304 Stainless Steel

Efficiency:

99.00%

Efficiency Standard(s):

Meets DOE 2016 Standards, Meets ANSI/IEEE Standards

Supply Ability:

1000set/month

Product Description

304 Stainless Steel Tank 10Kva Single Phase Pad mounted Transformer 13.8KV To 240V120V Power Distribution Transformer UL Listed

Overview

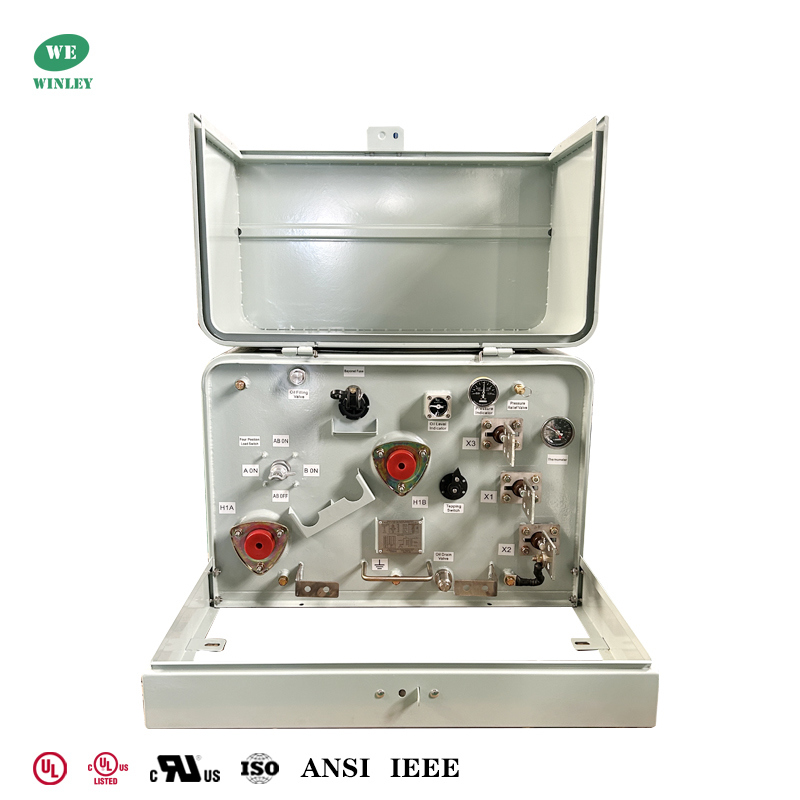

The 10 kVA Single‑Phase Pad‑Mounted Transformer with a 304 stainless steel tank is a compact, high‑performance, oil‑immersed distribution transformer engineered for outdoor pad‑mounted installation. Designed for reliable service in residential, commercial and institutional environments, this unit combines a durable 304 stainless steel enclosure with efficient copper windings and biodegradable natural ester insulating fluid for long service life, low maintenance, and high operational safety.

304 Stainless Steel Tank 10Kva Single Phase Pad mounted Transformer 13.8KV To 240V120V Power Distribution Transformer UL Listed 0

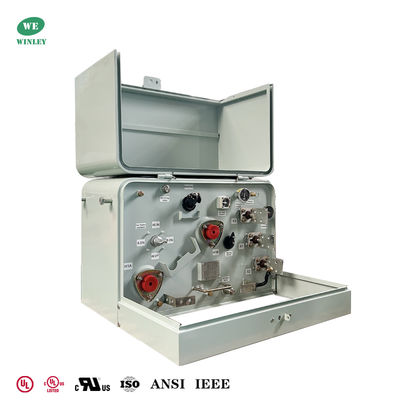

WINLEY’s single‑phase pad‑mounted distribution transformers are UL and cUL certified, designed to applicable ANSI, IEEE, NEMA, and DOE standards, and built for safe, reliable operation in underground electrical distribution networks.

304 Stainless Steel Tank 10Kva Single Phase Pad mounted Transformer 13.8KV To 240V120V Power Distribution Transformer UL Listed 1

Main Data

Transformer Type	Pad Mounted, Compartmental-Type
Transformer Feed Type	Loop Feed
Phase	Single Phase
Capacity	10 KVA
Vector Group	II6
Primary Voltage	13800Y/7968
Secondary Voltage	240/120V (L-N-L)
Frequency	60 Hz
Temperature Rise	65°C
Cooling Class	KNAN; Self-Cooled
Efficiency Standard(s)	Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
Winding Material	Copper
Ambient Temperature Rating	40°C
Sound Level	48 dBA
Tank Material	304 Stainless Steel
Cabinet Material	304 Stainless Steel
Base Platform Material	304 Stainless Steel

Advantages of 304 Stainless Steel Tank

Corrosion resistance: Excellent performance in coastal or industrial atmospheres, extending service life and reducing repainting or replacement costs.
Mechanical durability: Withstands impact, deformation and handling stresses during transport and field installation.
Improved sealing & leak prevention: Welded 304 SS construction provides robust seam integrity, lowering the risk of insulating fluid leaks.
Aesthetics & sustainability: Clean, low‑maintenance finish that is recyclable and suitable for visible public locations.

Technical drawings

304 Stainless Steel Tank 10Kva Single Phase Pad mounted Transformer 13.8KV To 240V120V Power Distribution Transformer UL Listed 2

Specification

Single phase Pad mounted Transformer Specification
Rating	High voltage(kV)	No Load Loss	On load Loss	Height	Depth	Width	Oil Weight(kg)	Total Weight(kg)
(kVA)	High voltage(kV)	No Load Loss	On load Loss	(mm)	(mm)	(mm)	Oil Weight(kg)	Total Weight(kg)
15 kVA	34.5/19.92 13.8/8 13.2/7.6 12.47/7.2 or others	50	195	840	740	610	45	294
25 kVA		80	290	840	740	610	68	362
37.5 kVA		106	360	840	760	610	75	476
50 kVA		135	500	840	810	610	93	553
75 kVA		190	650	840	860	610	132	672
100 kVA		280	1010	910	1200	965	230	714
167 kVA		435	1530	1000	1200	965	265	913
250 kVA		550	2230	1250	1300	1430	325	1106
