UL/cUL Listed 15Kva Single Phase Pad mounted Transformer  Step-Down 6600V to 120V CSA ANSI/ IEEE Standards

Brand Name: WINLEY
Model Number: ZGD-15/6.6
MOQ: 1unit
Price: $1000-$10000
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
UL/cUL, ISO
Type:
Pad Mounted
Capacity:
15Kva
Primary Voltage:
6600V
Secondary Voltage:
120V(L-N) ± 3%
Frequency:
100 Hz
Cooling Class:
ONAN; Self-Cooled
 Enclosure Rating:
NEMA 3R Weatherproof Wiring Cabinet, Sealed Tank
Efficiency Standard(s):
Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
Supply Ability:
1000set/month
Highlight:

UL listed single phase pad mounted transformer

,

15Kva step-down transformer 6600V to 120V

,

ANSI IEEE standard pad mounted transformer

Product Description

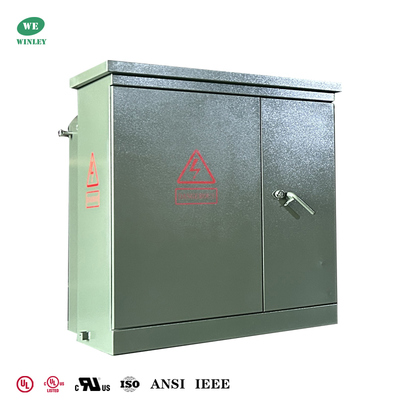

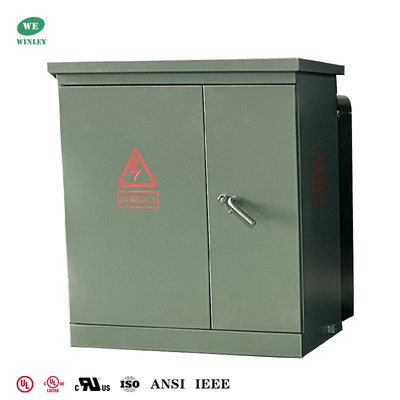

UL/cUL Listed 15Kva Single Phase Pad mounted Transformer Step-Down 6600V to 120V CSA ANSI/ IEEE Standards





This is 15 kVA Single phase pad-mounted transformer features a 6600 V delta primary and 120 V secondary, Designed for pad installation with bottom underground cable entry, it includes load‑break elbows, a 200 A load‑break switch, a 5‑position tap changer, HV and LV surge arresters, fused HV protection, and accessible front compartments with padlockable doors.

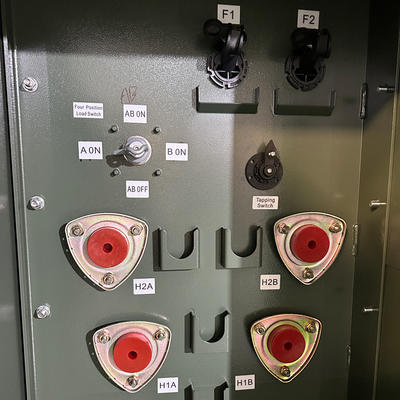

 UL/cUL Listed 15Kva Single Phase Pad mounted Transformer  Step-Down 6600V to 120V CSA ANSI/ IEEE Standards 0



The unit meets DOE/ANSI/IEEE/CSA standards, has ~98.5% efficiency, seismic and weatherproof NEMA 3R construction, and common maintenance features (drain/fill ports, gas sampler, analog gauges), making it suitable for reliable distribution network single‑phase service.

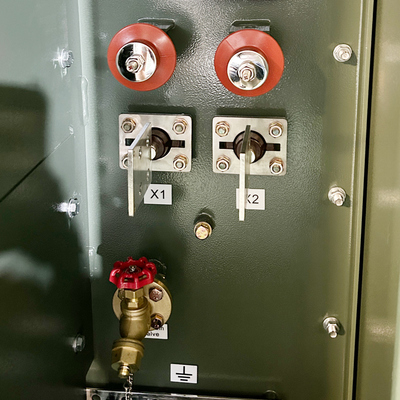

UL/cUL Listed 15Kva Single Phase Pad mounted Transformer  Step-Down 6600V to 120V CSA ANSI/ IEEE Standards 1

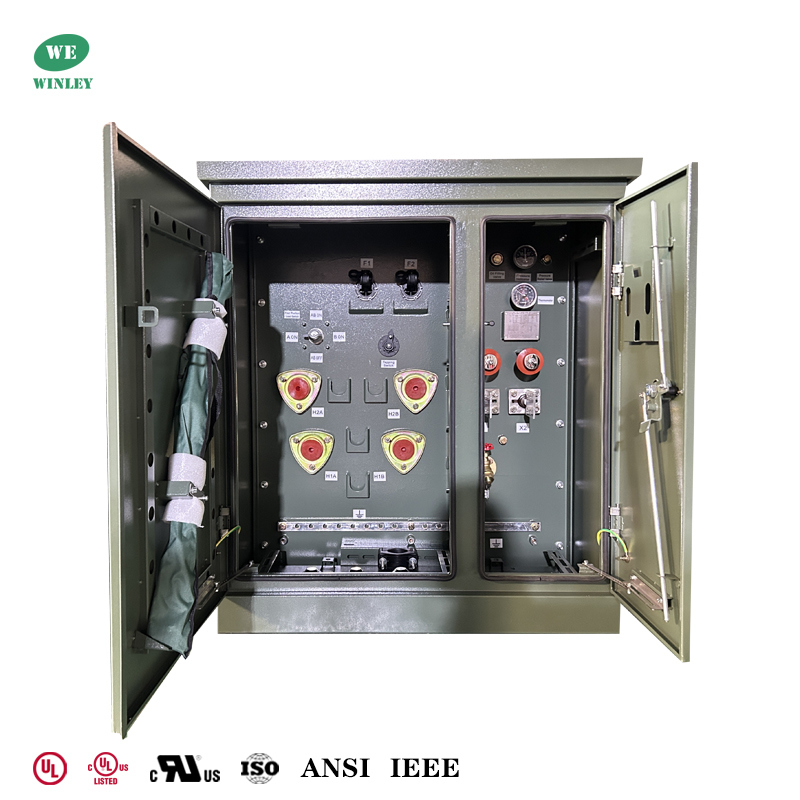

UL/cUL Listed 15Kva Single Phase Pad mounted Transformer  Step-Down 6600V to 120V CSA ANSI/ IEEE Standards 2   UL/cUL Listed 15Kva Single Phase Pad mounted Transformer  Step-Down 6600V to 120V CSA ANSI/ IEEE Standards 3



Why choose us



  • UL/cUL certified single‑phase transformers: WINLEY’s single‑phase units are UL/cUL certified, available in capacities from 10 to 333 kVA and primary voltages up to 34.5 kV.
  • Standards‑driven, high‑quality design: Products are engineered to comply with — and in many cases exceed — DOE 2016, IEEE, ANSI, CSA, IEC, and NEMA requirements.
  • Reliable supply and fast lead times: Monthly production exceeds 800 units, with expedited delivery available — typical lead time within 4 weeks.





UL/cUL Listed 15Kva Single Phase Pad mounted Transformer  Step-Down 6600V to 120V CSA ANSI/ IEEE Standards 4



Main data



Transformer Type Pad Mounted Ttransformer
Transformer Feed Type Loop Feed
Operation Step-Down
Phase Single Phase
Capacity 15 KVA
Vector Group II6
Primary Voltage 6600V
Secondary Voltage 120V
Frequency 100 Hz ± 5
Temperature Rise 65°C
Insulation Rating Class E (155°C)
Cooling Class ONAN; Self-Cooled
Efficiency Standard(s) Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards
Winding Material Copper
Ambient Temperature Rating 40°C
Ambient Operating Temperature Range -40°C to +40°C (-50°F to +104°F)
Sound Level 48 dBA
Elevation (Altitude) 3300ft (1000 meters) Above Sea Level
Core Material Grain Oriented Steel



Technical drawings



This 15 kVA Single phase pad mounted transformer compartmental liquid‑filled transformer features a sealed mineral‑oil (ONAN) tank with separate lockable HV and LV compartments, easy maintenance and reliable outdoor distribution performance.



UL/cUL Listed 15Kva Single Phase Pad mounted Transformer  Step-Down 6600V to 120V CSA ANSI/ IEEE Standards 5



Ratings
  • ​Meets/Exceeds DOE 2016 Efficiency Ratings
  • Meets/Exceeds CSA Efficiency Ratings
  • Complies with ANSI / IEEE C57.12.00
  • Complies with ANSI / IEEE C57 12.28
  • Complies with ANSI / IEEE C57 12.29
  • Complies with ANSI / IEEE C57 12.34
  • Complies with ANSI / IEEE C57 12.35
  • Complies with ANSI / IEEE C57.12.70
  • Complies with ANSI / IEEE C57.12.110
  • Complies with ANSI / IEEE C57.12.131
  • Complies with ANSI / IEEE C62.11
  • Complies with ANSI / IEEE C62.22
  • Complies with ANSI / IEEE 386
  • Complies with ANSI / IEEE C2
  • Complies with ANSI / IEEE C37.47
  • Complies with ANSI Z535.4
  • Complies with ASTM D3487
  • Complies with ASTM D6871
  • Complies with NEMA 260-1996
  • Complies with 10 CFR Part 431
  • Complies with CSA C2.1-06
  • Complies with CSA C50
  • Complies with CSA C88
  • Complies with CSA C88.1
  • Complies with CSA C88-16
  • Complies with CSA C227.4
  • Complies with CSA C227.5
  • Complies with CSA C802-3
  • Complies with CSA C802.1



Specification



Single phase Pad mounted Transformer Specification
Rating High voltage(kV) No Load Loss On load Loss Height Depth Width Oil Weight(kg) Total Weight(kg)
(kVA) (mm) (mm) (mm)
15 kVA 34.5/19.92
13.8/8
13.2/7.6
12.47/7.2
or others		 50 195 840 740 610 45 294
25 kVA 80 290 840 740 610 68 362
37.5 kVA 106 360 840 760 610 75 476
50 kVA 135 500 840 810 610 93 553
75 kVA 190 650 840 860 610 132 672
100 kVA 280 1010 910 1200 965 230 714
167 kVA 435 1530 1000 1200 965 265 913
250 kVA 550 2230 1250 1300 1430 325 1106



Production process



UL/cUL Listed 15Kva Single Phase Pad mounted Transformer  Step-Down 6600V to 120V CSA ANSI/ IEEE Standards 6



UL/cUL Listed 15Kva Single Phase Pad mounted Transformer  Step-Down 6600V to 120V CSA ANSI/ IEEE Standards 7

FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
