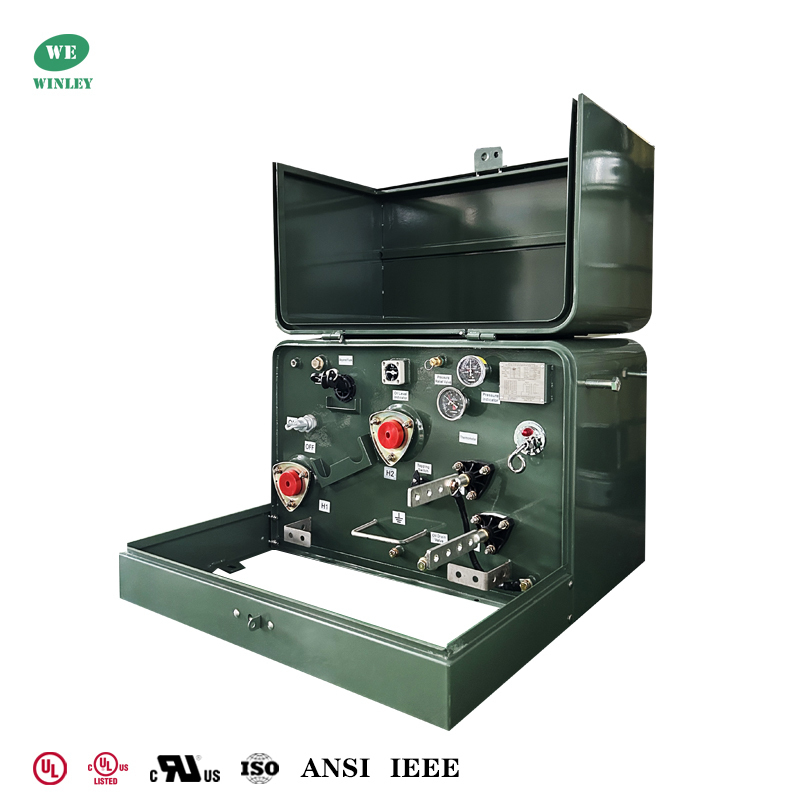

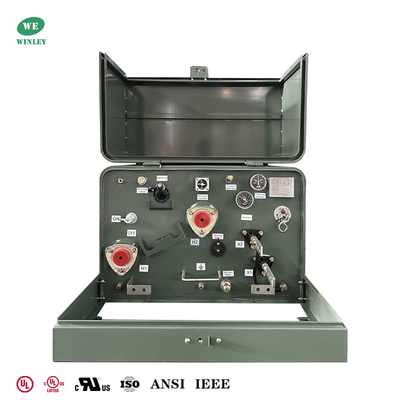

50Kva Single Phase Pad Mounted Transformers Power Distribution Loop Feed Additive Polarity 240V To 480V UL Listed

Brand Name:	WINLEY
Model Number:	ZGD-50/0.24
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL/cUL, ISO

Transformer Type:

Pad Mounted, Compartmental-Type II

Capacity:

50Kva Or Customized

Primary Voltage:

Secondary Voltage:

Cooling Method:

KNAN; Self-Cooled

Frequency:

50Hz Or 60 Hz

Winding Material:

Copper/Aluminium

Efficiency Standard(s):

Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards

Supply Ability:

1000set/month

Product Description

50Kva Single Phase Pad Mounted Transformers Power Distribution Loop Feed Additive Polarity 240V To 480V UL Listed

Single-phase pad-mounted transformers are compact, self-contained electrical devices primarily used in residential and light commercial settings. Their primary application is to step down the high-voltage electricity supplied by the utility company to a lower voltage suitable for home or small business use.

50Kva Single Phase Pad Mounted Transformers Power Distribution Loop Feed Additive Polarity 240V To 480V UL Listed 0

Why choose us

1. WINLEY single-phase transformer has obtained UL/cUL certification, with a capacity of 10-333KVA and a voltage of up to 34.5KV
2. The products are designed according to multiple standards and meet or even exceed DOE 2016, IEEE, ANSI, CSA, IEC, NEMA and other standards.
3. The monthly delivery capacity is over 800 units, and fast delivery can be achieved within 4 weeks.

50Kva Single Phase Pad Mounted Transformers Power Distribution Loop Feed Additive Polarity 240V To 480V UL Listed 1

Single Phase Pad Mounted Transformer Main data

Transformer Configuration	Liquid Filled Pad Mounted
Transformer Feed Type	Loop Feed
Polarity	Additive
Phase	Single Phase
Capacity	75 KVA
Vector Group	II6
Primary Voltage	240V
Secondary Voltage	480V
Frequency	60 Hz
Temperature Rise	65°C
Insulation Rating	Class E Insulation - 120°C, 248°F
Cooling Class	KNAN; Self-Cooled
Efficiency Standard(s)	Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation)	K-1 (Standard)
Insulation Fluid	FR-3 Insulating Fluid - Non-PCB Fluid
Winding Material	Copper
Ambient Temperature Rating	40°C
Ambient Operating Temperature Range	-40°C to +40°C (-50°F to +104°F)
Sound Level	48 dBA

Standard Features

• 4 position loadbreak

• Multiple voltages or taps

• Externally-operable multiple voltage or tap changer switches for safe operation

• Stainless steel tank, tank bottom, sill, door, and/or hardware

• Various spades and terminals available for secondary bushings

• High-voltage bushing inserts

• Ground connectors

• One piece high-voltage bushings

• Envirotemp™ FR3™ fluid

• Loadbreak switches

• Drain/sampling valve

• Pressure vacuum gauge

• Liquid level gauge

• Temperature gauge

50Kva Single Phase Pad Mounted Transformers Power Distribution Loop Feed Additive Polarity 240V To 480V UL Listed 3

Single Phase Pad Mounted Transformer Drawing

50Kva Single Phase Pad Mounted Transformers Power Distribution Loop Feed Additive Polarity 240V To 480V UL Listed 4

Specification

Single phase Pad mounted Transformer Specification
Rating	High voltage(kV)	No Load Loss	On load Loss	Height	Depth	Width	Oil Weight(kg)	Total Weight(kg)
(kVA)	High voltage(kV)	No Load Loss	On load Loss	(mm)	(mm)	(mm)	Oil Weight(kg)	Total Weight(kg)
15 kVA	34.5/19.92 13.8/8 13.2/7.6 12.47/7.2 or others	50	195	840	740	610	45	294
25 kVA		80	290	840	740	610	68	362
37.5 kVA		106	360	840	760	610	75	476
50 kVA		135	500	840	810	610	93	553
75 kVA		190	650	840	860	610	132	672
100 kVA		280	1010	910	1200	965	230	714
167 kVA		435	1530	1000	1200	965	265	913
250 kVA		550	2230	1250	1300	1430	325	1106

Production process

50Kva Single Phase Pad Mounted Transformers Power Distribution Loop Feed Additive Polarity 240V To 480V UL Listed 5

50Kva Single Phase Pad Mounted Transformers Power Distribution Loop Feed Additive Polarity 240V To 480V UL Listed 6

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
