UL certified Single-Phase Pad-Mounted Transformers for Power Distribution 100Kva 12.47KV To 120V

Brand Name:	WINLEY
Model Number:	ZGD-100/12.47
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL/cUL, ISO

Transformer Type:

Liquid Filled Pad Mounted

Capacity:

100Kva

Primary Voltage:

12470V Or Customized

Secondary Voltage:

240/120V Or Customized

Cooling Method:

ONAN/KNAN

Feed Type:

Loop Feed

UL Certificate Number:

UL-US-2564931-0； UL-CA-2548224-0

Efficiency Standard(s):

Meets DOE 2016 Standards, Meets ANSI/IEEE Standards

Supply Ability:

1000set/month

Product Description

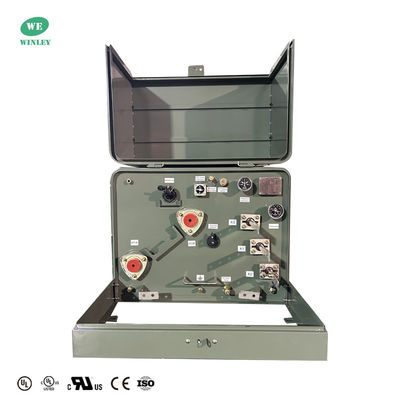

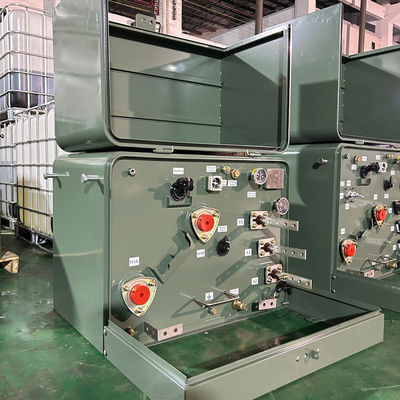

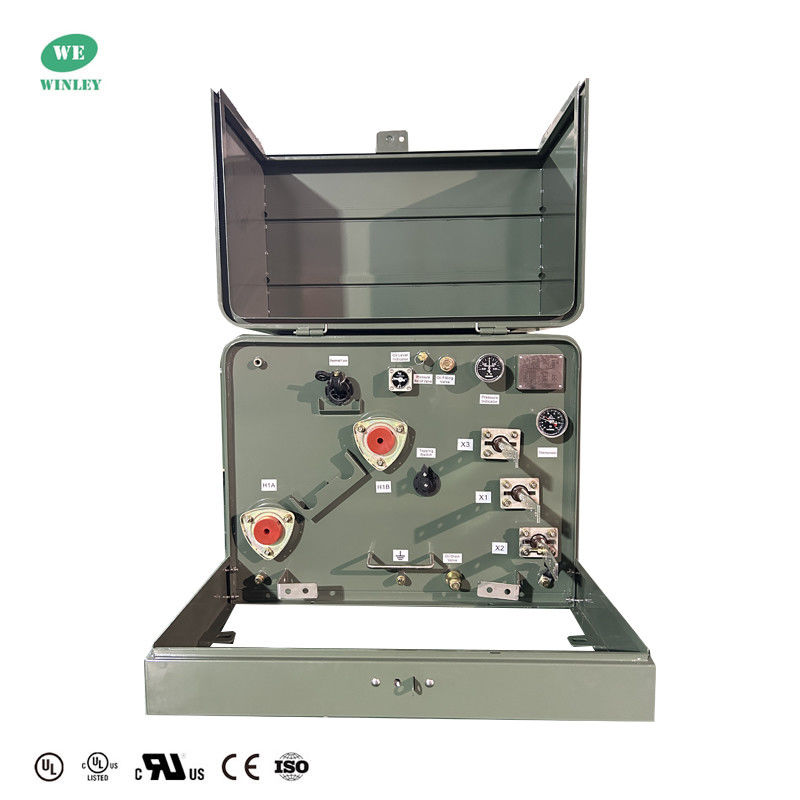

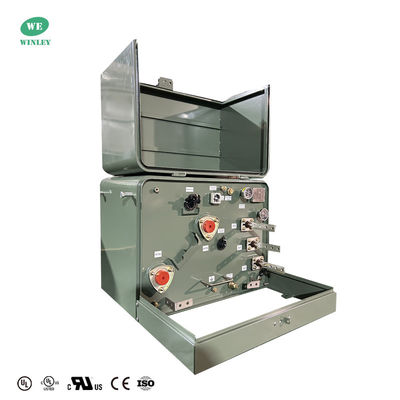

Single-Phase Pad-Mounted Transformers for Power Distribution 100Kva 12.47KV To 120V

WINLEY's single-phase pad-mounted oil-immersed distribution transformers are a pinnacle of power and reliability, engineered with environmental considerations at their core. These versatile transformers are built to perform seamlessly in both indoor and outdoor settings, providing robust protection against critical equipment malfunctions and ensuring uninterrupted service.

Single-Phase Pad-Mounted Transformers UL/cUL Certificate

UL certified Single-Phase Pad-Mounted Transformers for Power Distribution 100Kva 12.47KV To 120V 0

Single Phase Pad Mounted Transformer Main data

Phase	Single Phase
Capacity	100 KVA
Vector Group	II6
Primary Voltage	12470GrdY/7200
Secondary Voltage	240/120V
Frequency	60 Hz
Temperature Rise	65°C
Cooling Class	KNAN; Self-Cooled
Efficiency Standard(s)	Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
Winding Material	Copper
Ambient Temperature Rating	40°C
Efficiency	99.10%
No Load Loss (in watts)*	+/- 263W
Load Loss (in watts)*	+/- 1,085W

Single Phase Pad Mounted Transformer Standard Features

HV Bushings*2
LV Bushings*3
Tap Changer
Bayonet Fuse
ELSP Fuse*1ELSP
Oil Level Gauge
Pressure Relief Valve
Thermomter
Fill Plug
Drain Valve
Ground Strap Copper
Grounding Spade Terminal*2

UL certified Single-Phase Pad-Mounted Transformers for Power Distribution 100Kva 12.47KV To 120V 2

Single Phase Pad Mounted Transformer Drawing

UL certified Single-Phase Pad-Mounted Transformers for Power Distribution 100Kva 12.47KV To 120V 3

Routine test of WINLEY single phase pad mounted transformer for the following items:

The ratio on each connection;
Polarity;
No-load losses at 105% rated voltage and corrected to 85 °C;
Exciting current at 105% rated voltage;
Load losses and impedance at the rated current
Applied voltage;
Induced voltage;
Transformer tank leak-detection test;

Specification

Single phase Pad mounted Transformer Specification
Rating	High voltage(kV)	No Load Loss	On load Loss	Height	Depth	Width	Oil Weight(kg)	Total Weight(kg)
(kVA)	High voltage(kV)	No Load Loss	On load Loss	(mm)	(mm)	(mm)	Oil Weight(kg)	Total Weight(kg)
15 kVA	34.5/19.92 13.8/8 13.2/7.6 12.47/7.2 or others	50	195	840	740	610	45	294
25 kVA		80	290	840	740	610	68	362
37.5 kVA		106	360	840	760	610	75	476
50 kVA		135	500	840	810	610	93	553
75 kVA		190	650	840	860	610	132	672
100 kVA		280	1010	910	1200	965	230	714
167 kVA		435	1530	1000	1200	965	265	913
250 kVA		550	2230	1250	1300	1430	325	1106

Production process

UL certified Single-Phase Pad-Mounted Transformers for Power Distribution 100Kva 12.47KV To 120V 4

UL certified Single-Phase Pad-Mounted Transformers for Power Distribution 100Kva 12.47KV To 120V 5

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
