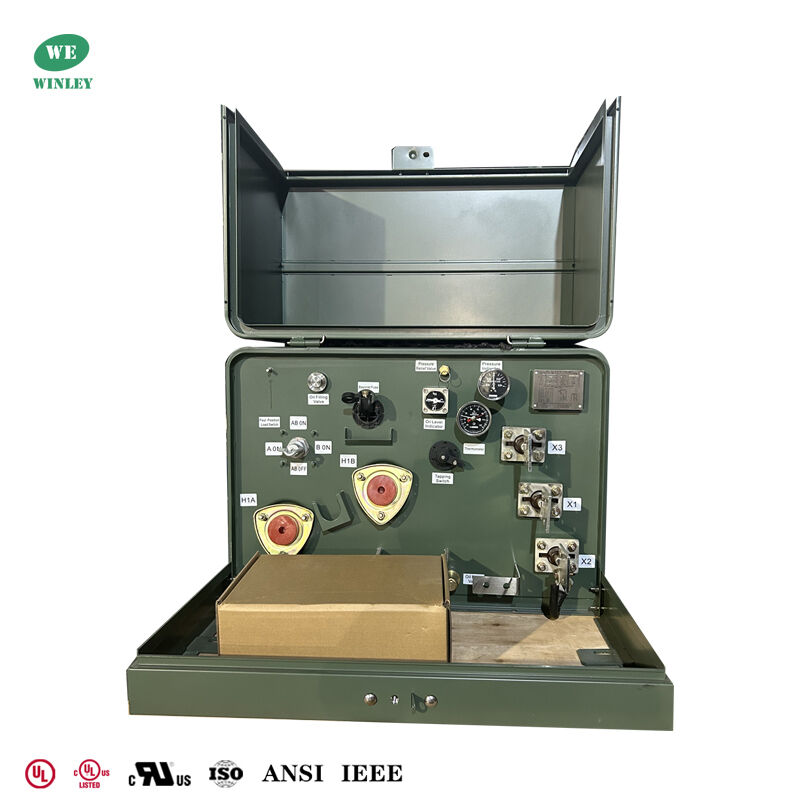

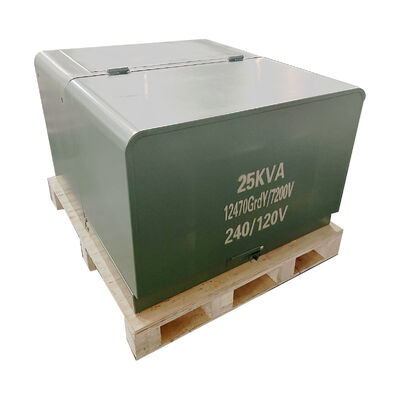

Single Phase Pad Mounted Transformer 25kva 12.47kv To 120v Oil Filled Distribution Transformers
| Brand Name: | WINLEY |
| Model Number: | ZGD-25/12.47 |
| MOQ: | 1unit |
| Price: | $1000-$10000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T |
25kva single phase transformer
,oil filled distribution transformer
,12.47kv to 120v transformer
Single Phase Pad Mounted Transformer 25kva 12.47kv To 120v Oil Filled Distribution Transformers
WINLEY Electric’s single-phase pad-mounted oil-immersed distribution transformers are high-performance, highly dependable, and engineered with environmental sustainability in mind. Thanks to lower operating costs and reduced heat output, they stand out as the optimal choice for a broad spectrum of applications.
Why choose us
1. WINLEY single-phase transformer has obtained UL/cUL certification, with a capacity of 10-333KVA and a voltage of up to 34.5KV
2. The products are designed according to multiple standards and meet or even exceed DOE 2016, IEEE, ANSI, CSA, IEC, NEMA and other standards.
3. The monthly delivery capacity is over 800 units, and fast delivery can be achieved within 4 weeks.
Main data
| Transformer Type: | Liquid Filled Pad Mounted |
| Phase: | Single Phase |
| Transformer Feed Type: | Loop Feed |
| Capacity: | 25 KVA |
| Vector Group: | II6 |
| Primary Voltage: | 12470GrdY/7200 |
| Secondary Voltage: | 120/240 V (L-N-L) |
| Secondary Phasor: | Dual Windings, Single Phase |
| Secondary BIL: | 30 KV |
| Frequency: | 60 Hz |
| Temperature Rise: | 65°C |
| Insulation Rating: | E |
| Cooling Class: | ONAN; Self-Cooled |
| Impedance: | 1.4-2.4% Typical |
| Efficiency Standard(s): | Meets DOE 2016 Standards, Meets ANSI/IEEE Standards |
| K-Factor Rating (Harmonic Mitigation): | K-1 (Standard) |
| Winding Material: | Copper |
| Ambient Temperature Rating: | 40°C |
| Core Material: | Grain Oriented Steel |
| Dimensions*: | 33.7''-W x 37.9''-D x 25.2''-H |
| Total Weight (Liquid Filled)*: | 1049.38 lb |
Drawing
Standard Features
- 60 Hz Frequency
- 65°C Temperature Rise
- High efficiency design
- Silicon steel core
- Primary connection: 200A dead front wells & inserts
- Secondary Connection: 4-hole Spades
- Bayonet fusing
- Pressure relief valve
- Mineral oil filled
Ratings
- Meets/Exceeds DOE 2016 Efficiency Ratings
- Meets/Exceeds CSA Efficiency Ratings
- Complies with ANSI / IEEE C57.12.00
- Complies with ANSI / IEEE C57.12.21
- Complies with ANSI / IEEE C57.12.25
- Complies with ANSI / IEEE C57 12.28
- Complies with ANSI / IEEE C57 12.29
- Complies with ANSI / IEEE C57 12.35
- Complies with ANSI / IEEE C57 12.38
- Complies with ANSI / IEEE C57.12.70
- Complies with ANSI / IEEE C57.12.110
- Complies with ANSI / IEEE C57.12.131
- Complies with ANSI / IEEE C62.11
- Complies with ANSI / IEEE C62.22
- Complies with ANSI / IEEE 386
- Complies with ANSI / IEEE C2
- Complies with ANSI / IEEE C37.47
- Complies with ANSI Z535.4
- Complies with ASTM D3487
- Complies with ASTM D6871
- Complies with NEMA 260-1996
- Complies with 10 CFR Part 431
- Complies with CSA C2.1-06
- Complies with CSA C50
- Complies with CSA C88
- Complies with CSA C88.1
- Complies with CSA C88-16
- Complies with CSA C227.3
- Complies with CSA C802.1
- Complies with CSA C802.2
Specification
| Single phase Pad mounted Transformer Specification | ||||||||
| Rating | High voltage(kV) | No Load Loss | On load Loss | Height | Depth | Width | Oil Weight(kg) | Total Weight(kg) |
| (kVA) | (mm) | (mm) | (mm) | |||||
| 15 kVA | 34.5/19.92 13.8/8 13.2/7.6 12.47/7.2 or others |
50 | 195 | 840 | 740 | 610 | 45 | 294 |
| 25 kVA | 80 | 290 | 840 | 740 | 610 | 68 | 362 | |
| 37.5 kVA | 106 | 360 | 840 | 760 | 610 | 75 | 476 | |
| 50 kVA | 135 | 500 | 840 | 810 | 610 | 93 | 553 | |
| 75 kVA | 190 | 650 | 840 | 860 | 610 | 132 | 672 | |
| 100 kVA | 280 | 1010 | 910 | 1200 | 965 | 230 | 714 | |
| 167 kVA | 435 | 1530 | 1000 | 1200 | 965 | 265 | 913 | |
| 250 kVA | 550 | 2230 | 1250 | 1300 | 1430 | 325 | 1106 | |
