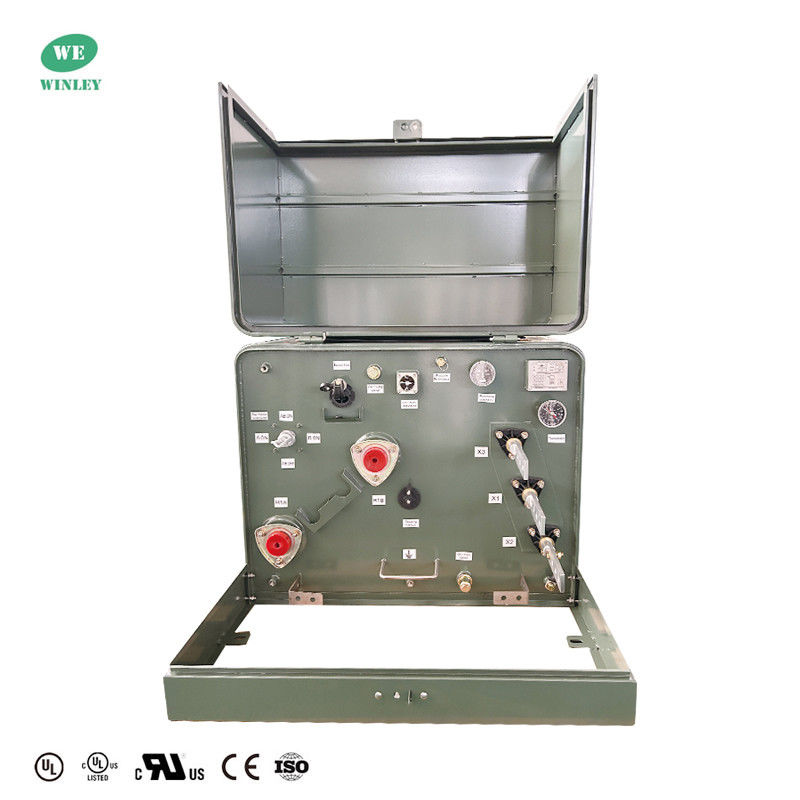

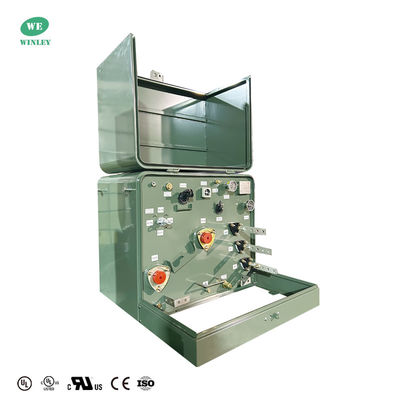

UL Listed 167kVA Single Phase Pad Mounted Transformer 13800V To 120V Oil Immersed Distribution Transformer ANSI IEEE Standards

Brand Name:	WINLEY
Model Number:	ZGD-25/15
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL/cUL,CE,ISO

Transformer Type:

Liquid Filled Pad Mounted

Feed Type:

Loop Feed

Capacity:

167Kva

Primary Voltage:

13800GrdY/7968

Secondary Voltage:

120/240

Winding Material:

Copper

Efficiency:

99.10%

UL Certificate Number:

UL-US-2564931-0 ;UL-CA-2548224-0

Supply Ability:

1000set/month

Product Description

UL/cUL Listed 167kVA Single Phase Pad Mounted Transformer 13800V To 120V Oil Immersed Distribution Transformer ANSI IEEE Standards

A single-phase pad-mounted transformer, also known as a residential transformer, is a compact and enclosed structure designed for outdoor installation. The transformer is a sealed structure, and its high and low-voltage facilities are installed side by side in the cable entrance compartment. The transformer tank has a protective flap cover. The cable entrance compartment uses a padlock in accordance with ANSI C57.12.28 to lock the unit. The residential transformer is tamper-resistant and weather-resistant.WINLEY's Single phase pad mounted transformer fully complies with and exceeds ANSI, DOE, IEEE, and CSA standards. With UL/cUL, CSA listing.

UL Listed 167kVA Single Phase Pad Mounted Transformer 13800V To 120V Oil Immersed Distribution Transformer ANSI IEEE Standards 0

Main data

Phase	Single Phase
Transformer Feed Type	Loop Feed
Capacity	167 KVA
Vector Group	II6
Primary Voltage	13800GrdY/7968
Secondary Voltage	120/240
Frequency	60 Hz
Temperature Rise	65°C
Insulation Rating	Class E Insulation
Cooling Class	ONAN; Self-Cooled
Efficiency Standard(s)	Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
Winding Material	Copper
Ambient Temperature Rating	40°C
Sound Level	55 dBA
Elevation (Altitude)	3300ft (1000 meters) Above Sea Level or Below
Core Material	Grain Oriented Steel
Efficiency	99.10%
No Load Loss (in watts)*	+/- 450W
Load Loss (in watts)*	+/- 1,825W
Total Load Loss (in watts)*	+/- 2,288W

Drawing

UL Listed 167kVA Single Phase Pad Mounted Transformer 13800V To 120V Oil Immersed Distribution Transformer ANSI IEEE Standards 2

Performance Characteristic

• Meet or exceeds ANSI®, IEEE® and NEMA® standards
• Meets DOE Energy Efficiency Standard 10 CFR Part 431 for distribution transformers
• Tank coating exceeds IEEE Std C57.12.28™-2005 and IEEE Std C57.12.29™-2005 standards (stainless steel units only)
• Full compliance with IEEE Std C57.12.28™-2005 standard enclosure integrity requirements
• Laser engraved nameplate
• Recessed stainless steel lifting provisions
• Tank grounding provisions
• Automatic pressure relief device
• Electrical grade mineral oil
• Hinged door with stainless steel hinge pins and barrels
• Floating lock pocket for easy alignment
• Captive stainless steel pentahead door locking bolt
• Oil fill and drain provisions
• Removable sill
• Welded domed tank cover
• High-voltage bushing wells - 200 A

UL Listed 167kVA Single Phase Pad Mounted Transformer 13800V To 120V Oil Immersed Distribution Transformer ANSI IEEE Standards 3

Specification

Single phase Pad mounted Transformer Specification
Rating	High voltage(kV)	No Load Loss	On load Loss	Height	Depth	Width	Oil Weight(kg)	Total Weight(kg)
(kVA)	High voltage(kV)	No Load Loss	On load Loss	(mm)	(mm)	(mm)	Oil Weight(kg)	Total Weight(kg)
15 kVA	34.5/19.92 13.8/8 13.2/7.6 12.47/7.2 or others	50	195	840	740	610	45	294
25 kVA		80	290	840	740	610	68	362
37.5 kVA		106	360	840	760	610	75	476
50 kVA		135	500	840	810	610	93	553
75 kVA		190	650	840	860	610	132	672
100 kVA		280	1010	910	1200	965	230	714
167 kVA		435	1530	1000	1200	965	265	913
250 kVA		550	2230	1250	1300	1430	325	1106

Ratings

Meets/Exceeds DOE 2016 Efficiency Ratings
Complies with ANSI / IEEE #C57.12.00
Complies with ANSI / IEEE #C57.12.25
Complies with ANSI / IEEE C57 12.28
Complies with ANSI / IEEE C57 12.38
Complies with ANSI / IEEE C57.12.70
Complies with ASTM D3487

Production process

UL Listed 167kVA Single Phase Pad Mounted Transformer 13800V To 120V Oil Immersed Distribution Transformer ANSI IEEE Standards 4

UL Listed 167kVA Single Phase Pad Mounted Transformer 13800V To 120V Oil Immersed Distribution Transformer ANSI IEEE Standards 5

UL Listed 167kVA Single Phase Pad Mounted Transformer 13800V To 120V Oil Immersed Distribution Transformer ANSI IEEE Standards 6

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
