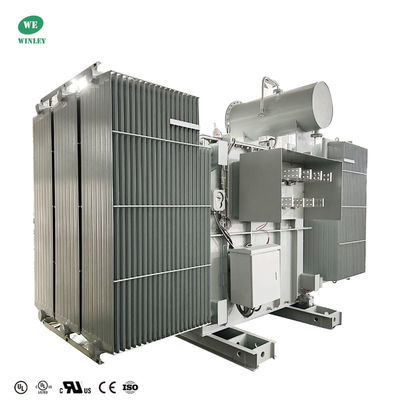

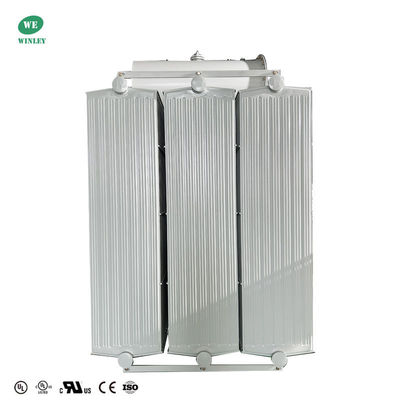

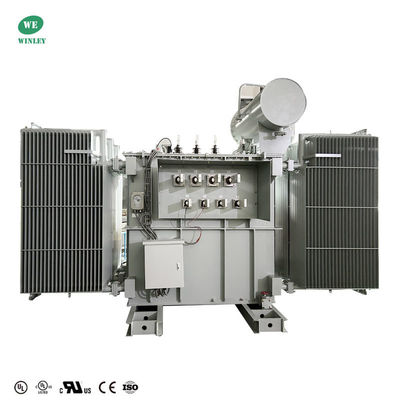

6500Kva Substation Power Transformer
| Brand Name: | WINLEY |
| Model Number: | S-6500/13.8 |
| MOQ: | 1unit |
| Price: | $1000-$150000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T |
Detail Information
Place of Origin:
CHINA
Certification:
CE,ISO
Type:
Substation Transformer
Operation:
Step-Up
Capacity:
6500KVA
Primary Voltage:
480Y/277-480Y/277
Secondary Voltage:
13800V
Vector Group:
Dyn11,yn11
Cooling Class:
ONAN; Self-Cooled
Standard:
IEC60076
Delivery Time:
30days
Supply Ability:
500set/month
Highlight:
6500KVA Substation Transformer
,480V to 13800V Power Transformer
,Dyn11
Product Description
6500 Kva Substation Power Transformer Step-Up 480V To 13800V Double-Split Solar Transformers
A Solar Double-Split Step-Up Transformer is a specialized transformer tailored for solar power systems. It uses dual split windings to efficiently raise the low-voltage output from solar panels (or an inverter) to a higher voltage suitable for grid connection or energy storage. The transformer splits the input across two separate windings and steps it up while preserving electrical isolation, thereby enhancing both efficiency and safety.

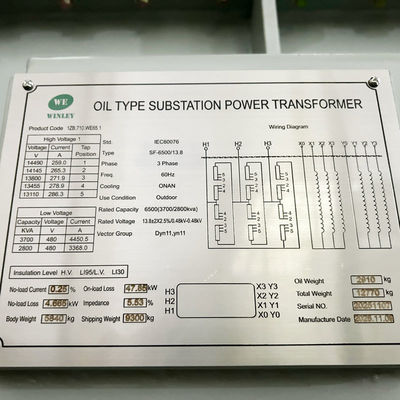

Substation Transformer Main Data
| No. | Particulars | Unit | Specification |
|---|---|---|---|
| 1 | Type | ~ | oil immersed, conservator type |
| 2 | Rated power | kVA | 6500 |
| 3 | Power 1 | kVA | 3700KVA, Max. current 6000A |
| 4 | Power 2 | kVA | 2800KVA, Max. current 4500A |
| 5 | No. of Phase | ~ | 3 |
| 6 | Primary voltage | V | 480Y/277-480Y/277 |
| 7 | Primary connection 1 | ~ | (4) 16-hole spade |
| 8 | Primary connection 2 | ~ | (4) 12-hole spade |
| 9 | Secondary voltage | V | 13800 |
| 10 | Secondary connection | ~ | (3) 15kV Porcelain bushing |
| 11 | Tapping type | ~ | off circuit |
| 12 | Tapping range | % | ±2*2.5% |
| 13 | Cooling method | ~ | ONAN |
| 14 | Rated frequency | Hz | 60 |
| 15 | Vector group | ~ | Dyn11,yn11 |
| 16 | Insulation class | ~ | A |
| 17 | Ambiant temperature | ℃ | from -10 to 40 |
| 18 | Temperature rise | K | 65 |
Substation Power Transformer Drawing
Features of Double-Split Transformers
- Improved thermal distribution - Splitting the core and winding into two symmetric halves evens out heat generation, reducing hot spots and improving cooling—important for reliable operation in high-temperature PV environments.
- Better parallel operation - Each half can run independently or together, enabling flexible load sharing and allowing the transformer to keep operating if one section is offline, increasing redundancy and availability.
- Easier transport and installation - Smaller, lighter components are easier to move to remote or mountainous sites, and on-site assembly is simpler—especially for prefabricated or skid-mounted stations.
- Space-saving and modular - The split design supports compact layouts (parallel or L-shaped), making it well suited for space-constrained, modular substations.
- Lower electromagnetic interference (EMI) - Balanced magnetic flux and current between the two halves reduce electromagnetic noise, aiding compliance with EMC requirements.
- Maintenance flexibility - One side can sometimes be taken offline for inspection or partial maintenance without stopping power delivery—valuable for critical sites like data centers or renewable hubs.
Application
Large photovoltaic power plants use 500 kW as the basic generation unit, and 500 kW inverters are the market standard. Connecting the inverter to the prefabricated (box-type) substation is a critical step in the PV system, so the design must balance cost control with technical soundness. The double-split transformer therefore offers an ideal voltage-boosting solution.
PRODUCT SPECIFICATION
| kVA | HV | LV | Width(mm) | Length(mm) | Height(mm) |
|---|---|---|---|---|---|
| 315kVA | 11000V | 400V | 800 | 696 | 1336 |
| 500kVA | 27600V | 480GrdY/277V | 1730 | 2300 | 1510 |
| 500kVA | 11000V | 415V | 1700 | 1700 | 1650 |
| 750kVA | 11000V | 433V | 1850 | 1845 | 1465 |
| 1000kVA | 14400V | 415/240V | 1085 | 1860 | 1570 |
| 1200kVA | 13800V | 240V | 2450 | 1850 | 1820 |
| 1500kVA | 24940V | 600V | 1800 | 1880 | 1895 |
| 2000kVA | 7200V | 600GrdY/346 | 1766 | 2680 | 1982 |
| 2000kVA | 44000V | 600V | 1260 | 2090 | 1700 |
| 2500kVA | 24940V | 480GrdY/277V | 2400 | 2200 | 2060 |
| 3000kVA | 11000V | 415V | 1600 | 2330 | 1920 |
| 3000kVA | 22800V | 415/240V | 2130 | 3500 | 1910 |
| 3750kVA | 44000V | 600V | 2240 | 2650 | 2700 |
| 4000kVA | 33kV | 600Y/347 | 2150 | 3250 | 2290 |
| 5000kVA | 34500V | 7200V | 3780 | 1850 | 3450 |
| 5000kVA | 34500V | 4160V | 2799 | 2400 | 2938 |
| 6300kVA | 35000V | 400V | 3520 | 2820 | 3470 |
| 6800kVA | 34500V | 800V | 3400 | 2670 | 3400 |
| 7500kVA | 27600Y | 4160V | 3350 | 3290 | 2270 |
