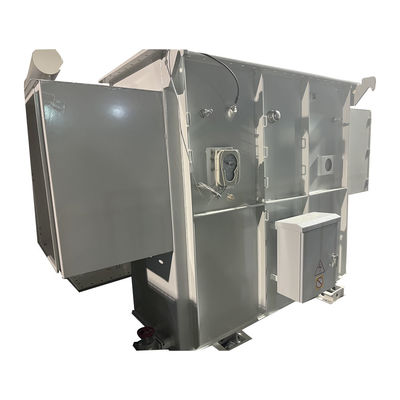

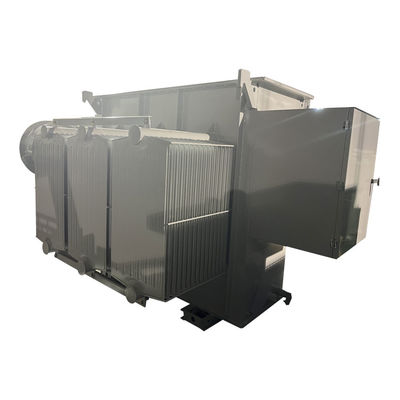

3000KVA Three Phase Oil Type Transformer 22800V To 4160V KNAF

Brand Name: WINLEY
Model Number: S-3500
MOQ: 1unit
Price: $1000-$150000
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ISO
Rated Capacity:
3000/3500
Cooling Method:
KNAN/KNAF
Temperature Rise:
65/60 (winding/top Oil)
Frequency:
60Hz
Impedance Voltage:
6.5%
Winding Material:
Aluminum / Copper
Primary Voltage:
22860Y/13200
Secondary Voltage:
4160Y/2400
Supply Ability:
1000set/month
Highlight:

KNAF Oil Type Transformer

,

4160V Oil Type Transformer

,

3000KVA Three Phase Transformer

Product Description

3000KVA Three Phase Oil Type Transformer 22800V To 4160V KNAF





Feature

1) High and low voltage circular copper and aluminum coils manufactured with hearth, copper foil, aluminum and magnet wire.
2) High voltage shunt changer, without load with 5 or 6 positions.
3) Insulating liquid, inhibited or uninhibited mineral oil free of PCBs or other
high flash point, low freezing point type of liquid such as: envirotemp (FR3), silicone, betafluid.
4) Tank made of shot-blasted steel plate, painted with primer and finish,epoxy or polyurethane.



Technical Specification



3000KVA Three Phase Oil Type Transformer 22800V To 4160V KNAF 0



3000KVA Three Phase Oil Type Transformer 22800V To 4160V KNAF 1



Transformer Accessories



3000KVA Three Phase Oil Type Transformer 22800V To 4160V KNAF 2



Production process



3000KVA Three Phase Oil Type Transformer 22800V To 4160V KNAF 3



3000KVA Three Phase Oil Type Transformer 22800V To 4160V KNAF 43000KVA Three Phase Oil Type Transformer 22800V To 4160V KNAF 53000KVA Three Phase Oil Type Transformer 22800V To 4160V KNAF 6



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
