| Brand Name: | WINLEY |
| Model Number: | 5000Kva |
| MOQ: | 1unit |
| Price: | $1000-$150000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T |
Features

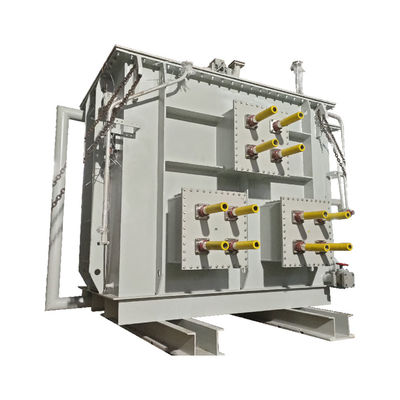

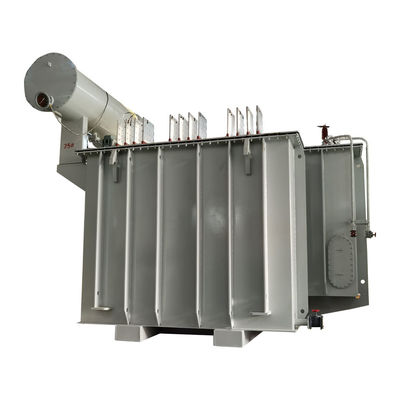

1) The iron core of the electric furnace transformer is made of high-quality oriented silicon steel sheet, which is processed by automatic cutting line.
2) It is manufactured with 45 degree full oblique seam, non-punched, non-lattice glass adhesive tape binding process.
3) The coil adopts the latest international main longitudinal insulation structure, and the structure and insulation of the winding are reasonably selected to ensure that the winding has sufficient mechanical strength.
4) It has the characteristics of strong short-circuit capacity, strong overload capacity, high efficiency, low loss, safety and reliability.
Main usage
Metallurgical iudustry: melting alloy steel and ferroalloy
Chemical industry: production of yellow phosphorus, calcium carbide, synthetic resin
Machinery industry: cast steel, cast iron, alloy melting
Specification
| Capacity (kva) |
Voltage Combination(kV) | Connection on symbol | Loss | ShortCircuit Impendence |
|||
| High Voltage (kv) |
Series | Low Voltage (v) |
No-load loss | on-load loss | |||
| 3150 | 6 | 5 | 100~180 | Dd0 | 6.2 | 36 | 5 |
| 4000 | 10 | 5 | 110~200 | 7.5 | 45 | 5 | |
| 5000 | 10 | 5 | 120~240 | 9 | 56 | 6 | |
| 6300 | 10 | 7 | 140~260 | 11 | 68 | 6 | |
| 8000 | 10 | 7 | 150~270 | 13.2 | 80 | 6 | |
| 10000 | 35 | 9 | 150~280 | 15 | 105 | 6 | |
| 12500 | 35 | 9 | 160~290 | 16 | 128 | 6 | |
| 16000 | 35 | 13 | 165~310 | 18 | 160 | 7 | |
| 20000 | 35 | 13 | 170~320 | 21 | 195 | 7 | |
| 31500 | 35 | 13 | 190~350 | 36 | 240 | 8 | |
| 40000 | 35 | 13 | 200~370 | 43 | 335 | 8 | |
| 50000 | 35 | 13 | 250~490 | 50 | 390 | 9 | |
| 63000 | 35 | 13 | 280~560 | 58 | 460 | 9 | |
Production process
FAQ
Q: How do transformers been shipped?
A: Transformers always been delivered by ship,train or truck for oversea.
Q: Can your product be customerized?
A: Considering differences in voltage, frequency and other speciality of transformer product in different countries and regions,our product can be customerized according to your requirements.
Q: Do you offer guarantee for the products?
A: Yes. We offer at least two years guarantee for all of our transformers.
Q: Do you accept FAT(Factory Acceptance Test)?
A: Yes. It’s available. We are responsible for each set transformer’s testing.
Q: Do you assign engineer for after-sale service?
A: Yes. For our products,we all show after-sale guide installation adn question inquiry.
|
|
