2.5MVA Substation Power Transformer Conservator Type Oil Immersed Step Down 24940V To 480V ANSI IEEE Standards
| Brand Name: | WINLEY |
| Model Number: | S-2500/25 |
| MOQ: | 1unit |
| Price: | $5000-$150000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T |
Conservator Type Power Transformer
,Oil immersed Power Transformer
,ANSI IEEE Standards Power Transformer
2.5MVA Substation Power Transformer Conservator Type Oil immersed Step Down 24940V To 480V ANSI IEEE Standards
This Substation Power Transformer is a liquid-filled, pad-mounted, conservator type designed for reliable three-phase radial feed applications. With a capacity of 2.5 to 3.1 MVA and a vector group of DYN1, it supports both step-up and step-down operations. The transformer operates at a primary voltage of 24,940V (25 kV class) with a delta phasor and secondary voltage of 480Y/277V (1.2 kV class) with a wye-neutral configuration. It features a primary BIL of 110 kV and secondary BIL of 30 kV, operates at 60 Hz, and maintains a 55°C temperature rise with Class E insulation rated for 120°C. The cooling class is KNAN/KNAF, and it meets ANSI/IEEE efficiency standards, ensuring high performance and durability in demanding power distribution environments.

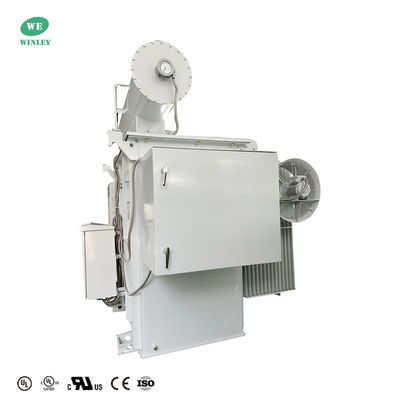

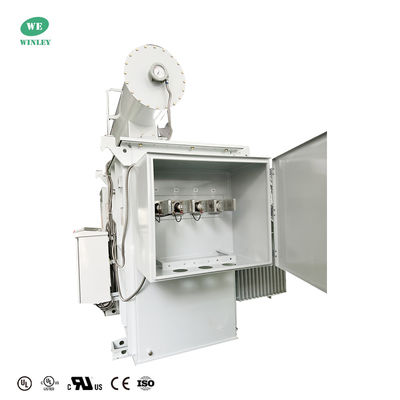

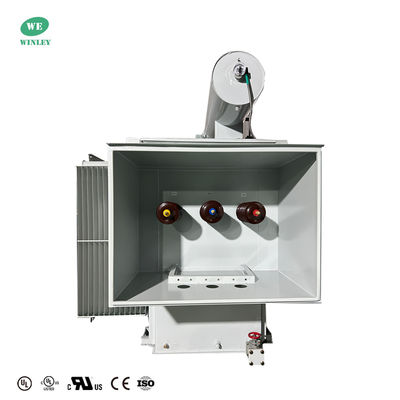

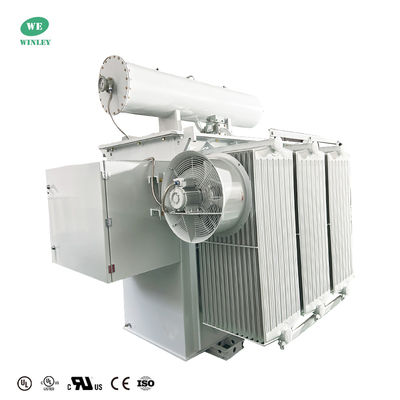

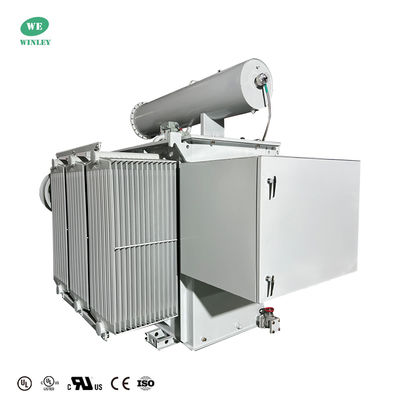

Product Photos
Main Data
| Transformer Type | Substation Power Transformer, Conservator Type |
| Transformer Configuration | Liquid Filled Pad Mounted |
| Transformer Feed Type | Radial Feed |
| Phase | Three Phase |
| Capacity | 2,500 KVA/ 3,100 KVA |
| Vector Group | DYN1 |
| Primary Voltage | 24940V |
| Secondary Voltage | 480Y/277 |
| Frequency | 60 Hz |
| Temperature Rise | 55°C |
| Insulation Rating | E |
| Cooling Class | KNAN/KNAF |
| Efficiency Standard(s) | Meets ANSI/IEEE Standards |
| Winding Material | Copper |
| Ambient Temperature Rating | 40°C |
| Ambient Operating Temperature Range | -40°C to +40°C (-50°F to +104°F) |
Technical drawings
Standard Features
- Conservator type, liquid-filled, pad-mounted substation transformer
- Three-phase radial feed, supports step-up and step-down use
- Durable coated steel tank and cabinet with weatherproof epoxy finish
- Analog gauges for oil level, temperature, and pressure monitoring
- Automatic pressure relief, Buchholz relay, and gas sampler included
- Forced air cooling with fan controls (auto/off/manual)
- 5-position off-load tap changer on high voltage side, 2.5% steps
- Live front primary and secondary connections with NEMA H-Spade terminals
- Copper windings and grain-oriented steel core
- Tamper-proof, pad-lockable doors with hot stick included
- NEMA 3R weatherproof wiring cabinet, seismic rated
- Designed for -40°C to +40°C operation, low noise (65 dBA)
- Meets ANSI/IEEE, DOE, CSA, ASTM standards for safety and efficiency
Factory Tests
- Winding Resistance Test
- Insulation Resistance Test
- Voltage Ratio Error Test
- Short-circuit Impedance Test
- No-load Loss (Wattage) Test
- Load Loss (Wattage) Test
- Induced Voltage Withstand Test
- Separate Source Voltage Withstand Test
- Pressure Integrity Test Test
PRODUCT SPECIFICATION
| Rated Capacity | High Voltage | Low Voltage | Connection Symbol | Short Circuit Impendence | No-load loss | On-load loss | Dimension | Weight |
| (kVA) | (KV) | (V) | (%) | (W) | (W) | W*H*D(mm) | (kg) | |
| 800 | 4.16KV 12.47KV 13.2KV 13.8KV 24.94KV 34.5KV or others |
208/120V 480/277V 600V 12470V 13200V 13800V or others |
Dyn1 Ynyn0 Dyn11 Dd0 Ynd11 or others |
2.7 3.1 4.35 5.75 6 |
980 | 9350 | 1060*1500*1780 | 2050 |
| 1000 | 1160 | 11500 | 1085*1570*1800 | 2450 | ||||
| 1250 | 1380 | 13900 | 1160*1610*1890 | 2900 | ||||
| 1600 | 1660 | 16600 | 1190*1630*1950 | 3400 | ||||
| 2000 | 2030 | 18300 | 1260*1700*2090 | 4100 | ||||
| 2500 | 2450 | 19600 | 1150*2150*2250 | 4750 | ||||
| 3000 | 3240 | 26500 | 1900*2600*2150 | 6500 | ||||
| 5000 | 4500 | 27000 | 2500*2210*3180 | 9500 | ||||
| 7500 | 7200 | 32000 | 3660*3100*5100 | 13600 | ||||
| 10000 | 8500 | 35500 | 3830*2640*2216 | 15800 |
