10MVA Three Phase Substation Transformer Oil Type Step Down 22.9KV To 4160V IEC60076 Standard

Brand Name:	WINLEY
Model Number:	S-10000/25
MOQ:	1unit
Price:	$5000-$150000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Type:

Substation Transformer

Capacity:

10MVA(10000 KVA)

Winding Material:

Copper

Frequency:

60 HZ

Primary Voltage:

22900V

Secondary Voltage:

4160V

Cooling Class:

ONAN; Self-Cooled

Dimension:

4000*3200*3600 (L*W*H)

Supply Ability:

500set/month

Highlight:

22.9KV Substation Transformer

10MVA Substation Transformer

4160V Substation Transformer

Product Description

10MVA Three Phase Substation Transformer Oil Type Step Down 22.9KV To 4160V IEC60076 Standard

WINLEY Electric offers a complete line of liquidfilled distribution transformers that meet current applicble ANSI, IEEE, CSA, AS, DOE standards. With high voltages up to 44 kV and ratings up to 20 MVA.

The substation transformers designed by WINLEY Electric are based on IEC60076 standard. They absorb and utilize advanced domestic and foreign technologies to optimize the transformer core, coil, body, lead wire, oil tank and other components. They have the characteristics of low partial discharge, low loss, low noise, light weight and long service life.

Product Structure

10MVA Three Phase Substation Transformer Oil Type Step Down 22.9KV To 4160V IEC60076 Standard 0

Product drawings

10MVA Three Phase Substation Transformer Oil Type Step Down 22.9KV To 4160V IEC60076 Standard 1

Main Data

No.	Particulars	Unit	Specification
1	Type	~	oil type
2	Rated capacity	kVA	10000
3	No. of Phase	~	3
4	Primary voltage	kV	22.9
5	Secondary voltage	kV	4.16Y/2.4
6	Tapping type	~	off-load
7	Tapping range	%	±2*2.5
8	Cooling method	~	ONAN
9	Rated frequency	Hz	60
10	Vector group	~	Dyn1
11	Insulation class	~	A
12	Temperature rise	K	65/60 (winding/top oil)
13	Off-load loss	W	9500
14	On-load loss (75℃)	W	45000
15	Impedance	%	7
16	Winding material	~	Cu
17	Core material	~	silicon steel
18	Cooling material		mineral oil
19	Dimension	mm	400032003600 (LWH)
20	Weight	kg	19000
21	Service condition	~	outdoor
22	Sea level	M	≤1000
23	Standard	~	IEC60076

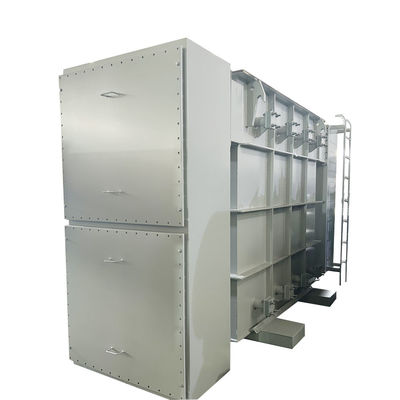

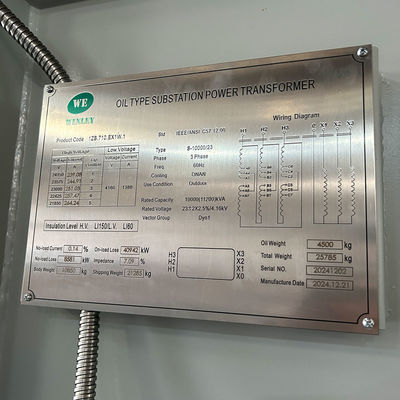

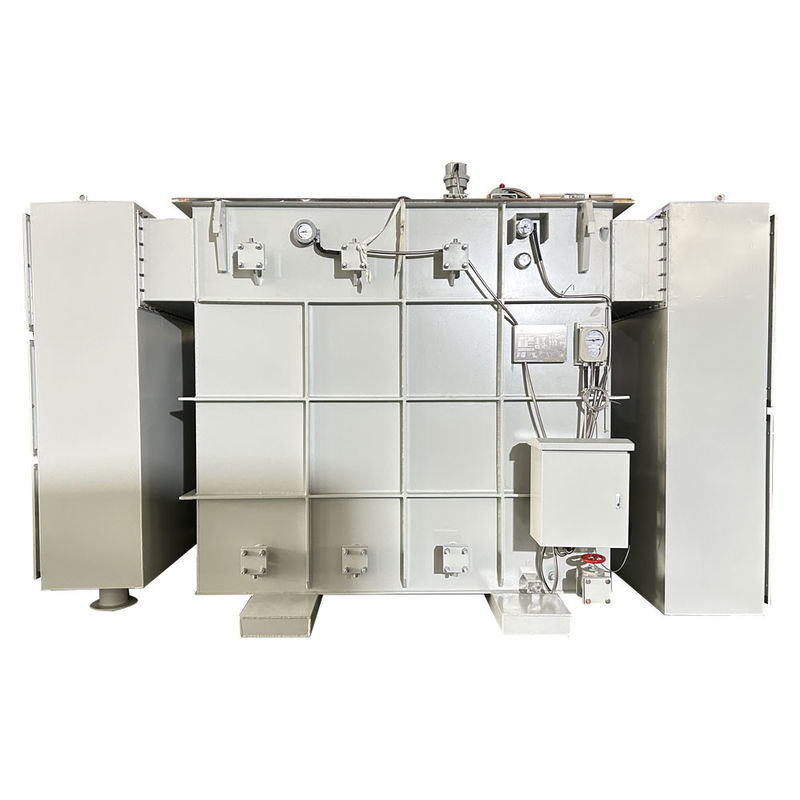

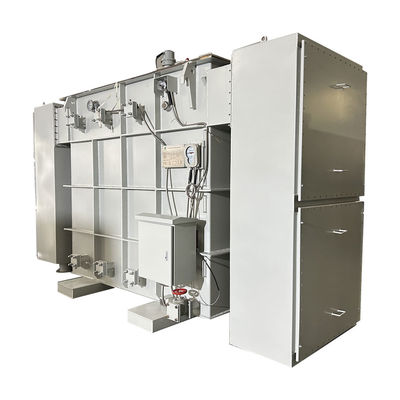

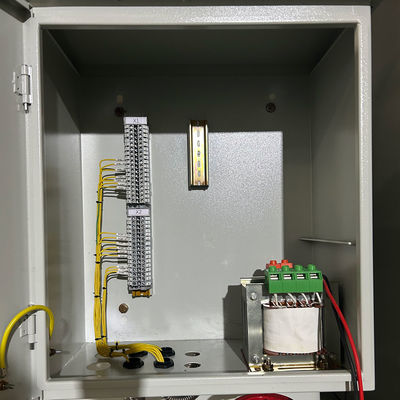

Production photos

10MVA Three Phase Substation Transformer Oil Type Step Down 22.9KV To 4160V IEC60076 Standard 2

10MVA Three Phase Substation Transformer Oil Type Step Down 22.9KV To 4160V IEC60076 Standard 3

10MVA Three Phase Substation Transformer Oil Type Step Down 22.9KV To 4160V IEC60076 Standard 4

10MVA Three Phase Substation Transformer Oil Type Step Down 22.9KV To 4160V IEC60076 Standard 5

10MVA Three Phase Substation Transformer Oil Type Step Down 22.9KV To 4160V IEC60076 Standard 6

10MVA Three Phase Substation Transformer Oil Type Step Down 22.9KV To 4160V IEC60076 Standard 7

Standard Feature

*Carbon steel, optional stainless steel tank
*Bushings: Top-mounted / Side-mounted
*Insulation Fluids: mineral insulating oil, Envirotemp™ FR3™ fluid,
*Standards: ANSI/IEEE,DOE, CSA, AS/NS, IEC, etc
* 65°C average winding rise

* HV and LV bushings
* HV and LV flange connections
* Pressure-vacuum gauge
* Liquid level gauge
* Liquid temperature gauge
*Pressure test valve
* Drain / filter valve with sampling device
* Tank lifting lugs
* Corrosion resistant nameplate

PRODUCT SPECIFICATION

Rated Capacity (kVA)	High Voltage (KV)	Low Voltage (V)	Connection Symbol	Short Circuit Impendence (%)	No-load loss (W)	On-load loss (W)	Dimension WHD(mm)	Weight (kg)
800	4.16KV 12.47KV 13.2KV 13.8KV 24.94KV 34.5KV or others	208/120V 480/277V 600V 12470V 13200V 13800V or others	Dyn1 Ynyn0 Dyn11 Dd0 Ynd11 or others	2.7 3.1 4.35 5.75 6.0	980	9350	106015001780	2050
1000					1160	11500	108515701800	2450
1250					1380	13900	116016101890	2900
1600					1660	16600	119016301950	3400
2000					2030	18300	126017002090	4100
2500					2450	19600	115021502250	4750
3000					3240	26500	190026002150	6500
5000					4500	27000	250022103180	9500
7500					7200	32000	366031005100	13600
10000					8500	35500	383026402216	15800

Production process

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
