Oil Type Transformer

1000 KVA 3 Phase Power Distribution Substation Transformer 7200V To 480V IEEE ANSI C57

All Category

Three Phase Isolation Transformer

Three Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Industrial Control Transformer

Single Phase Control Transformer

Toroidal Isolation Transformer

Three Phase Dry Type Transformer

Three Phase Reactor

Mr. Steven

steven@winley-electric.com

86-18650108051

Contact Now

1000 KVA 3 Phase Power Distribution Substation Transformer 7200V To 480V IEEE ANSI C57

Brand Name:	WINLEY
Model Number:	S-1000/7.2
MOQ:	1unit
Price:	$1000-$150000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Type:

Substation Transformer

Phase:

Three Phase

Capacity:

1000KVA

Primary Voltage:

7200Y/4160V

Secondary Voltage:

Vector Group:

YNd11

Cooling Class:

ONAN; Self-Cooled

Winding Material:

Aluminum/Copper

Supply Ability:

500set/month

Product Description

1000 KVA Three Phase Power Distribution Substation Transformer 7200V To 480V IEEE ANSI C57

WINLEY’s substation transformers are designed, built, and tested in accordance with the highest industry standards including NEMA, ANSI C.57, DOE, and IEEE as applicable.

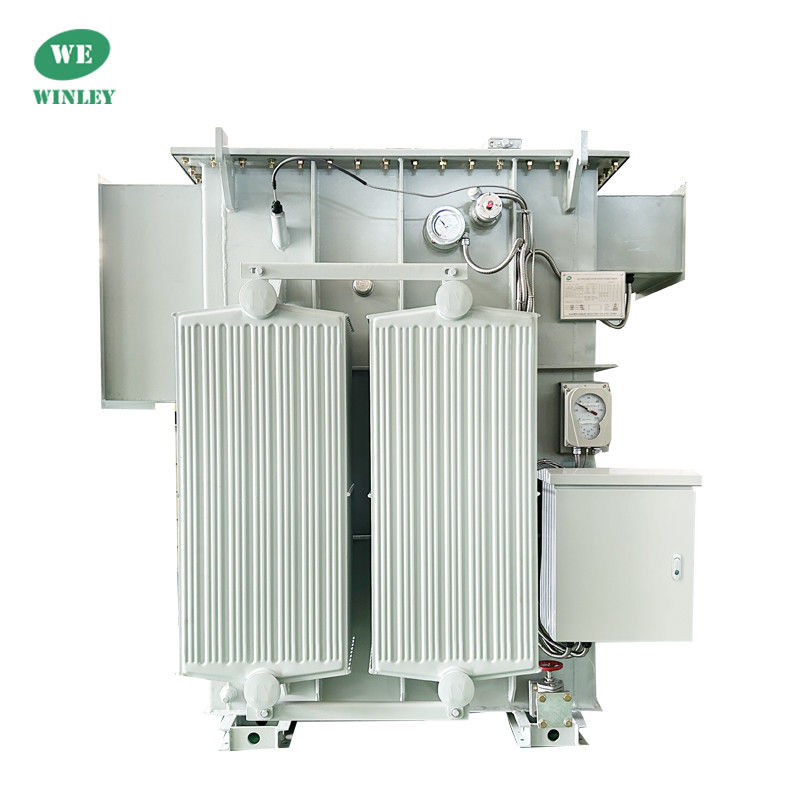

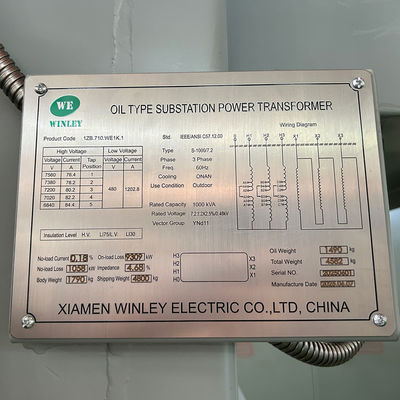

1000 KVA 3 Phase Power Distribution Substation Transformer 7200V To 480V IEEE ANSI C57 0

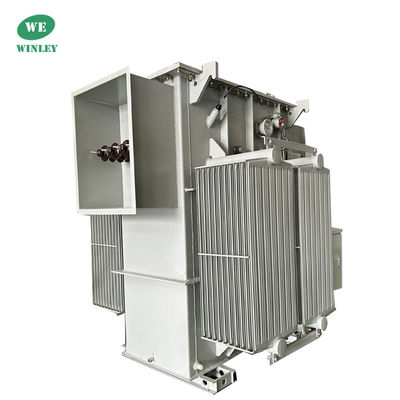

1000 KVA 3 Phase Power Distribution Substation Transformer 7200V To 480V IEEE ANSI C57 1

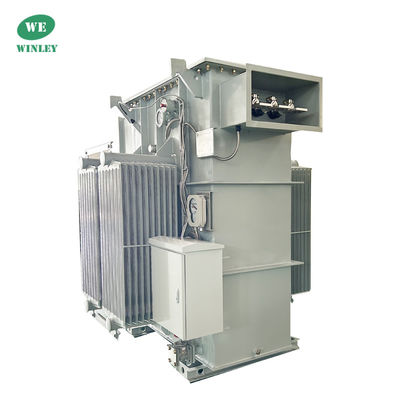

1000 KVA 3 Phase Power Distribution Substation Transformer 7200V To 480V IEEE ANSI C57 3

Substation Transformer Main data

Item	Unit	Reqirement	Remark
Type	~	oil type
Rated capacity	kVA	1000
No. of Phase	~	3
Primary Voltage	kV	7200Y/4160V	Wye-N
Secondary Voltage	kV	480V	delta
Tapping type	~	off-circuit
Tapping range	%	±2*2.5%(5 steps)
Cooling method	~	ONAN
Rated frequency	Hz	60
Vector group	~	YNd11
Insulation class	~	A
Temperature rise	K	65
Off-load loss	W	1050
On-load loss (75℃)	W	10100
Impedance	%	4.0~5.5
Winding material	~	Aluminum
Core material	~	silicon steel
insulation liquid material	~	mineral oil

Drawing

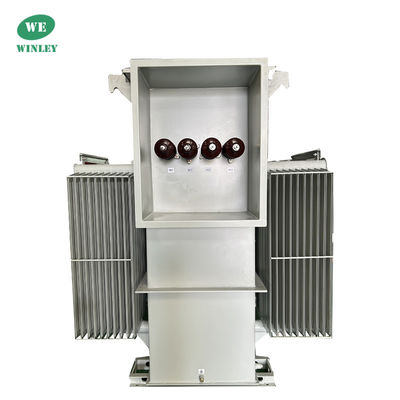

1000 KVA 3 Phase Power Distribution Substation Transformer 7200V To 480V IEEE ANSI C57 4

Substation transformer Standard Features

Electrical grade mineral insulating oil
High-grade silicon-steel core
Aluminum windings (distribution class)
On-load tap changer
Reinforced carbon steel tank
Lifting lugs
Externally clamped high- and low-voltage bushings
Pressure relief valve
Pressure vacuum gauge
Liquid temp gauge
Liquid level gauge
Drain and sample valve
Schrader valve
Ground pads/lugs
Nitrogen blanket
65 degree C rise

PRODUCT SPECIFICATION

Substation Transformer Specification
kVA	HV	LV	Width(mm)	Length(mm)	Height(mm)
315kVA	11000V	400V	800	696	1336
500kVA	27600V	480GrdY/277V	1730	2300	1510
500kVA	11000V	415V	1700	1700	1650
750kVA	11000V	433V	1850	1845	1465
1000kVA	14400V	415/240V	1085	1860	1570
1200kVA	13800V	240V	2450	1850	1820
1500kVA	24940V	600V	1800	1880	1895
2000kVA	7200V	600GrdY/346	1766	2680	1982
2000kVA	44000V	600V	1260	2090	1700
2500kVA	24940V	480GrdY/277V	2400	2200	2060
3000kVA	11000V	415V	1600	2330	1920
3000kVA	22800V	415/240V	2130	3500	1910
3750kVA	44000V	600V	2240	2650	2700
4000kVA	33kV	600Y/347	2150	3250	2290
5000kVA	34500V	7200V	3780	1850	3450
5000kVA	34500V	4160V	2799	2400	2938
6300kVA	35000V	400V	3520	2820	3470
6800kVA	34500V	800V	3400	2670	3400
7500kVA	27600Y	4160V	3350	3290	2270

Factory Tests

Winding Resistance Test
Insulation Resistance Test
Voltage Ratio Error Test
Short-circuit Impedance Test
No-load Loss (Wattage) Test
Load Loss (Wattage) Test
Induced Voltage Withstand Test
Separate Source Voltage Withstand Test
Pressure Integrity Test Test
Zero sequence impedance

More Substation transformers

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
