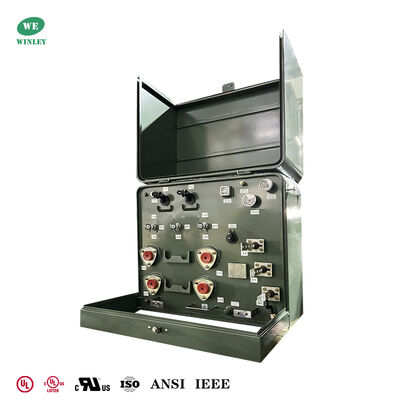

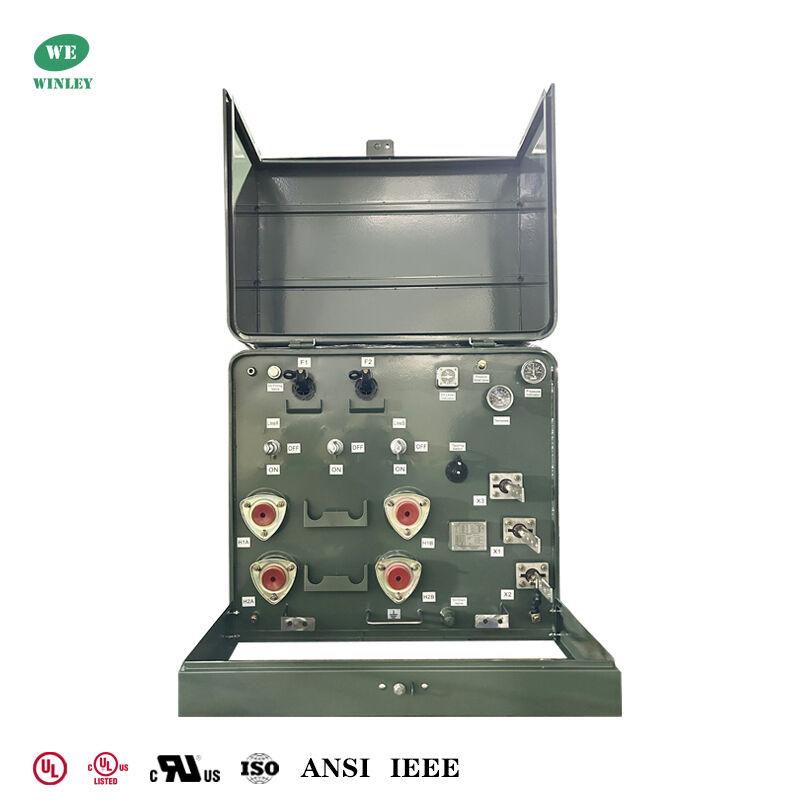

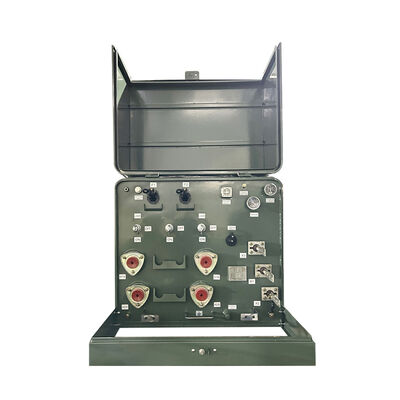

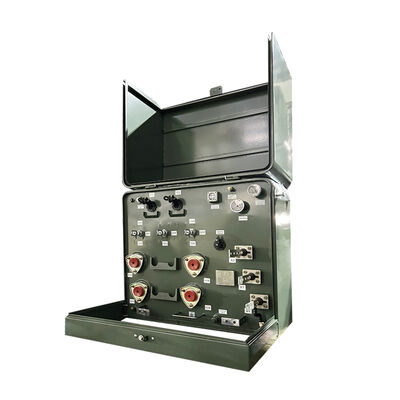

25KVA Single Phase Pad Mounted Transformer 13.2kV to 240V with 304 Stainless Steel Tank
| Brand Name: | WINLEY |
| Model Number: | ZGD-25/13.2 |
| MOQ: | 1unit |
| Price: | $1000-$10000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T |
Detail Information
Place of Origin:
CHINA
Certification:
UL/cUL, ISO
Document:
Transformer Type:
Pad Mounted Transformer
Capacity:
25KVA
Primary Voltage:
13200V Or Customized
Secondary Voltage:
120/240V
Cooling Class:
KNAN; Self-Cooled
Tank Material:
304 Stainless Steel
Efficiency:
99.00%
Efficiency Standard(s):
Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
Delivery Time:
30days
Supply Ability:
1000set/month
Highlight:
25KVA Pad Mounted Transformer
,13.2kV to 240V Single Phase Transformer
,304 Stainless Steel Tank Distribution Transformer
Product Description
Residential Pad Mounted Transformer Single Phase 13.2kv To 240v Oil Filled Distribution Transformers 304 SS Tank
WINLEY Electric single phase pad mounted transformer is designed in strict accordance with international standards such as IEEE, CSA and DOE standards, and has obtained UL/cUL and other certificates. Rated capacity up to 333kVA and primary voltage up to 34.5kV. Single phase pad mounted transformer with its green and simple appearance, can be used in residential areas and commercial places.
Key Features
- 25 kVA pad-mount transformer designed for reliable distribution with a 13,200 V Delta primary and 240/120 V secondary

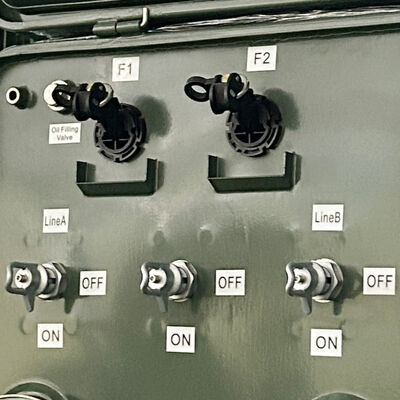

- Features three 2-position load-break switches (LBS) for flexible sectionalizing and safe live switching

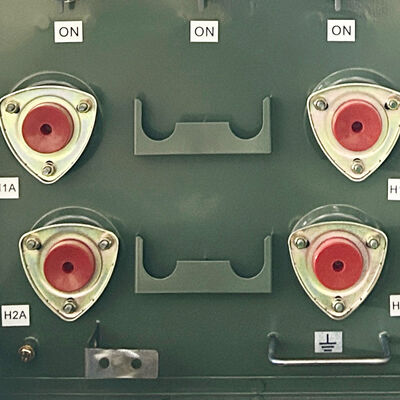

- Four high-voltage bushings to simplify connections and improve phase accessibility
- 304 stainless-steel oil-filled tank ensures superior corrosion resistance, longer service life, and minimal maintenance
Technical Specifications
| Parameter | Value |
|---|---|
| Transformer Type | Pad Mounted |
| Phase | Single Phase |
| Capacity | 25 kVA |
| Vector Group | II6 |
| Primary Voltage | 13200V |
| Secondary Voltage | 240/120V |
| Secondary Phasor | Dual Winding Single Phase |
| Frequency | 60 Hz |
| Temperature Rise | 65°C |
| Cooling Class | KNAN; Self-Cooled |
| Efficiency Standard(s) | Meets DOE 2016 Standards, Meets ANSI/IEEE Standards |
| Winding Material | Copper |
| Ambient Temperature Rating | 40°C |
| Sound Level | 48 dBA |
| Tank Material | 304 Stainless Steel |
Testing Procedures
All transformers are tested in strict accordance with the latest revision of applicable ANSI, IEEE, and NEMA with test reports.
- Leak test
- Polarity and phase relation
- Resistance
- No-load losses and excitation current
- Load losses and impedance
- Applied voltage
- Induced voltage
- Full wave impulse
- Ratio test
Product Specifications
| Rating (kVA) | High Voltage (kV) | No Load Loss | On Load Loss | Height (mm) | Depth (mm) | Width (mm) | Oil Weight (kg) | Total Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 15 kVA | 34.5/19.92 13.8/8 13.2/7.6 12.47/7.2 or others |
50 | 195 | 840 | 740 | 610 | 45 | 294 |
| 25 kVA | 80 | 290 | 840 | 740 | 610 | 68 | 362 | |
| 37.5 kVA | 106 | 360 | 840 | 760 | 610 | 75 | 476 | |
| 50 kVA | 135 | 500 | 840 | 810 | 610 | 93 | 553 | |
| 75 kVA | 190 | 650 | 840 | 860 | 610 | 132 | 672 | |
| 100 kVA | 280 | 1010 | 910 | 1200 | 965 | 230 | 714 | |
| 167 kVA | 435 | 1530 | 1000 | 1200 | 965 | 265 | 913 | |
| 250 kVA | 550 | 2230 | 1250 | 1300 | 1430 | 325 | 1106 |
