Residential Pad mounted Transformer Single Phase 25Kva 6.6KV To 120V Dual Windings Electric Power Distribution Transformer UL Listed Price

Brand Name:	WINLEY
Model Number:	ZGD-25/6.6
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL/cUL, ISO

Transformer Type:

Liquid Filled Pad Mounted

Capacity:

25KVA Or Customized

Primary Voltage:

6600V

Secondary Voltage:

120/240V

Cooling Class:

Frequency:

100Hz Or Customized

Efficiency:

99.00%

Efficiency Standard(s):

Meets DOE 2016 Standards, Meets ANSI/IEEE Standards

Supply Ability:

1000set/month

Product Description

Residential Pad mounted Transformer Single Phase 25Kva 6.6KV To 120V Dual Windings Electric Power Distribution Transformer UL/cUL Listed

Single-phase pad-mounted transformers are compact, self-contained electrical device.It has the characteristics of small size, light weight, low noise, low loss, safety and reliability.It is widely used in residential quarters, commercial centers, hospitals, parks, schools, etc.

Residential Pad mounted Transformer Single Phase 25Kva 6.6KV To 120V Dual Windings Electric Power Distribution Transformer UL Listed Price 0

WINLEY’s single‑phase pad‑mounted distribution transformers are UL and cUL certified, designed to applicable ANSI, IEEE, NEMA, and DOE standards, and built for safe, reliable operation in underground electrical distribution networks.

Residential Pad mounted Transformer Single Phase 25Kva 6.6KV To 120V Dual Windings Electric Power Distribution Transformer UL Listed Price 1

Main data

Transformer Type:	Liquid Filled Pad Mounted
Phase:	Single Phase
Transformer Feed Type:	Loop Feed
Capacity:	25 KVA
Vector Group:	II6
Primary Voltage:	6600V
Secondary Voltage:	120/240 V (L-N-L)
Secondary Phasor:	Dual Windings, Single Phase
Secondary BIL:	30 KV
Frequency:	100 Hz
Temperature Rise:	65°C
Insulation Rating:	E
Cooling Class:	ONAN; Self-Cooled
Impedance:	5.00%
Efficiency Standard(s):	Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation):	K-1 (Standard)
Winding Material:	Copper
Ambient Temperature Rating:	40°C
Core Material:	Grain Oriented Steel
Dimensions*:	33.05-W x 37.1-D x 24.8-H
Total Weight (Liquid Filled)*:	10259.38 lbs

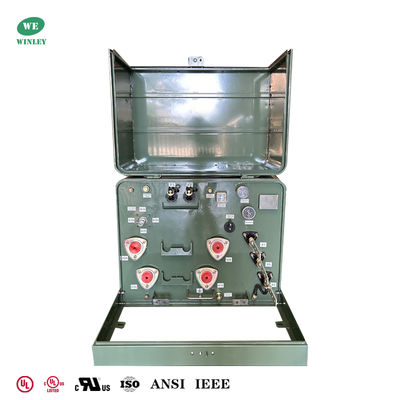

Key Features & Drawing

Primary: 6600 V Delta, 8.7 kV class, 95 kV BIL, dead‑front ANSI Type II terminations with 200 A load‑break elbows
Secondary: 120/240 V (L‑N‑L), dual windings, ANSI Type II epoxy bushings and spade terminals; neutral grounded to tank
Tap Changer: 5‑position, hot‑stick operable (±2.5% steps); front‑compartment HV location
Protection & Switching: Bayonet expulsion and partial‑range current‑limiting fuses on primary; 4‑position load‑break switch (200 A, 8.7 kV), surge arrester included
Construction: Grain‑oriented steel core, copper windings, coated steel tank and cabinet, low‑profile lockable lid with lifting lugs
Enclosure & Finish: NEMA 3R weatherproof wiring compartment; bell green epoxy finish; tamper‑resistant design

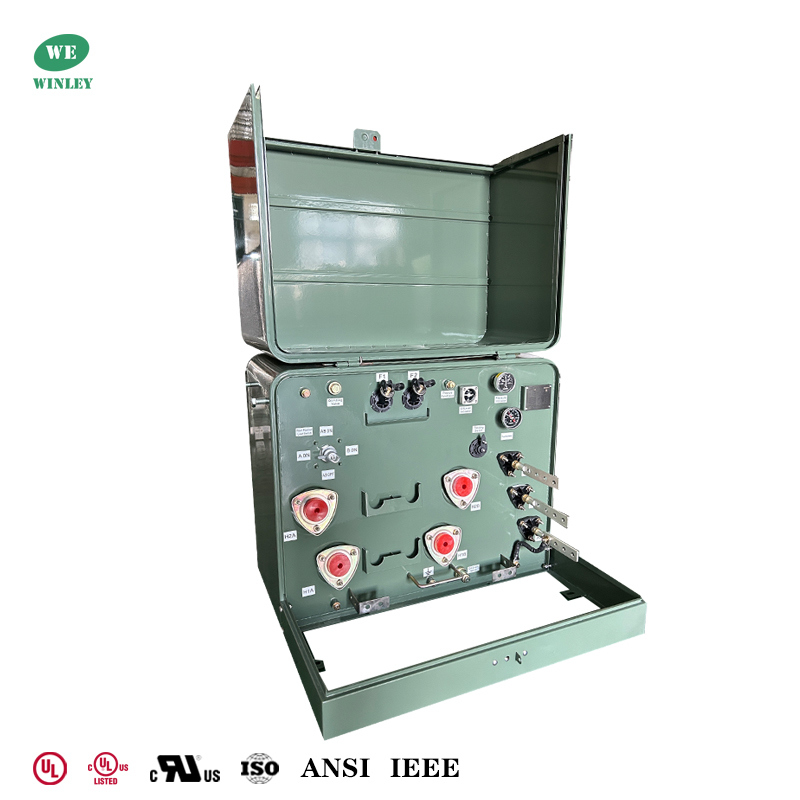

Residential Pad mounted Transformer Single Phase 25Kva 6.6KV To 120V Dual Windings Electric Power Distribution Transformer UL Listed Price 2

Testing

Winding Resistance Test
Insulation Resistance Test
Voltage Ratio Error Test
Applied voltage withstand test
Induced over voltage withstand test
No-load Loss (Wattage) Test
Load Loss (Wattage) Test
Short-circuit Impedance
seal test

Type testing

Lightning Impulse Test Record

Temperature Rise Test

Residential Pad mounted Transformer Single Phase 25Kva 6.6KV To 120V Dual Windings Electric Power Distribution Transformer UL Listed Price 4

Specification

Single phase Pad mounted Transformer Specification
Rating	High voltage(kV)	No Load Loss	On load Loss	Height	Depth	Width	Oil Weight(kg)	Total Weight(kg)
(kVA)	High voltage(kV)	No Load Loss	On load Loss	(mm)	(mm)	(mm)	Oil Weight(kg)	Total Weight(kg)
15 kVA	34.5/19.92 13.8/8 13.2/7.6 12.47/7.2 or others	50	195	840	740	610	45	294
25 kVA		80	290	840	740	610	68	362
37.5 kVA		106	360	840	760	610	75	476
50 kVA		135	500	840	810	610	93	553
75 kVA		190	650	840	860	610	132	672
100 kVA		280	1010	910	1200	965	230	714
167 kVA		435	1530	1000	1200	965	265	913
250 kVA		550	2230	1250	1300	1430	325	1106

Production process

Residential Pad mounted Transformer Single Phase 25Kva 6.6KV To 120V Dual Windings Electric Power Distribution Transformer UL Listed Price 5

Residential Pad mounted Transformer Single Phase 25Kva 6.6KV To 120V Dual Windings Electric Power Distribution Transformer UL Listed Price 6

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
