Single Phase Pad Mounted Transformer

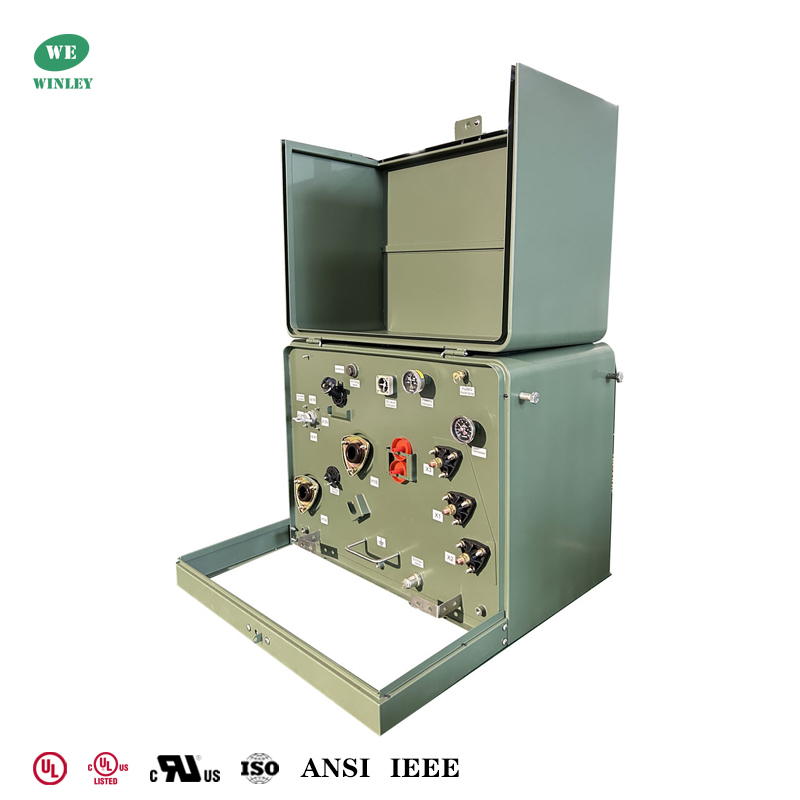

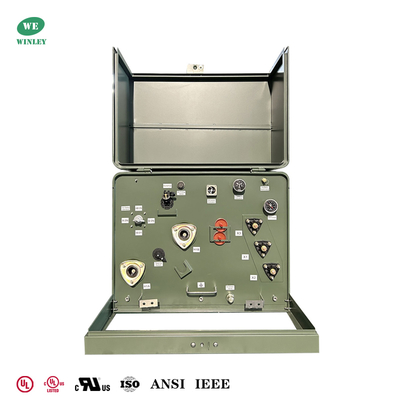

UL/cUL Listed 167Kva Single Phase Pad Mounted Transformer Liquid Filled 12470V To 240V Meet DOE 2016 Standard

All Category

Three Phase Isolation Transformer

Three Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Industrial Control Transformer

Single Phase Control Transformer

Toroidal Isolation Transformer

Three Phase Dry Type Transformer

Three Phase Reactor

Mr. Steven

steven@winley-electric.com

86-18650108051

Contact Now

UL/cUL Listed 167Kva Single Phase Pad Mounted Transformer Liquid Filled 12470V To 240V Meet DOE 2016 Standard

Brand Name:	WINLEY
Model Number:	ZGD-167/12.47
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL/cUL, ISO

Type:

Liquid Filled Pad Mounted Transformer

Capacity:

167Kva

Feed Type:

Loop Feed

Primary Voltage:

12470GrdY/7200

Secondary Voltage:

240/480V

Cooling Class:

ONAN; Self-Cooled

Frequency:

Efficiency Standard(s):

Meets DOE 2016 Standards, Meets ANSI/IEEE Standards

Supply Ability:

1000set/month

Highlight:

UL/cUL listed single phase transformer

167Kva liquid filled transformer

DOE 2016 standard pad mounted transformer

Product Description

UL/cUL Listed 167Kva Single Phase Pad Mounted Transformer Liquid Filled 12470V To 240V Meet DOE 2016 Standard

Product Features

Primary / Secondary: 12470Y/7200V Grounded Wye primary; 240/480V single‑phase secondary
Type: Liquid‑filled pad‑mounted, ONAN (self‑cooled)
Capacity / Performance: 167 kVA, 65°C rise, DOE 2016 efficiency 99.10%
Insulation / Fluid: Mineral oil, non‑PCB, 125 gallons
Construction: Copper windings with electrostatic shield; tamper‑resistant, pad‑lockable coated steel housing (Munsell green)
Connections & Protection: Dead‑front primary with standoff bushings and load‑break elbows; live‑front secondary threaded stud terminals; bayonet fuses; HV surge arrestor; 5‑position (2.5%) tap changer
Standards & Specs: Meets ANSI/IEEE and ASTM standards, 55 dBA, ~1950 lb, bottom feed conduit entry

UL/cUL Listed 167Kva Single Phase Pad Mounted Transformer Liquid Filled 12470V To 240V Meet DOE 2016 Standard 0

Main data

Transformer Type	Pad Mounted, Compartmental-Type
Transformer Configuration	Liquid Filled Pad Mounted
Transformer Feed Type	Loop Feed
Phase	Single Phase
Capacity	167
Primary Voltage	12470GrdY/7200
Secondary Voltage	240/480V (L-N-L)
Frequency	60 Hz
Temperature Rise	65°C
Cooling Class	ONAN; Self-Cooled
Efficiency	Meet DOE 2016 Standard
Winding Material	Copper
Ambient Temperature Rating	40°C
Sound Level	55 dBA
Efficiency	99.10%
No Load Loss (in watts)*	+/- 450W
Load Loss (in watts)*	+/- 1820W

Technical drawings

UL/cUL Listed 167Kva Single Phase Pad Mounted Transformer Liquid Filled 12470V To 240V Meet DOE 2016 Standard 2

Why choose us

1. WINLEY single-phase transformer has obtained UL/cUL certification, with a capacity of 10-333KVA and a voltage of up to 34.5KV
2. The products are designed according to multiple standards and meet or even exceed DOE 2016, IEEE, ANSI, CSA, IEC, NEMA and other standards.
3. The monthly delivery capacity is over 800 units, and fast delivery can be achieved within 4 weeks.

【UL Listed】

UL/cUL Listed 167Kva Single Phase Pad Mounted Transformer Liquid Filled 12470V To 240V Meet DOE 2016 Standard 3

【cUL Listed】

UL/cUL Listed 167Kva Single Phase Pad Mounted Transformer Liquid Filled 12470V To 240V Meet DOE 2016 Standard 4

Specification

Single phase Pad mounted Transformer Specification
Rating	High voltage(kV)	No Load Loss	On load Loss	Height	Depth	Width	Oil Weight(kg)	Total Weight(kg)
(kVA)	High voltage(kV)	No Load Loss	On load Loss	(mm)	(mm)	(mm)	Oil Weight(kg)	Total Weight(kg)
15 kVA	34.5/19.92 13.8/8 13.2/7.6 12.47/7.2 or others	50	195	840	740	610	45	294
25 kVA		80	290	840	740	610	68	362
37.5 kVA		106	360	840	760	610	75	476
50 kVA		135	500	840	810	610	93	553
75 kVA		190	650	840	860	610	132	672
100 kVA		280	1010	910	1200	965	230	714
167 kVA		435	1530	1000	1200	965	265	913
250 kVA		550	2230	1250	1300	1430	325	1106

Production process

UL/cUL Listed 167Kva Single Phase Pad Mounted Transformer Liquid Filled 12470V To 240V Meet DOE 2016 Standard 5

UL/cUL Listed 167Kva Single Phase Pad Mounted Transformer Liquid Filled 12470V To 240V Meet DOE 2016 Standard 6

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
