25kva Single Phase Pad Mounted Transformer 316 SS FR3 13800v To 120v ULCertified Power Distribution Step-Down Transformers

This 25 kVASingle phase pad-mounted transformer provides single-phase power with a 13,800V Δ primary and 240/120V secondary. Liquid-filled, self-cooled (KNAN) , it meets DOE 2016 and ANSI/IEEE standards Constructed with copper windings and 316 stainless steel housing.

Why choose us

WINLEY’s UL/cUL‑certified single‑phase transformers range from 10 to 333 kVA with voltages up to 34.5 kV, are designed to meet or exceed DOE 2016, IEEE, ANSI, CSA, IEC, NEMA and other standards, and benefit from a monthly production capacity of over 800 units with fast delivery available within 4 weeks.WINLEY's single-phase pad-mounted transformer has numerous applications in the United States and Canada.

Main data

Drawing

Transformer Features

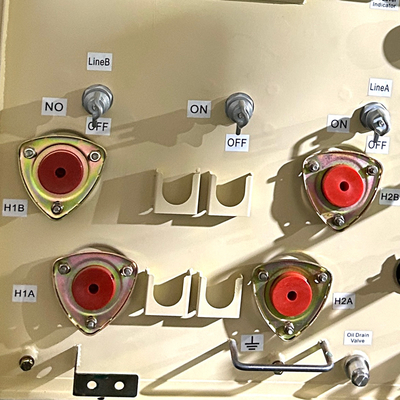

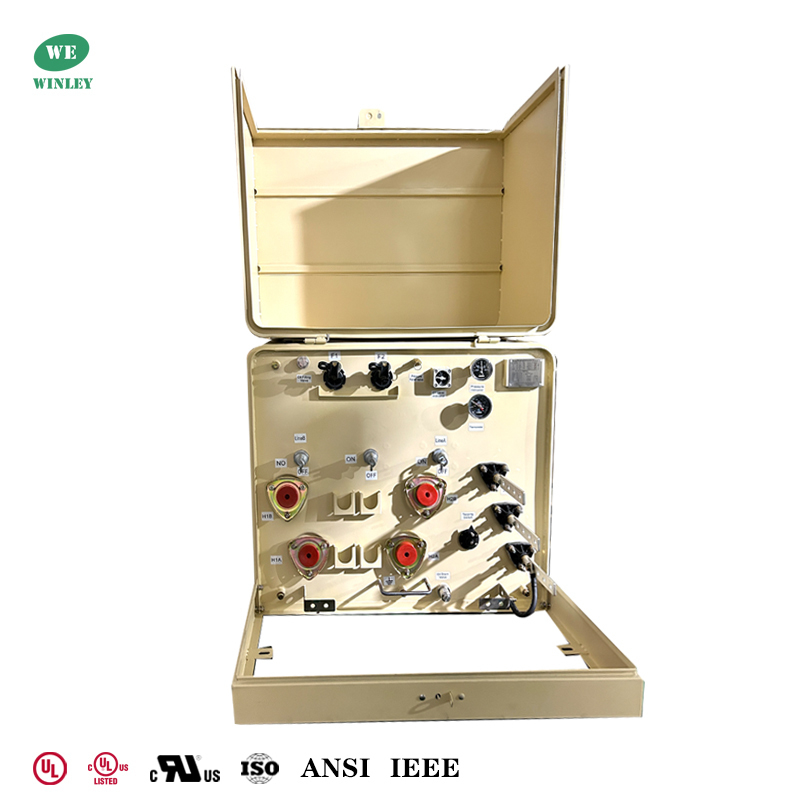

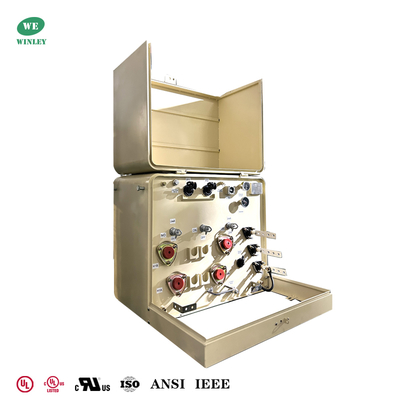

This 25 kVA pad-mounted transformer features a 13,800 V delta primary (15 kV class, 95 kV BIL) and a 240/120 V dual-winding single-phase secondary (L–N–L, 30 kV BIL). It is equipped with (3) 2-Position Load Break Switches to enhance operational safety and flexibility during load management.

This 25 kVA pad-mounted transformer features robust and corrosion-resistant enclosure components, with its tank constructed from 316 stainless steel, and both the cabinet and base platform made of 316 stainless steel. These high-quality stainless steel materials ensure the transformer's  (outer casing) exhibits excellent durability and weather resistance, making it well-suited for outdoor installation and long-term operation in various environmental conditions

Specification

Production process

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
