IEEE Standard UL Certificated 25Kva 1 Phase Pad Mounted Power Distribution Transformer 12470V

Brand Name:	WINLEY
Model Number:	ZGD-25/12.47
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL/cUL, ISO

Capacity:

25Kva

Primary Voltage:

12470GrdY/7200

Secondary Voltage:

120/240V

Cooling Class:

KNAN; Self-Cooled

Frequency:

Winding Material:

Copper

Temperature Rise:

Efficiency Standard(s):

Meets DOE 2016 Standards, Meets ANSI/IEEE Standards

Supply Ability:

1000set/month

Product Description

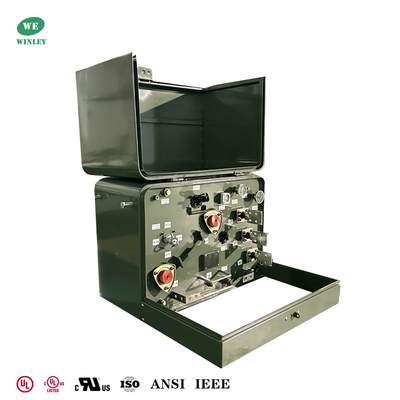

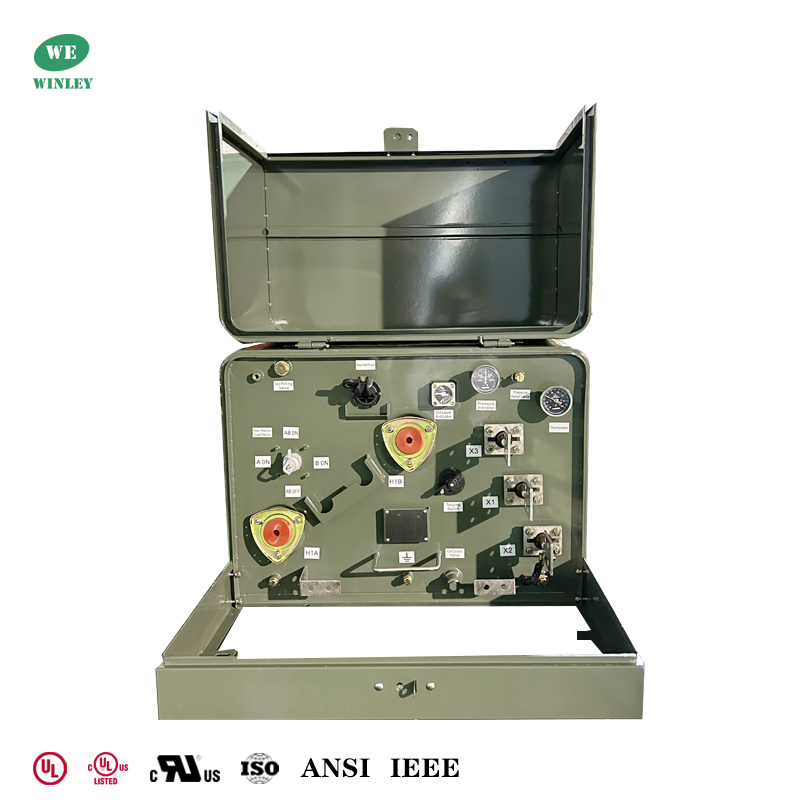

IEEE Standard UL Certificated 25Kva 1 Phase Pad Mounted Power Distribution Transformer 12470V

Single-phase pad-mounted transformers are compact, self-contained electrical devices primarily used in residential and light commercial settings. Their primary application is to step down the high-voltage electricity supplied by the utility company to a lower voltage suitable for home or small business use.

IEEE Standard UL Certificated 25Kva 1 Phase Pad Mounted Power Distribution Transformer 12470V 0

WINLEY single‑phase transformers are designed to meet or exceed the DOE 2016 energy‑efficiency requirements and relevant IEEE, ANSI, CSA, IEC, UL/cUL and NEMA standards.

IEEE Standard UL Certificated 25Kva 1 Phase Pad Mounted Power Distribution Transformer 12470V 1

Main data

Transformer Type	Pad Mounted, Compartmental-Type II
Transformer Configuration	Liquid Filled Pad Mounted
Transformer Feed Type	Loop Feed
Phase	Single Phase (Connects to 3-Phase electrical grid)
Capacity	25 KVA
Vector Group	II6
Primary Voltage	12470GrdY/7200
Secondary Voltage	120/240 (L-N-L)
Frequency	60 Hz
Temperature Rise	65°C
Insulation Rating	Class E Insulation - 120°C, 248°F
Cooling Class	KNAN; Self-Cooled
Efficiency Standard(s)	Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation)	K-1 (Standard)
Winding Material	Copper
Ambient Temperature Rating	40°C
Sound Level	48 dBA
Elevation (Altitude)	3300ft (1000 meters) Above Sea Level or Below
Core Material	Grain Oriented Steel
Tank Material	Coated Steel
Efficiency	98.80%

Drawing

IEEE Standard UL Certificated 25Kva 1 Phase Pad Mounted Power Distribution Transformer 12470V 3

Standard Features

• Meet or exceeds ANSI®, IEEE® and NEMA® standards
• Meets DOE Energy Efficiency Standard 10 CFR Part 431 for distribution transformers
• Tank coating exceeds IEEE Std C57.12.28™-2005 and IEEE Std C57.12.29™-2005 standards (stainless steel units only)
• Full compliance with IEEE Std C57.12.28™-2005 standard enclosure integrity requirements
• Laser engraved nameplate
• Recessed stainless steel lifting provisions
• Tank grounding provisions
• Automatic pressure relief device
• Electrical grade mineral oil
• Hinged door with stainless steel hinge pins and barrels
• Floating lock pocket for easy alignment
• Captive stainless steel pentahead door locking bolt
• Oil fill and drain provisions
• Removable sill
• Welded domed tank cover
• High-voltage bushing wells - 200 A

IEEE Standard UL Certificated 25Kva 1 Phase Pad Mounted Power Distribution Transformer 12470V 4

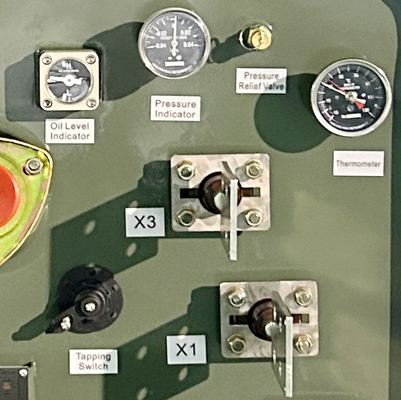

Accessories

• 4 position loadbreak
• Multiple voltages or taps
• Externally-operable multiple voltage or tap changer switches for safe operation
• Stainless steel tank, tank bottom, sill, door, and/or hardware
• Various spades and terminals available for secondary bushings
• High-voltage bushing inserts
• Ground connectors
• One piece high-voltage bushings
• Envirotemp™ FR3™ fluid
• Loadbreak switches
• Drain/sampling valve
• Pressure vacuum gauge
• Liquid level gauge
• Temperature gauge

IEEE Standard UL Certificated 25Kva 1 Phase Pad Mounted Power Distribution Transformer 12470V 5

Specification

Single phase Pad mounted Transformer Specification
Rating	High voltage(kV)	No Load Loss	On load Loss	Height	Depth	Width	Oil Weight(kg)	Total Weight(kg)
(kVA)	High voltage(kV)	No Load Loss	On load Loss	(mm)	(mm)	(mm)	Oil Weight(kg)	Total Weight(kg)
15 kVA	34.5/19.92 13.8/8 13.2/7.6 12.47/7.2 or others	50	195	840	740	610	45	294
25 kVA		80	290	840	740	610	68	362
37.5 kVA		106	360	840	760	610	75	476
50 kVA		135	500	840	810	610	93	553
75 kVA		190	650	840	860	610	132	672
100 kVA		280	1010	910	1200	965	230	714
167 kVA		435	1530	1000	1200	965	265	913
250 kVA		550	2230	1250	1300	1430	325	1106

Production process

IEEE Standard UL Certificated 25Kva 1 Phase Pad Mounted Power Distribution Transformer 12470V 6

IEEE Standard UL Certificated 25Kva 1 Phase Pad Mounted Power Distribution Transformer 12470V 7

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
