Cast Coil Transformer
>
704KVA Cast Resin Dry Type Power Transformer 6KV To 0.5KV Distribution Cast Coil Transformer

704KVA Cast Resin Dry Type Power Transformer 6KV To 0.5KV Distribution Cast Coil Transformer

Brand Name: WINLEY
Model Number: SCB10-704/6
MOQ: 1unit
Price: $1000-$10000
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
CE,ISO
Type:
Cast Resin Transformer
Rated Capacity:
704KVA
Primary Voltage:
6000V
Secondary Voltage:
530V
Cooling Method:
AN/AF
Winding Material:
Copper
Insulation Class:
F/H
Standard:
IEC60076
Supply Ability:
1000set/month
Highlight:

0.5KV Cast Resin Dry Type Transformer

,

704KVA Cast Resin Dry Type Transformer

Product Description

704KVA Cast Resin Dry Type Power Transformer 6KV To 0.5KV Distribution Cast Coil Transformer





This 704 kVA three-phase cast resin transformer efficiently converts 6000V primary voltage to 530V secondary, Equipped with off-circuit tapping (±2×2.5% adjustment) , while AN/AF cooling (natural/forced air) supports continuous operation with a 100K temperature rise. The cast coil transformer Compliant with IEC60076 international standards, is a compact structure, low-noise, low-loss, moisture resistance, flame retardant, cast resin dry-type transformer.



Product Photos

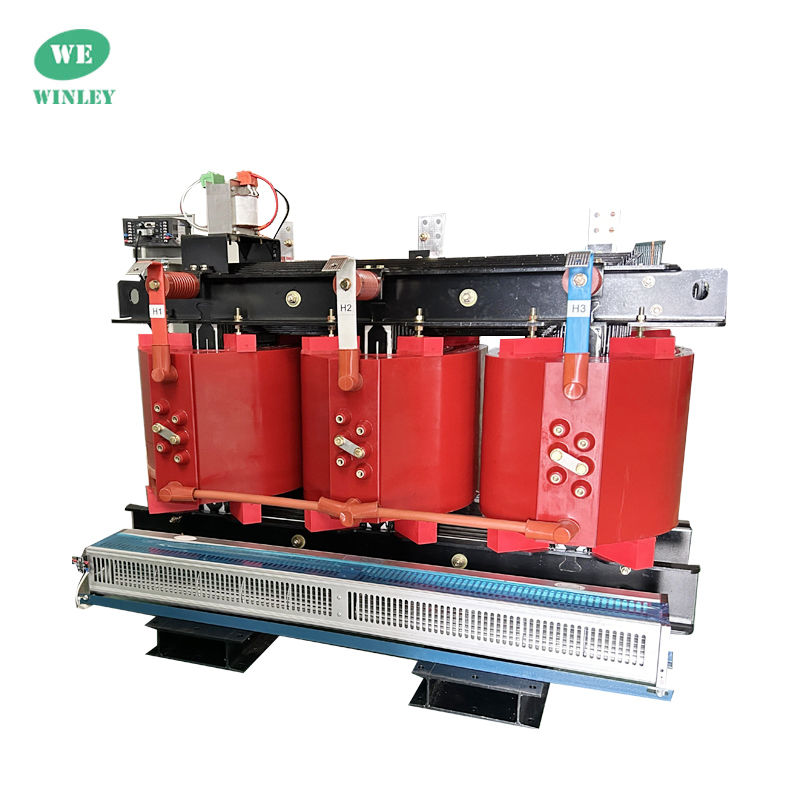

704KVA Cast Resin Dry Type Power Transformer 6KV To 0.5KV  Distribution Cast Coil Transformer 0

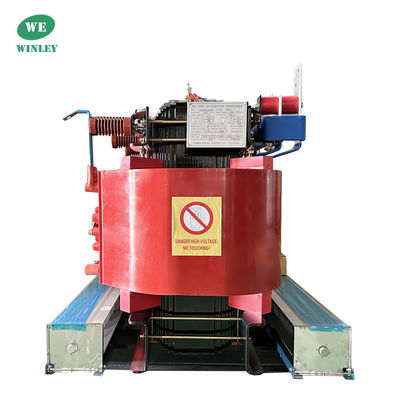

704KVA Cast Resin Dry Type Power Transformer 6KV To 0.5KV  Distribution Cast Coil Transformer 1

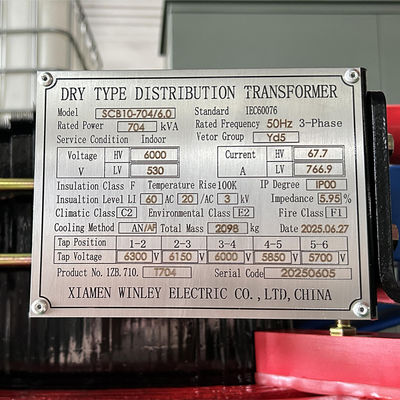

704KVA Cast Resin Dry Type Power Transformer 6KV To 0.5KV  Distribution Cast Coil Transformer 2



 Main data



No. Particulars Unit Specification
1 Type ~ Cast resin, Dry type
2 Rated capacity kVA 704
3 No. of Phase ~ 3
4 Primary voltage V 6000
5 Secondary voltage V 530
6 Tapping type ~ off-circuit tapping
7 Tapping type % ±2*2.5%
8 Cooling method ~ AN/AF
9 Rated frequency Hz 50
10 Vector group ~ Yd5
11 Insulation class ~ F
13 Temperature rise K 100
14 Off-load loss W 1500
15 On-load loss (120) W 5940
16 Impedance % 6
17 Winding material ~ Cu
18 Core material ~ silicon steel
19 Enclosure ~ IP00
20 Dimension mm 1400*1100*1250
21 weight kg 1950
22 Service condition ~ indoor
23 Sea level M ≤1000



Technical drawings

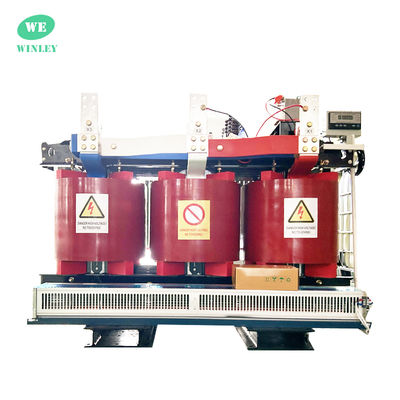

704KVA Cast Resin Dry Type Power Transformer 6KV To 0.5KV  Distribution Cast Coil Transformer 3



Dry transformer features


1)Moisture-proof and corrosion-resistant ability , and it can run normally at 100%humidity,especially for work in extreme environmental conditions.
2)Lost loss, small local discharge, small noise, and strong heat dissipation capacity, can run 150%of the rated load operation.
3)High the whole mechanical strength of the cast coil withstand sudden short -circuit capability.
4)Safe, fire prevention, no pollution, can be installed directly in the load center.
5)Simple maintenance and installation, low comprehensive operating costs.







704KVA Cast Resin Dry Type Power Transformer 6KV To 0.5KV  Distribution Cast Coil Transformer 4



Specification



Product Specifications
Rated capacity
(KVA)
High Voltage
(KV)
Low Voltage
(KV)
Connection Symbol No-Load Loss
(W)
On-Load Loss
(W)
No Load Current
(%)
Dimension
L*W*H

(mm)
Weight
(Kg)
100 6KV
6.3KV
10KV
10.5KV
11KV
0.4KV Dyn11
Yyn0
540 1990 2.4 1600*1300*2200 520
315 970 4080 1.8 1800*1350*2200 1085
500 1350 5790 1.8 2000*1400*2200 1520
630 1530 6840 1.6 2000*1400*2200 1820
1000 2070 9780 1.4 2450*1450*2200 2550
1250 2380 11500 1.4 2300*1500*2200 2900
1600 2790 13800 1.4 2400*1550*2200 3490
2000 3240 16300 1.2 2600*1600*2200 4220
2500 3870 19300 1.2 2600*1600*2200 4955





Why choose us



  • WINLEY ELECTRIC's three-phase epoxy resin dry-type transformers are available in three grades: 10KV/20KV/35KV, in compliance with IEC726, GB/T10228-1997 standards, and have the characteristics of low loss, compact structure, low noise, moisture resistance, high mechanical strength, flame retardant, and strong overload capacity.
  • We can produce cast resin transformers within 10MVA and 35KV. The factory has advanced vacuum casting equipment and molds of various capacity specifications, which can meet the different needs of users.
  • WINLEY's cast coil transformers provide reliable, environmentally friendly and cost-effective solutions for your power needs.

704KVA Cast Resin Dry Type Power Transformer 6KV To 0.5KV  Distribution Cast Coil Transformer 5



Production process



704KVA Cast Resin Dry Type Power Transformer 6KV To 0.5KV  Distribution Cast Coil Transformer 6
704KVA Cast Resin Dry Type Power Transformer 6KV To 0.5KV  Distribution Cast Coil Transformer 7

704KVA Cast Resin Dry Type Power Transformer 6KV To 0.5KV  Distribution Cast Coil Transformer 8





FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
