Single Phase Pad Mounted Transformer 125Kva 12470V Electrical Power Transformer Factory Price Meets ANSI/IEEE CSA Standards

Brand Name:	WINLEY
Model Number:	ZGD-125/12.47
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL/cUL, ISO

Transformer Type:

Pad Mount Transformer

Capacity:

125Kva

Primary Voltage:

12470V

Secondary Voltage:

240/120V

Cooling Method:

KNAN; Self-Cooled

Vector Group:

UL Certificate Number:

UL-US-2564931-0

CUL Certificate Number:

UL-CA-2548224-0

Supply Ability:

1000set/month

Product Description

Single Phase Pad Mounted Transformer 125Kva 12470V Electrical Power Transformer Factory Price Meets ANSI/IEEE CSA Standards

WINLEY 125 kVA pad mounted transformer meets/exceeds DOE 2016 efficiency ratings with UL/cUL listed. The WINLEY Transformer team possesses extensive experience in transformer projects within the North American market. Their service offerings are highly adaptable to suit your specific 100 kVA Transformer requirements.

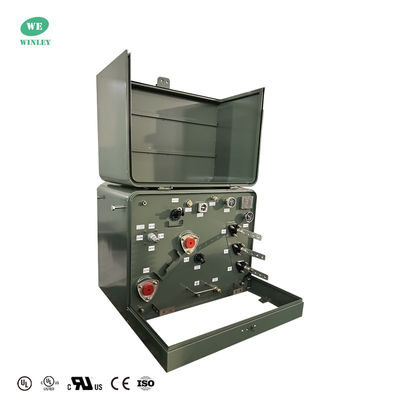

Single Phase Pad Mounted Transformer 125Kva 12470V Electrical Power Transformer Factory Price Meets ANSI/IEEE CSA Standards 0

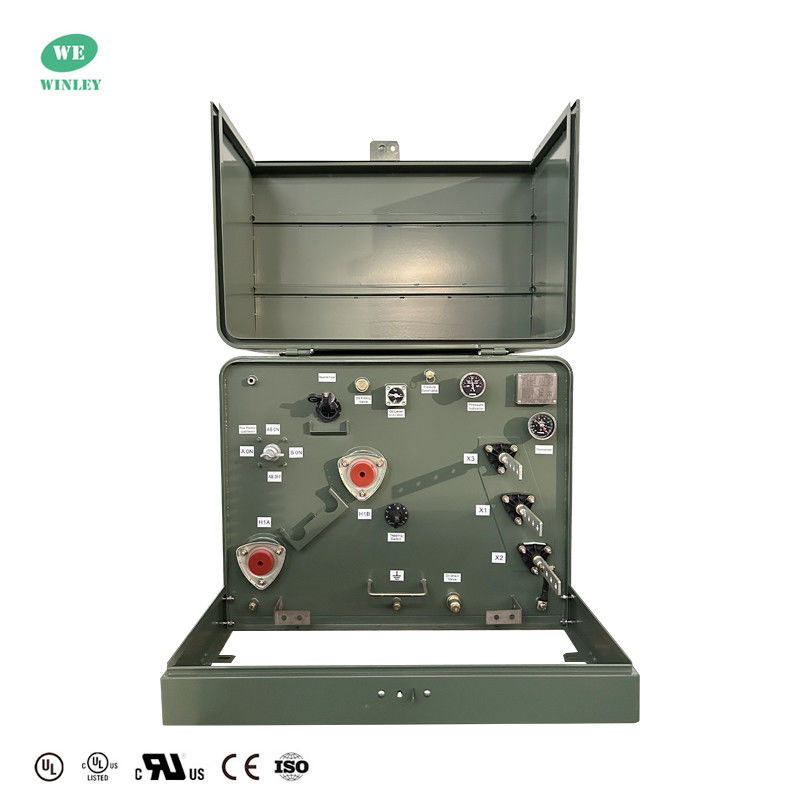

Single Phase Pad Mounted Transformer 125Kva 12470V Electrical Power Transformer Factory Price Meets ANSI/IEEE CSA Standards 2

Single Phase Pad Mounted Transformer Main data

Transformer Type:	Pad Mounted, Compartmental-Type
Transformer Feed Type:	Loop Feed
Polarity:	Additive
Phase:	Single Phase (Connects to 3-Phase electrical grid)
Capacity:	125 KVA
Vector Group:	II6
Primary Voltage:	12470GrdY/7200
Secondary Voltage:	120/240 (L-N-L)
Frequency:	60 Hz
Temperature Rise:	65°C
Insulation Rating:	E
Cooling Class:	ONAN; Self-Cooled
Efficiency Standard(s):	Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation):	K-1 (Standard)
Winding Material:	Copper
Ambient Temperature Rating:	40°C
Ambient Operating Temperature Range:	-40°C to +40°C (-50°F to +104°F)
Sound Level:	55 dBA
Elevation (Altitude):	3300ft (1000 meters) Above Sea Level or Below
Efficiency:	99.10%

The 125 kVA transformer features a compartmental design that strictly complies with IEEE Std C57.12.28 standards. Housed within its robust tank are separate high-voltage and low-voltage cable termination compartments, strategically aligned side by side on one side of the tank for optimized functionality and accessibility.

Single Phase Pad Mounted Transformer 125Kva 12470V Electrical Power Transformer Factory Price Meets ANSI/IEEE CSA Standards 4

Drawing

The high-voltage compartment is equipped with advanced components, including two internally interconnected high-voltage bushing wells with inserts, a 4-position loadbreak switch for safe circuit interruption, a 5-position tap changer switch for voltage regulation, and a bayonet fuse for reliable overcurrent protection. Adjacent to it, the low-voltage compartment is outfitted with three stud low-voltage bushings for efficient power transmission and an oil level gauge to monitor the transformer's operational status, ensuring seamless and safe performance.

Single Phase Pad Mounted Transformer 125Kva 12470V Electrical Power Transformer Factory Price Meets ANSI/IEEE CSA Standards 5

Specification

Single phase Pad mounted Transformer Specification
Rating	High voltage(kV)	No Load Loss	On load Loss	Height	Depth	Width	Oil Weight(kg)	Total Weight(kg)
(kVA)	High voltage(kV)	No Load Loss	On load Loss	(mm)	(mm)	(mm)	Oil Weight(kg)	Total Weight(kg)
15 kVA	34.5/19.92 13.8/8 13.2/7.6 12.47/7.2 or others	50	195	840	740	610	45	294
25 kVA		80	290	840	740	610	68	362
37.5 kVA		106	360	840	760	610	75	476
50 kVA		135	500	840	810	610	93	553
75 kVA		190	650	840	860	610	132	672
100 kVA		280	1010	910	1200	965	230	714
167 kVA		435	1530	1000	1200	965	265	913
250 kVA		550	2230	1250	1300	1430	325	1106

Production process

Single Phase Pad Mounted Transformer 125Kva 12470V Electrical Power Transformer Factory Price Meets ANSI/IEEE CSA Standards 6

Single Phase Pad Mounted Transformer 125Kva 12470V Electrical Power Transformer Factory Price Meets ANSI/IEEE CSA Standards 7

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
