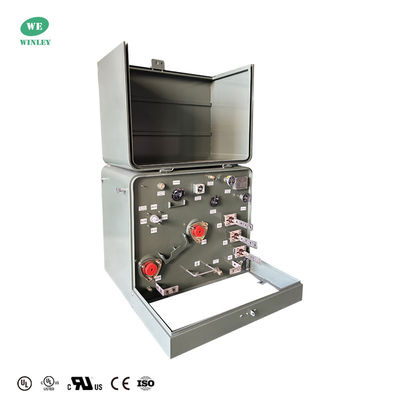

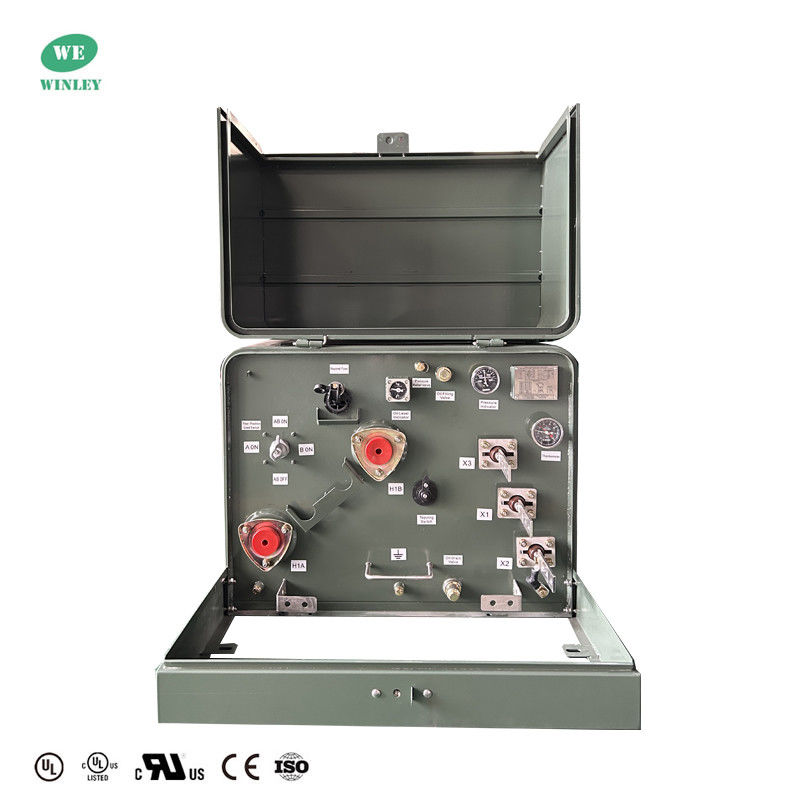

DOE 2016 Standard Single Phase Pad Mounted Transformer 100 Kva13800V To 120V UL/cUL certified

Brand Name: WINLEY
Model Number: ZGD-100/13.8
MOQ: 1unit
Price: $1000-$10000
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ISO
Capacity:
75Kva
Feed Type:
Loop Feed
Primary Voltage:
13800GrdY/7968
Secondary Voltage:
240/120V
Insulation Rating:
Class E Insulation
Vector Group:
II6
UL Certificate Number:
UL-US-2564931-0；UL-CA-2548224-0
Efficiency Standard(s):
Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
Supply Ability:
1000set/month
Highlight:

13800V Pad Mounted Transformer

,

Single Phase Pad Mounted Transformer

,

120V Pad Mounted Transformer

Product Description

DOE 2016 Standard Single Phase Pad Mounted Transformer 100 Kva13800V To 120V UL/cUL certified





Why choose us



1. WINLEY single-phase transformer has obtained UL/cUL certification, with a capacity of 10-333KVA and a voltage of up to 34.5KV
2. The products are designed according to multiple standards and meet or even exceed DOE 2016, IEEE, ANS, CSA, IEC, NEMA and other standards.
3. The monthly delivery capacity is over 800 units, and fast delivery can be achieved within 4 weeks.



 DOE 2016 Standard Single Phase Pad Mounted Transformer 100 Kva13800V To 120V UL/cUL certified 0



Main data



Transformer Type Pad Mounted, Compartmental-Type II
Transformer Feed Type Loop Feed
Polarity Additive
Phase Single Phase (Connects to 3-Phase electrical grid)
Capacity 100 KVA
Vector Group II6
Primary Voltage 13800GrdY/7968
Secondary Voltage 240/120V (L-N-L)
Frequency 60 Hz
Temperature Rise 65°C
Insulation Rating Class E Insulation - 120°C, 248°F
Cooling Class ONAN; Self-Cooled
Efficiency Standard(s) Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
Winding Material Copper
Ambient Temperature Rating 40°C
Sound Level 48 dBA
Dimensions* 33.2''-W x 39.5''-D x 25.0''-H
Total Weight (Liquid Filled)* 969.14 lb



Drawing



DOE 2016 Standard Single Phase Pad Mounted Transformer 100 Kva13800V To 120V UL/cUL certified 1



Performance Characteristic



1)Combination Transformer Substation, The top of cabinet is with steel plate clamp rock wool structure which has ventilation duct, can reduce the solar radiation effectively and ensure the heat dissipation.
2)The surface of whole cabinet shell sprays special primer and paint which has strong anti-corrosion ability.
3)The inside can be divided into high voltage chamber, transformer chamber and low voltage chamber respectively.
4) Also it is be equipped with temperature control automatic exhaust device to ensure the temperature range.
5)Each unit has impeccable control, charged display and lighting system.
6)The apparatus equipment are accord with IP33 protection requirement, have reasonable design,structure and technology, with good quality and easy maintenance.

DOE 2016 Standard Single Phase Pad Mounted Transformer 100 Kva13800V To 120V UL/cUL certified 2



Specification



Single phase Pad mounted Transformer Specification
Rating High voltage(kV) No Load Loss On load Loss Height Depth Width Oil Weight(kg) Total Weight(kg)
(kVA) (mm) (mm) (mm)
15 kVA 34.5/19.92
13.8/8
13.2/7.6
12.47/7.2
or others		 50 195 840 740 610 45 294
25 kVA 80 290 840 740 610 68 362
37.5 kVA 106 360 840 760 610 75 476
50 kVA 135 500 840 810 610 93 553
75 kVA 190 650 840 860 610 132 672
100 kVA 280 1010 910 1200 965 230 714
167 kVA 435 1530 1000 1200 965 265 913
250 kVA 550 2230 1250 1300 1430 325 1106



Ratings

  • Meets/Exceeds DOE 2016 Efficiency Ratings
  • Complies with ANSI / IEEE #C57.12.00
  • Complies with ANSI / IEEE #C57.12.25
  • Complies with ANSI / IEEE C57 12.28
  • Complies with ANSI / IEEE C57 12.38
  • Complies with ANSI / IEEE C57.12.70
  • Complies with ASTM D3487



Production process



DOE 2016 Standard Single Phase Pad Mounted Transformer 100 Kva13800V To 120V UL/cUL certified 3

DOE 2016 Standard Single Phase Pad Mounted Transformer 100 Kva13800V To 120V UL/cUL certified 4

DOE 2016 Standard Single Phase Pad Mounted Transformer 100 Kva13800V To 120V UL/cUL certified 5

DOE 2016 Standard Single Phase Pad Mounted Transformer 100 Kva13800V To 120V UL/cUL certified 6



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
