ANSI IEEE Standard 25kva Single Phase Pad Mounted Transformer 4160GrdY/2400 Customized For Residential

Why choose us

1. The single phase pad mounted transformers produced by WINLEY are safe, environmentally friendly and customizable, with a capacity of 10-333KVA and a voltage of up to 34.5KV.
2. The products are designed according to multiple standards and meet or even exceed DOE 2016, IEEE, ANS, CSA, IEC, NEMA and other standards.
3. The monthly delivery capacity is over 800 units, and fast delivery can be achieved within 4 weeks.

Main data

Standard Features

• HV Bushings*2
• LV Bushings*3
• Tap Changer*1
• Bayonet Fuse*1
• ELSP Fuse*1ELSP
• Oil Level Gauge*1
• Pressure Relief Valve*1
• Thermomter*1
• Fill Plug*1
• Drain Valve*1
• Ground Strap Copper*1
• Grounding Spade Terminal*2

Drawing

Performance Characteristic

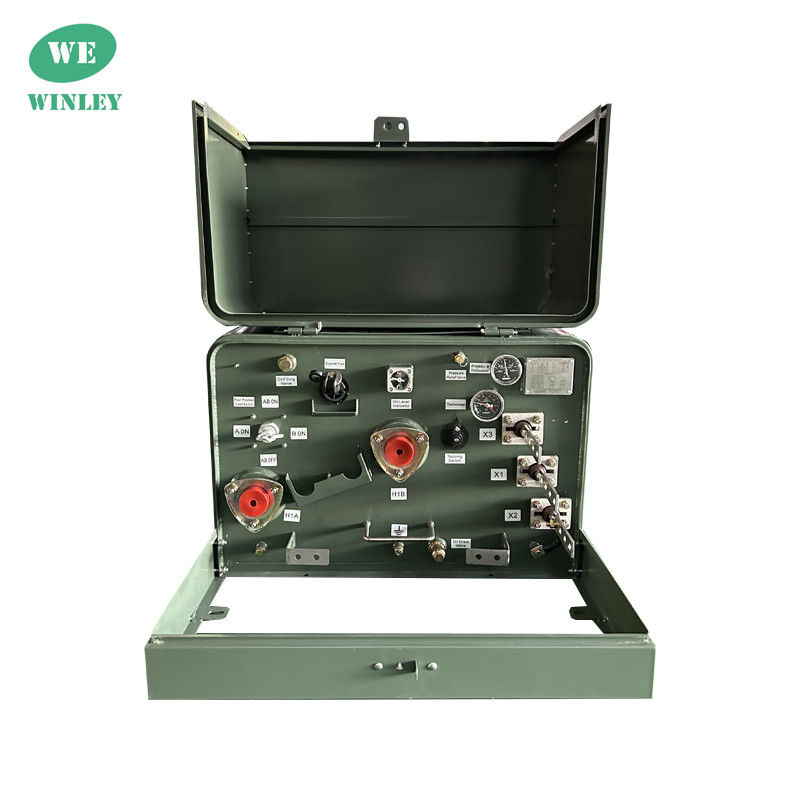

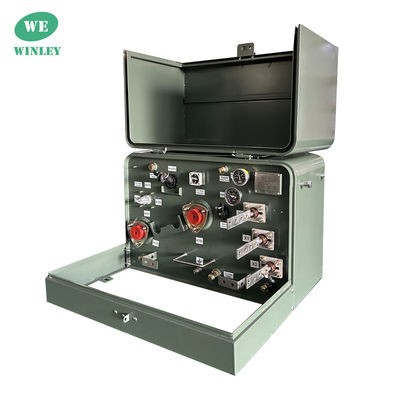

1)Single phase pad mounted transformers are placed inside a cabinet with doors and locks, usuallylocated outdoors.
2)These transformers are manulactured with ratings from 15-250 kVA.
3)Al of these distribution transformers are oil-insulated, sef-cooled,available in loop or radial feed, and are dead-front
4)These transformers come in two basic configurations radia and loop feed,which are selectied based on the type of circuit on which the transformers wil be insalled.
5)ANSI single-phase pad-mounted transformers come equipped with a clamshell cabinet for ease of opening and uninhibited access to connections. The versatility of the design allows for various protective and switching configurations.
