50Kva Single Phase Pad Mounted Transformer 12.47KV Meets DOE 2016 ANSI/IEEE Standards

The single phase pad mounted transformers WINLEY produce fully comply with or even exceed ANSI/IEEE, DOE, CSA and other standards, , delivering more than 600 units per month, and can deliver quickly within 7-35 days.

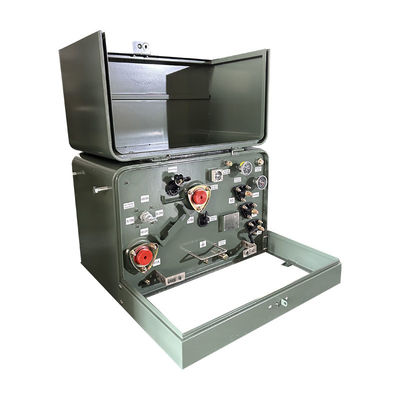

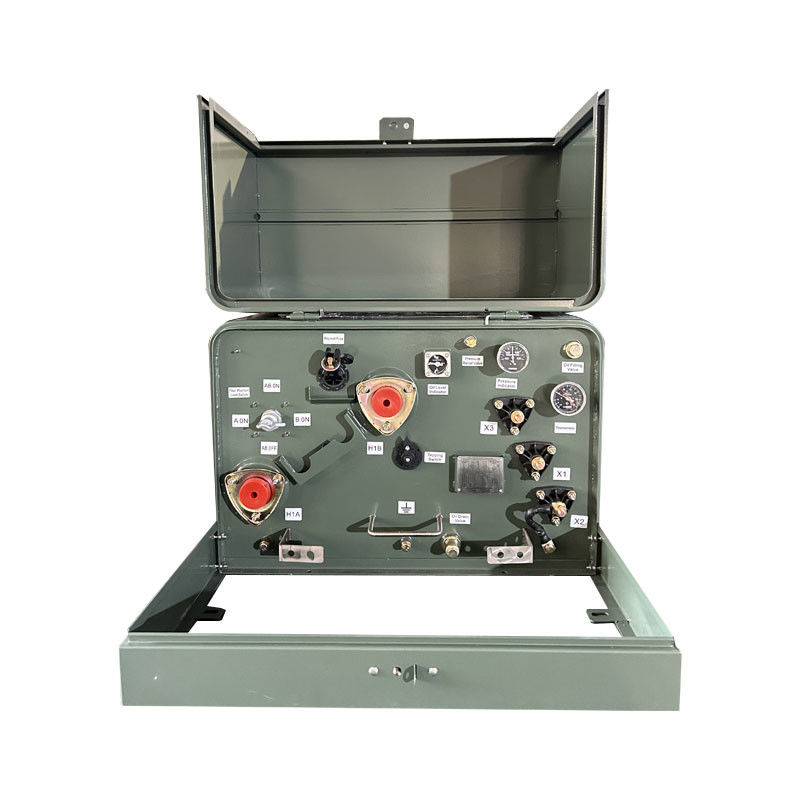

product Structure

Main data

Features

These 50 kVA transformers are meticulously designed and manufactured in strict accordance with IEEE Std C57.12.38. They serve as medium-voltage distribution transformers within underground power distribution systems. The primary voltage is rated at 12470GRDY/7200V, with a secondary voltage of 240/120V. Operating at a frequency of 60Hz, these transformers achieve an outstanding efficiency rating of up to 99.11% and boast an impedance value of approximately 2%. Furthermore, the on-load loss value remains under 441W, and the no-load loss value does not exceed 125W. To ensure seamless integration into various environments, the transformers are finished with Munsell Green paint, enabling them to blend harmoniously with their surroundings, including parks, hotels, villas, and residences.

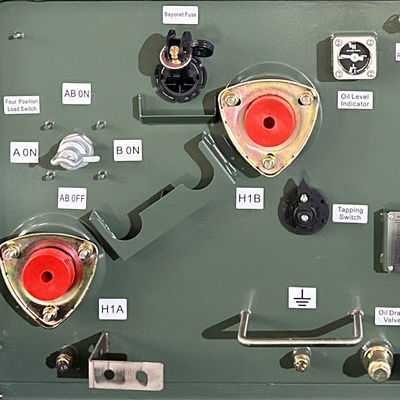

On the high-voltage side, the 50 kVA pad-mounted transformer is equipped with two 15 kV 200A HV bushing wells, each with precision-engineered inserts and protective dust caps. Safety is a paramount consideration, which is why a double fuse protection system, consisting of bayonet and ELSP fuses, is incorporated. This system effectively guards against overcurrents during transformer operation, reducing the risk of damage from short circuits and other faults. The bayonet fuse, known for its plug-in design, simplifies maintenance. To prevent insulating oil from dripping onto other areas of the transformer during maintenance or in the event of a fuse failure, a drip tray is thoughtfully positioned beneath the bayonet fuse installation site.

Product drawings

Specification

Ratings

Complies with ANSI / IEEE #C57.12.00
Complies with ANSI / IEEE #C57.12.25
Complies with ANSI / IEEE C57 12.28
Complies with ANSI / IEEE C57 12.38
Complies with ANSI / IEEE C57.12.70
Complies with ASTM D3487

Production process

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
