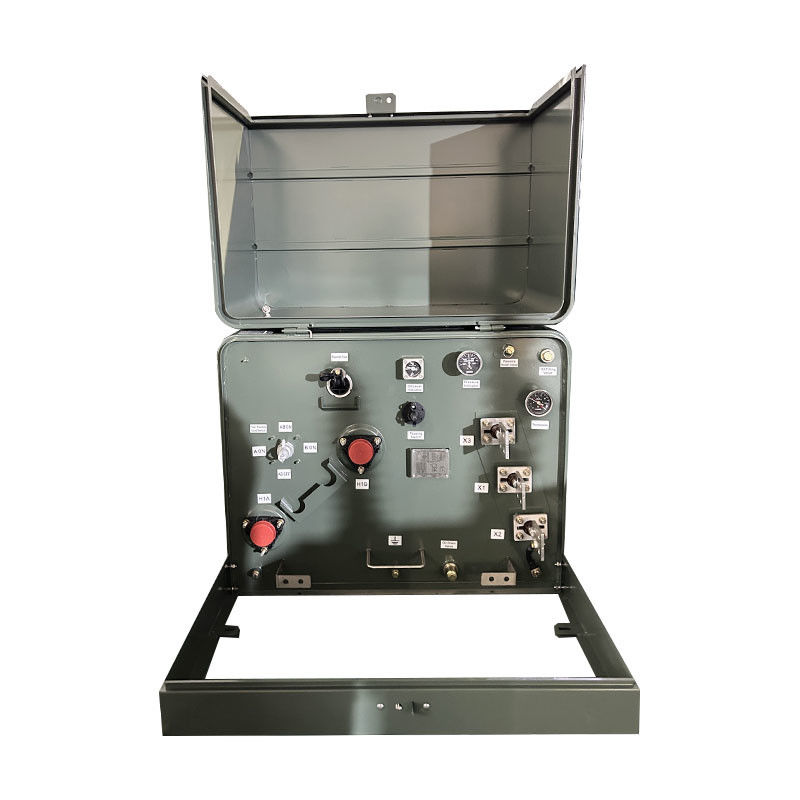

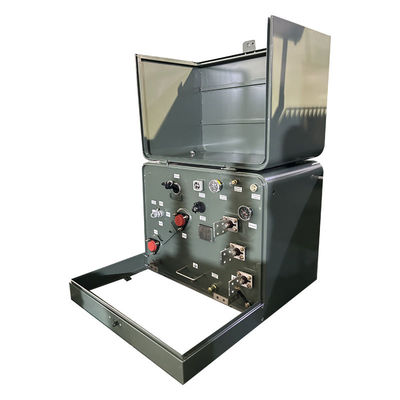

167 Kva Single Phase Pad Mounted Power Distribution Transformer IEEE ANSI Standard 34.5KV To 240/120V
| Brand Name: | WINLEY |
| Model Number: | D-167/34.5 |
| MOQ: | 1unit |
| Price: | $1000-$10000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T |
Pad Mounted Power Distribution Transformer
,Single Phase Power Distribution Transformer
167 kva Single Phase Pad Mounted Power Distribution Transformer IEEE ANSI Standard 34.5KV To 240/120V
- Primary Voltage Ratings: 34.5kV/19.92kV, 24.94kV/14.4kV, 13.8kV/7.957kV, 13.2kV/7.62kV, 12.47kV/7.2kV or others
- Secondary Voltage Ratings: 120/240V, 240/480V, 347V, 600V or others
- H.V. TAP RANGE: ±2×2.5% or others
- TYPE: Loop feed/Radial feed
- BIL: 30-150
- Application: Residential Areas, Hotels, Single Family Houses, Parks, Underground Distribution Systems
- Power Rating: 15-333 kVA
- Efficiency Ratings:
- Meets/Exceeds DOE 2016
- Complies with ANSI / IEEE #C57.12.00
- Complies with ANSI / IEEE #C57.12.25
- Complies with ANSI / IEEE C57 12.28
- Complies with ANSI / IEEE C57 12.38
- Complies with ANSI / IEEE C57.12.70
- Complies with ASTM D3487
Product Structure
Main data
| Mounting | Pad Mount |
| Phase | Single Phase |
| kVA | 167 |
| Primary Voltage | 34500GrdY/19920 |
| Secondary Voltage | 240/120V (L-N-L) |
| Frequency | 60 Hz |
| Temperature Rise | 60°C |
| Tap Changer | ±2.5% |
| Efficiency | Meet DOE 2016 Standard |
| Insulation Fluid | Mineral Oil |
| Cooling Class | ONAN |
| Protection Fuses | Bayonet Fusing |
| Load Break Switch | 4-postion Load Break Switch |
| Feed | Loop |
| Winding Material | Copper |
| Dimensions | 30 x 45 x 35 |
| Weight | +/- 1,640 lb |
Product drawings
Feature
- Pentahead Entry Assembly
- High-Fire Point Natural Ester Insulating Fluid
- Non-PCB Insulating Fluid
- Tamper Proof Housing
- Lift Up Pad lockable Lid
Specification
| Single phase Pad mounted Transformer Specification | ||||||||
| Rating | High voltage(kV) | No Load Loss | On load Loss | Height | Depth | Width | Oil Weight(kg) | Total Weight(kg) |
| (kVA) | (mm) | (mm) | (mm) | |||||
| 15 kVA | 34.5/19.92 13.8/8 13.2/7.6 12.47/7.2 or others |
50 | 195 | 840 | 740 | 610 | 45 | 294 |
| 25 kVA | 80 | 290 | 840 | 740 | 610 | 68 | 362 | |
| 37.5 kVA | 106 | 360 | 840 | 760 | 610 | 75 | 476 | |
| 50 kVA | 135 | 500 | 840 | 810 | 610 | 93 | 553 | |
| 75 kVA | 190 | 650 | 840 | 860 | 610 | 132 | 672 | |
| 100 kVA | 280 | 1010 | 910 | 1200 | 965 | 230 | 714 | |
| 167 kVA | 435 | 1530 | 1000 | 1200 | 965 | 265 | 913 | |
| 250 kVA | 550 | 2230 | 1250 | 1300 | 1430 | 325 | 1106 |
|
