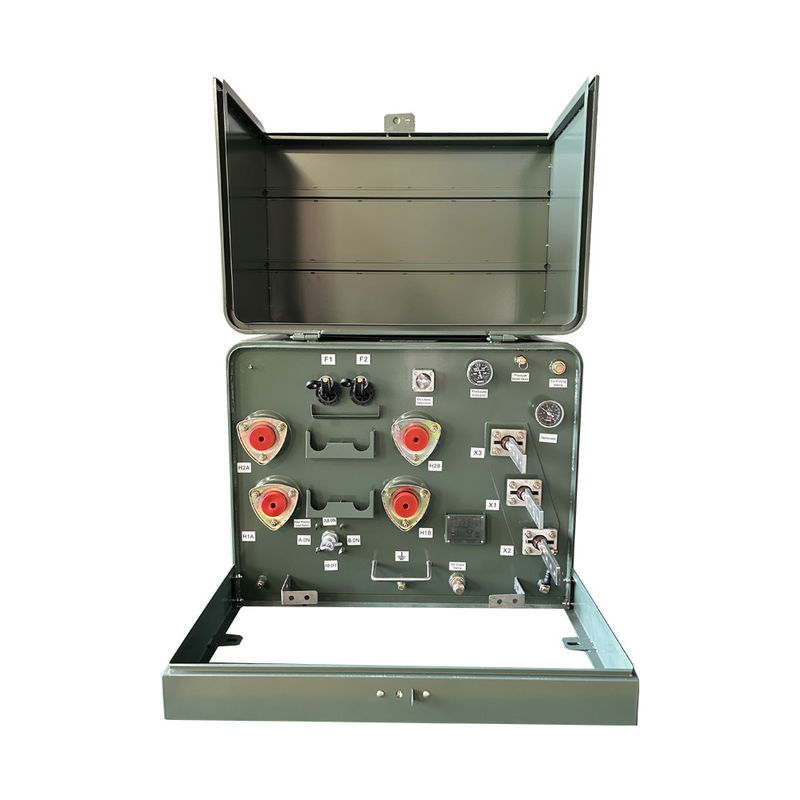

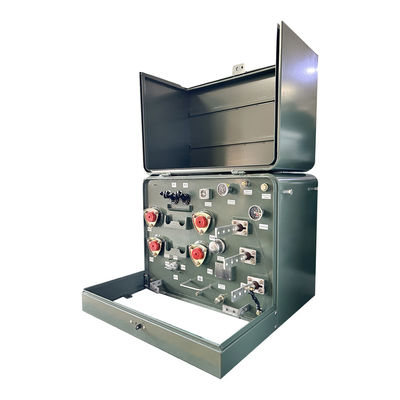

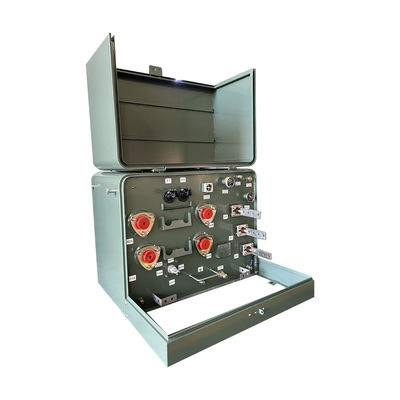

Residential Single Phase Pad Mounted Transformer Distribution Transformer 230V To 2400V Loop Feed​

Single-phase pad-mounted transformers are housed in secure cabinets equipped with doors and locks, typically situated outdoors. They come with ratings ranging from 15 to 250 kVA. All these distribution transformers are oil-insulated, self-cooled, and available in either loop or radial feed configurations, and they feature a dead-front design. The choice between radial and loop feed configurations depends on the type of circuit where the transformers will be installed.

product details

Main data

Product drawings

Standard Features

1. Safe and reliable: The pad-mounted transformer adopts efficient insulation protection and heat dissipation equipment, and the structure of the cable cabinet is reasonable, which can effectively ensure the safety and reliability of power equipment. It has strong overload capacity: it allows overload of 2 times for 2 hours and overload of 1.6 times for 7 hours, but it does not affect the life of the pad-mounted transformer.

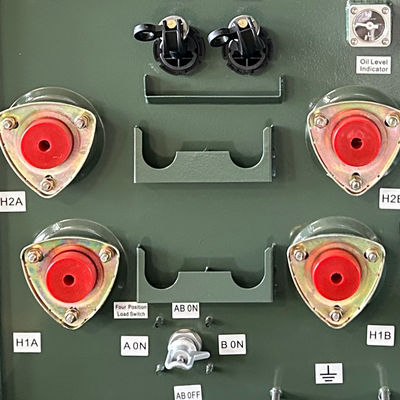

2. The elbow plug is adopted: it is very convenient to connect the high-voltage incoming cable, and it can be plugged and unplugged with power.
3. Strong defense ability: The pad-mounted transformer has strong defense ability, which can effectively resist the instantaneous voltage peak in the power equipment and protect the equipment from damage.
4. Double fuse protection is adopted:

 a. The plug-in fuse is a dual-sensitive fuse (temperature, current) to protect the secondary side of the box transformer, and

 b. The backup current limiting protection fuse (ELSP) protects the fault inside the box transformer and is used to protect the high-voltage side.
5. Long life: The transformer adopts high-quality materials and high-tech production technology, which is durable and has a longer service life. The overall service life is higher than that of ordinary oil-immersed transformers.
6. Pad-mounted transformers are divided into terminal type and ring network type (one transformer can supply power to another transformer at the same time). The conversion is very convenient, which improves the power supply distance and reliability.
7. Energy saving and environmental protection: In the design and use of pad-mounted transformers, energy saving and environmental protection are emphasized (FR3 environmentally friendly vegetable oil is now mostly used), which can ensure not only high energy efficiency, but also reduce energy waste and reduce pollution to the environment.

Specification

Production process

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
