Single Phase Pad Mounted Transformer
>
ANSI Standard Single Phase Pad Mounted Power Transformer 167Kva 12.47 KV To 120V ANSI IEEE
Detail Information
Place of Origin:
CHINA
Certification:
CE,ISO
Transformer Type:
Pad Mount Transformer
Capacity:
167Kva
Primary Voltage:
12470GrdY/7200
Secondary Voltage:
240/120V (L-N-L)
Feed Type:
Loop Feed
Cooling Class:
ONAN; Self-Cooled
Efficiency:
DOE 2016
Total Load Loss:
2280W
Delivery Time:
30days
Supply Ability:
1000set/month
Highlight:

120V Pad Mounted Power Transformer

,

12.47 KV Pad Mounted Power Transformer

,

167Kva Pad Mounted Power Transformer

Product Description

ANSI Standard Single Phase Pad Mounted Power Transformer 167Kva 12.47 KV To 120V aNSI IEEE





  • WINLEY Transformer produces muliple standards of single phase pad-mounted transfomers. Single phase pad mounted transformers are placed inside a cabinet with doors and locks, usuallylocated outdoors. These transformers are manulactured with ratings from 15-333 kVA.
  • Al of these distribution transformers are oil-insulated, self-cooled,available in loop or radial feed, and are dead-front
  • These transformers come in two basic configurations radia and loop feed,which are selectied based on the type of circuit on which the transformers wil be insalled.
  • The transformer applicable standards(ANSI,IEEE, DOE, CSA and NEMA)



product details

ANSI Standard Single Phase Pad Mounted Power Transformer 167Kva 12.47 KV To 120V ANSI IEEE 0



Main data



Transformer Type Pad Mounted, Compartmental-Type
Transformer Feed Type Loop Feed
Phase Single Phase
Capacity 167
Primary Voltage 12470GrdY/7200
Secondary Voltage 240/120V (L-N-L)
Frequency 60 Hz
Temperature Rise 65°C
Cooling Class ONAN; Self-Cooled
Impedance 2.75%
Efficiency Meet DOE 2016 Standard
Winding Material Copper
Ambient Temperature Rating 40°C
Sound Level 55 dBA
Elevation (Altitude) 3300ft (1000 meters) Above Sea Level
Tank Material Coated Steel
Dimensions* 41-L x 43.3-D x 31.70-H
Weight* 1950 lb
Efficiency 99.10%
No Load Loss (in watts)* +/- 450W
Load Loss (in watts)* +/- 1830W



Product drawings

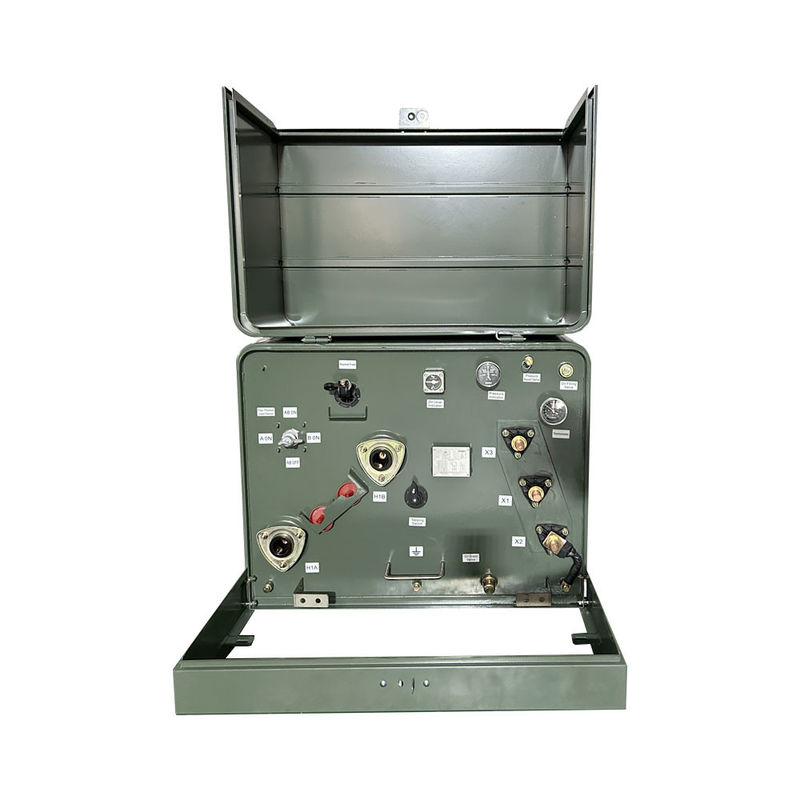

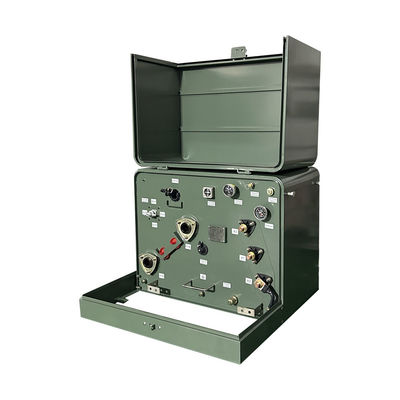

ANSI Standard Single Phase Pad Mounted Power Transformer 167Kva 12.47 KV To 120V ANSI IEEE 1



Feature

  1. Pressure relief device
  2. Fluid fill and drain provisions
  3. Laser engraved nameplate
  4. Floating lock pocket for easy alignment
  5. Decal bushing designations
  6. Welded domed tank cover
  7. Click Here Get Transformer Drawings
  8. Tamper strips of noncorrosive material
  9. Crowned tank
  10. Removable sill
  11. Hinged door with stainless steel hinge pins and barrels
  12. Ground strap fromX2 to tank ground

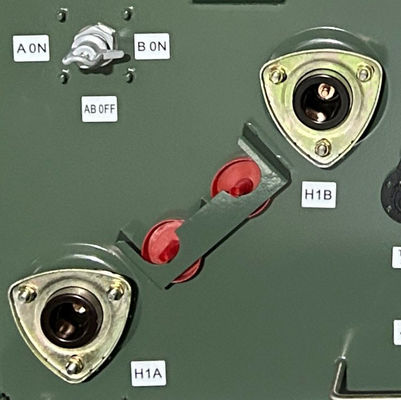

  13. HV bushing wells for dead front elbow connectors
  14. High voltage bushing wells-200A and low voltage bushing





Specification



Single phase Pad mounted Transformer Specification
Rating High voltage(kV) No Load Loss On load Loss Height Depth Width Oil Weight(kg) Total Weight(kg)
(kVA) (mm) (mm) (mm)
15 kVA 34.5/19.92
13.8/8
13.2/7.6
12.47/7.2
or others		 50 195 840 740 610 45 294
25 kVA 80 290 840 740 610 68 362
37.5 kVA 106 360 840 760 610 75 476
50 kVA 135 500 840 810 610 93 553
75 kVA 190 650 840 860 610 132 672
100 kVA 280 1010 910 1200 965 230 714
167 kVA 435 1530 1000 1200 965 265 913
250 kVA 550 2230 1250 1300 1430 325 1106






Optional Accessories

ANSI Standard Single Phase Pad Mounted Power Transformer 167Kva 12.47 KV To 120V ANSI IEEE 2



Production process



ANSI Standard Single Phase Pad Mounted Power Transformer 167Kva 12.47 KV To 120V ANSI IEEE 3

ANSI Standard Single Phase Pad Mounted Power Transformer 167Kva 12.47 KV To 120V ANSI IEEE 4

ANSI Standard Single Phase Pad Mounted Power Transformer 167Kva 12.47 KV To 120V ANSI IEEE 5

ANSI Standard Single Phase Pad Mounted Power Transformer 167Kva 12.47 KV To 120V ANSI IEEE 6
