Single Phase Pad Mounted Transformer
>

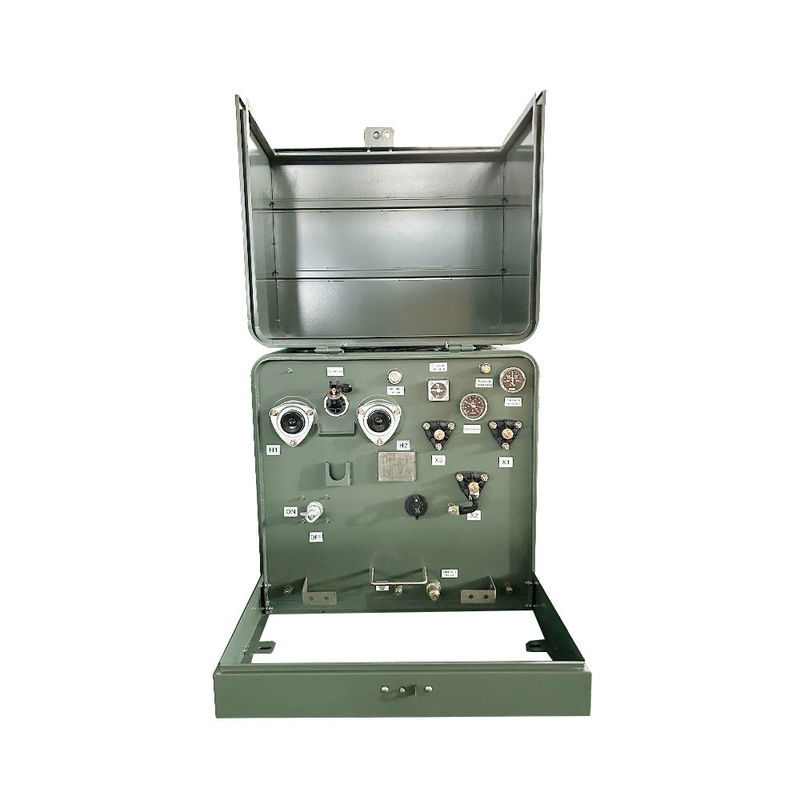

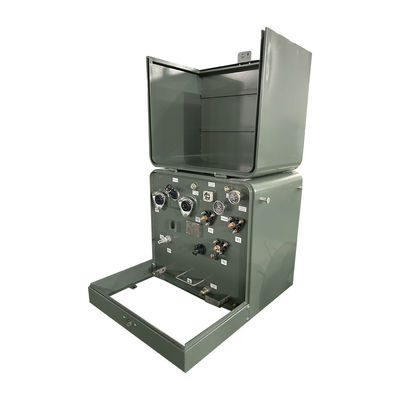

50kva Single Phase Pad Mounted Transformer ANSI IEEE Standards 22860GrdY To 240V Radial Feed

50kva Single Phase Pad Mounted Transformer ANSI IEEE Standards 22860GrdY To 240V Radial Feed

Brand Name: WINLEY
Model Number: D-50/22.86
MOQ: 1unit
Price: $1000-$10000
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
CE,ISO
Phase:
Single Phase
Rated Capacity:
50KVA
Primary Voltage:
22860GrdY/13200
Secondary Voltage:
240/120V (L-N-L)
Cooling Class:
KNAN; Self-Cooled
Temperature Rise:
65°C
Frequency:
60 Hz
Standards:
DOE 2016、 ANSI/IEEE
Supply Ability:
1000set/month
Highlight:

ANSI IEEE Standards Pad Mounted Transformer

,

50kva Pad Mounted Transformer

,

240V Pad Mounted Transformer

Product Description

50kva Single Phase Pad Mounted Transformer ANSI IEEE Standards Radial Feed​ 22860GrdY To 240V





The single phase pad mounted transformers WINLEY produce fully comply with or even exceed ANSI/IEEE, DOE, CSA and other standards, and we independently produce key components such as oil tanks and cores, delivering more than 600 units per month, and can deliver quickly within 7-35 days.



product structure



50kva Single Phase Pad Mounted Transformer  ANSI IEEE Standards 22860GrdY To 240V Radial Feed 0





Main data



Transformer Type Pad Mounted, Compartmental-Type I
Transformer Feed Type Radial Feed
Phase Single Phase
Capacity 50
Vector Group II6
Primary Voltage 22860GrdY/13200
Secondary BIL 30 KV
Frequency 60 Hz
Temperature Rise 65°C
Cooling Class KNAN; Self-Cooled
K-Factor Rating (Harmonic Mitigation) K-1 (Standard)
Insulation Fluid Biodegradable Oil - Non PCB Fluid
Winding Material Copper
Ambient Temperature Rating 40°C
Sound Level 48 dBA
Elevation (Altitude) 3300ft (1000 meters) Above Sea Level
Core Material Grain Oriented Steel
Tank Material Coated Steel
Efficiency 99.15%
No Load Loss (in watts)* +/- 170W
Load Loss (in watts)* +/- 640W



Drawing



50kva Single Phase Pad Mounted Transformer  ANSI IEEE Standards 22860GrdY To 240V Radial Feed 1



Performance Characteristic



1)Combination Transformer Substation, The top of cabinet is with steel plate clamp rock wool structure which has ventilation duct, can reduce the solar radiation effectively and ensure the heat dissipation.
2)The surface of whole cabinet shell sprays special primer and paint which has strong anti-corrosion ability.
3)The inside can be divided into high voltage chamber, transformer chamber and low voltage chamber respectively.
4) Also it is be equipped with temperature control automatic exhaust device to ensure the temperature range.
5)Each unit has impeccable control, charged display and lighting system.
6)The apparatus equipment are accord with IP33 protection requirement, have reasonable design,structure and technology, with good quality and easy maintenance.



Specification



25kva-500kva single phase pad mounted transformer
Rated Cap acity(kVA) High Low Voltage(v) Connection Symbol Standard Short-circuit impedance(%) Efficiency
Voltage(v) (%)
25 4160 7200 12000 12470 13200 13800 19920 24940 34500 110 220 230 400 480 II0,II6 IEEE/ANSI/ DOE 1.0-4.5% 98.95
37.5 99.05
50 99.11
75 99.19
100 99.25
167 99.33
250 99.39
333 99.43
500 99.49



Accessories



50kva Single Phase Pad Mounted Transformer  ANSI IEEE Standards 22860GrdY To 240V Radial Feed 2



Production process



50kva Single Phase Pad Mounted Transformer Oil Type 13200v To 240v 2

50kva Single Phase Pad Mounted Transformer Oil Type 13200v To 240v 3

50kva Single Phase Pad Mounted Transformer  ANSI IEEE Standards 22860GrdY To 240V Radial Feed 5

50kva Single Phase Pad Mounted Transformer Oil Type 13200v To 240v 4



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
