Single Phase Pad Mounted Transformer

75kva Single Phase Pad Mounted Transformer Loop Feed 34500GrdY/19950 To 240/120V Dual Winding

All Category

Three Phase Isolation Transformer

Three Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Industrial Control Transformer

Single Phase Control Transformer

Toroidal Isolation Transformer

Three Phase Dry Type Transformer

Three Phase Reactor

Mr. Steven

steven@winley-electric.com

86-18650108051

Contact Now

75kva Single Phase Pad Mounted Transformer Loop Feed 34500GrdY/19950 To 240/120V Dual Winding

Brand Name:	WINLEY
Model Number:	D-75/34.5
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Phase:

Single Phase

Rated Capacity:

75KVA Or Customized

Primary Voltage:

34500GrdY/19950

Secondary Voltage:

240/120V

Cooling Class:

KNAN; Self-Cooled

Feed:

Loop Feed

Winding Material:

Copper/Aluminium

K-Factor Rating:

Supply Ability:

1000set/month

Highlight:

75kva Pad Mounted Transformer

Self-Cooled Cooling Pad Mounted Transformer

240/120V Pad Mounted Transformer

Product Description

75kva Single Phase Pad Mounted Transformer Loop Feed 34500GrdY/19950 To 240/120V Dual Winding

The single phase pad mounted transformers WINLEY produce fully comply with or even exceed ANSI/IEEE, DOE, CSA and other standards, and we independently produce key components such as oil tanks and cores, delivering more than 600 units per month, and can deliver quickly within 7-35 days.

product structure

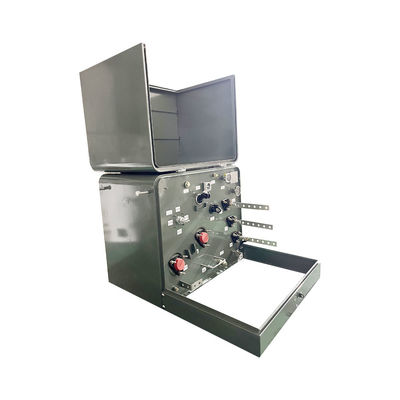

75kva Single Phase Pad Mounted Transformer Loop Feed 34500GrdY/19950 To 240/120V Dual Winding 0

Main data

Transformer Type	Pad Mounted, Compartmental-Type II
Phase	Single Phase
Capacity	75
Vector Group	II6
Primary Voltage	34500GrdY/19950
Secondary Voltage	240/120V (L-N-L)
Secondary Phasor	Dual Winding Single Phase
Secondary BIL	30 KV
Frequency	60 Hz
Temperature Rise	65°C
Cooling Class	KNAN; Self-Cooled
Efficiency Standard(s)	Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation)	K-4
Winding Material	Copper
Ambient Temperature Rating	40°C
Sound Level	50 dBA
Elevation (Altitude)	3300ft (1000 meters) Above Sea Level or Lower
Tank Material	Coated Steel
Dimensions*	33''-W x 34''-D x 24''-H
Weight*	1000 lb
Efficiency	99.10%

Drawing

75kva Single Phase Pad Mounted Transformer Loop Feed 34500GrdY/19950 To 240/120V Dual Winding 1

Performance Characteristic

1)Single phase pad mounted transformers are placed inside a cabinet with doors and locks, usuallylocated outdoors.
2)These transformers are manulactured with ratings from 15-250 kVA.
3)Al of these distribution transformers are oil-insulated, sef-cooled,available in loop or radial feed, and are dead-front
4)These transformers come in two basic configurations radia and loop feed,which are selectied based on the type of circuit on which the transformers wil be insalled.

Specification

25kva-500kva single phase pad mounted transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
	Voltage(v)					(%)
25	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.0-4.5%	98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43
500						99.49
