Single Phase Pad Mounted Transformer
>
100kva Single Phase Pad Mounted Transformer Residential Outdoor Ansi C57 34.5v To 120v

100kva Single Phase Pad Mounted Transformer Residential Outdoor Ansi C57 34.5v To 120v

Brand Name: WINLEY
Model Number: D-100/35
MOQ: 1unit
Price: $1000-$10000
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
CE,ISO
Phase:
Single Phase
Rated Capacity:
75KVA
Primary Voltage:
34.5KV
Secondary Voltage:
120/240
Cooling Class:
ONAN
Frequency:
60 HZ
Winding Material:
Copper
Insulation Rating:
E
Supply Ability:
1000set/month
Highlight:

Residential Pad Mounted Transformer

,

100kva Pad Mounted Transformer

,

120v Pad Mounted Transformer

Product Description

100kva Single Phase Pad Mounted Transformer Residential Outdoor Ansi C57 34.5v To 120v





  • Power Rating: 15-333 kVA
  • Primary Voltage Ratings: 34.5kV/19.92kV, 24.94kV/14.4kV, 13.8kV 13.2kV 12.47kV/7.2kV or others
  • Secondary Voltage Ratings: 120/240V, 240/480V, or others
  • Standards: ANSI, IEEE, DOE

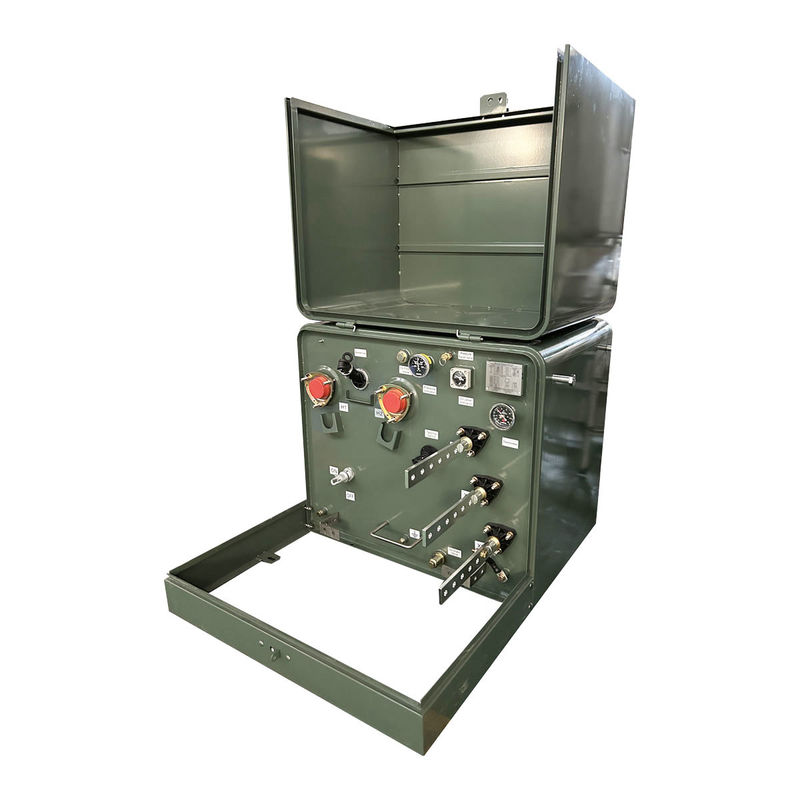

100kva Single Phase Pad Mounted Transformer Residential Outdoor Ansi C57 34.5v To 120v 0




product details

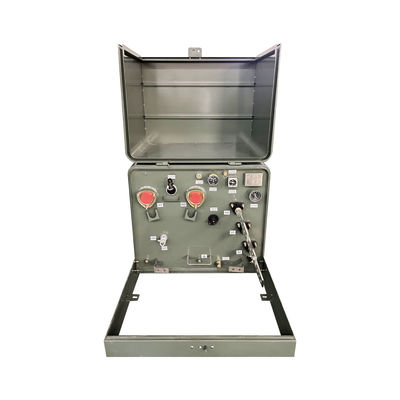

100kva Single Phase Pad Mounted Transformer Residential Outdoor Ansi C57 34.5v To 120v 1

The single-phase pad-mounted transformer is designed to improve performance in terms of rated KVA, compact dimensions, lower weight, safety and sustainability. There is no distribution room, can be placed directly indoors or outdoors, can also be placed on the streets and green belt and reliably ensure personal safety, both the power supply facilities, but also decorate the environment. It is low-profile, compartment type transformer, which supplies suitable for outdoor mounting on pads without additional protective enclosures, and meet the following standard: IEC60076, ANSI/IEEEC57.12.00, C57.12.38, C57.12.90 .



Main data



Phase Single Phase
Capacity 100 KVA
Vector Group II6
Primary Voltage 34500V
Primary Voltage Class 35 kV Class
Primary BIL 150 KV
Secondary Voltage 120/240
Secondary Voltage Class 1.2 kV Class
Secondary BIL 30 KV
Frequency 60 Hz
Temperature Rise 65°C
Insulation Rating Class E Insulation - 120°C, 248°F
Cooling Class ONAN; Self-Cooled
Tap Changer 5-Position Tap Changer
Winding Material Aluminum
Ambient Temperature Rating 40°C
Sound Level 51 dBA
Elevation (Altitude) 3300ft (1000 meters) Above Sea Level or Below



Drawing



100kva Single Phase Pad Mounted Transformer Residential Outdoor Ansi C57 34.5v To 120v 2



Specification



25kva-500kva single phase pad mounted transformer
Rated Cap acity(kVA) High Low Voltage(v) Connection Symbol Standard Short-circuit impedance(%) Efficiency
Voltage(v) (%)
25 4160 7200 12000 12470 13200 13800 19920 24940 34500 110 220 230 400 480 II0,II6 IEEE/ANSI/ DOE 1.0-4.5% 98.95
37.5 99.05
50 99.11
75 99.19
100 99.25
167 99.33
250 99.39
333 99.43
500 99.49




Production process



50kva Single Phase Pad Mounted Transformer Oil Type 13200v To 240v 2

50kva Single Phase Pad Mounted Transformer Oil Type 13200v To 240v 3

13.2kv 480V Secondary Voltage Single Phase Pad Mounted Transformer Oil Type 250kVA 5

50kva Single Phase Pad Mounted Transformer Oil Type 13200v To 240v 4



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
