75KVA Single Phase Pad Mounted Transformer Outdoor ANSI C57 24.94V To 120V

Brand Name:	WINLEY
Model Number:	D-75/25
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Phase:

Single Phase

Rated Capacity:

75KVA

Primary Voltage:

24.94KV

Secondary Voltage:

120/240 (L-N-L)

Cooling Class:

KNAN; Self-Cooled

Frequency:

60 HZ

Winding Material:

Copper

Sound Level:

51 DBA

Supply Ability:

1000set/month

Highlight:

ANSI C57 Pad Mounted Transformer

120V Pad Mounted Transformer

75KVA Pad Mounted Transformer

Product Description

75KVA Single Phase Pad Mounted Transformer outdoor ANSI C57 24.94V To 120V

The single phase pad mounted transformers we produce fully comply with or even exceed ANSI/IEEE, DOE, CSA and other standards, and we independently produce key components such as oil tanks and cores, delivering more than 600 units per month, and can deliver quickly within 7-35 days.

product details

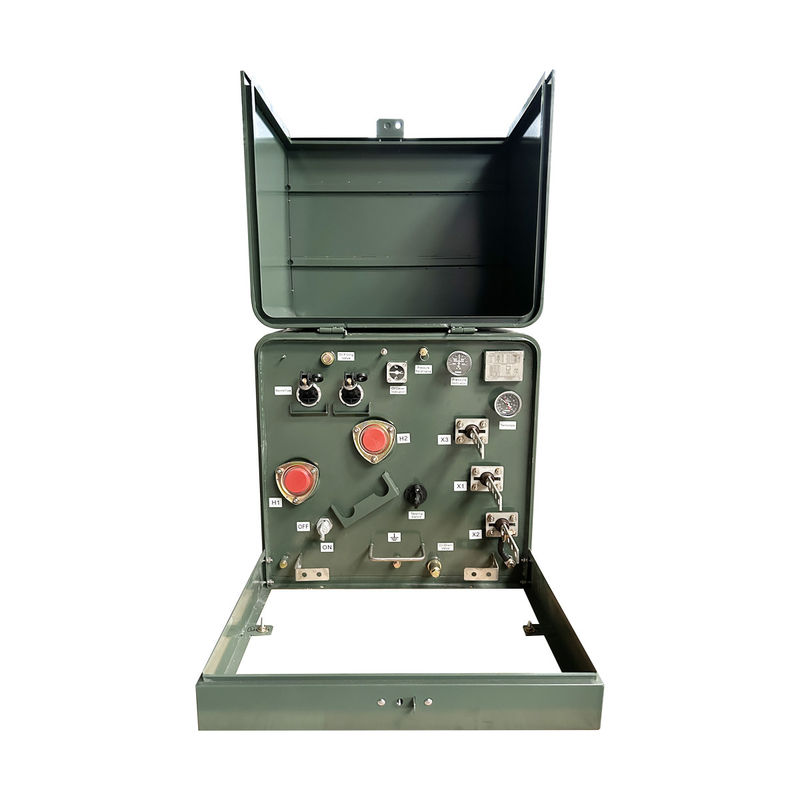

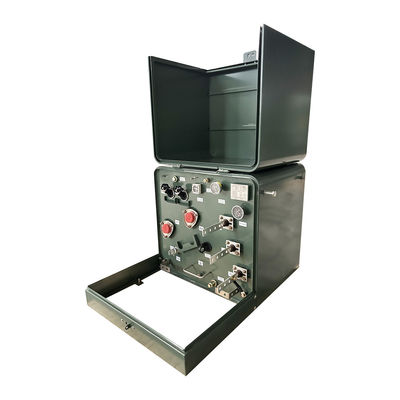

75KVA Single Phase Pad Mounted Transformer Outdoor ANSI C57 24.94V To 120V 1

Feature

• Meet or exceeds ANSI®, IEEE® and NEMA® standards
• Meets DOE Energy Efficiency Standard 10 CFR Part 431 for distribution transformers
• Tank coating exceeds IEEE Std C57.12.28™-2005 and IEEE Std C57.12.29™-2005 standards (stainless steel units only)
• Full compliance with IEEE Std C57.12.28™-2005 standard enclosure integrity requirements
• Laser engraved nameplate
• Recessed stainless steel lifting provisions
• Tank grounding provisions
• Automatic pressure relief device
• Electrical grade mineral oil
• Hinged door with stainless steel hinge pins and barrels
• Floating lock pocket for easy alignment
• Captive stainless steel pentahead door locking bolt
• Oil fill and drain provisions
• Removable sill
• Welded domed tank cover
• High-voltage bushing wells - 200 A

Main data

Phase	Single Phase
Capacity	75 KVA
Vector Group	II6
Primary Voltage	24940GrdY/14400
Secondary Voltage	120/240 (L-N-L)
Secondary BIL	30 KV
Frequency	60 Hz
Temperature Rise	65°C
Insulation Rating	Class E Insulation - 120°C, 248°F
Cooling Class	KNAN; Self-Cooled
Tap Changer	5-Position Tap Changer, Hot Stick Operable
Fluid (Oil) Capacity*	66 Gallons
Winding Material	Copper
Ambient Temperature Rating	30°C
Ambient Operating Temperature Range	-40°C to +40°C (-50°F to +104°F)
Sound Level	51 dBA
Elevation (Altitude)	3300ft (1000 meters) Above Sea Level or Below
Core Material	Grain Oriented Steel
Dimensions*	37.3''-W x 45.5''-D x 29.4''-H
Total Weight (Liquid Filled)*	1499.12 Lbs
Ratings	Meets/Exceeds DOE 2016 Efficiency Ratings
Efficiency	99.10%

Drawing

75KVA Single Phase Pad Mounted Transformer Outdoor ANSI C57 24.94V To 120V 2

Specification

25kva-500kva single phase pad mounted transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
	Voltage(v)					(%)
25	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.0-4.5%	98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43
500						99.49

Accessories

Production process

50kva Single Phase Pad Mounted Transformer Oil Type 13200v To 240v 2

50kva Single Phase Pad Mounted Transformer Oil Type 13200v To 240v 3

75KVA Single Phase Pad Mounted Transformer Outdoor ANSI C57 24.94V To 120V 6

50kva Single Phase Pad Mounted Transformer Oil Type 13200v To 240v 4

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
