Cast Coil Transformer

SCB(14）Class H Three Phase Resin Cast Dry Type Transformer 500 Kva 10KV To 0.4KV

All Category

Three Phase Isolation Transformer

Three Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Industrial Control Transformer

Single Phase Control Transformer

Toroidal Isolation Transformer

Three Phase Dry Type Transformer

Three Phase Reactor

Mr. Steven

steven@winley-electric.com

86-18650108051

Contact Now

SCB(14）Class H Three Phase Resin Cast Dry Type Transformer 500 Kva 10KV To 0.4KV

Brand Name:	WINLEY
Model Number:	SCB10-100/10
MOQ:	1unit
Price:	$5000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Type Of Application:

Distribution

Rated Capacity:

500KVA

Cooling Method:

Frequency:

50Hz/60Hz

Primary Winding:

10000V

Secondary Winding:

Enclosure:

Temperature Rise:

Supply Ability:

1000set/month

Highlight:

0.4KV Resin Cast Dry Type Transformer

10KV Resin Cast Dry Type Transformer

Product Description

3 Phase Resin Cast Dry Type Transformer 100 kva - 2500 kva Class H 10KV to 0.4KV

Epoxy resin dry-type transformers Moisture-proof and corrosion-resistant ability ,especially for work in extreme environmental conditions.It is suitable for densely populated places and places with high environmental protection requirements, such as commercial centers, hospitals, schools, etc. Due to their lower fire risk and environmental protection characteristics, dry-type transformers have great advantages in these scenarios.

product structure

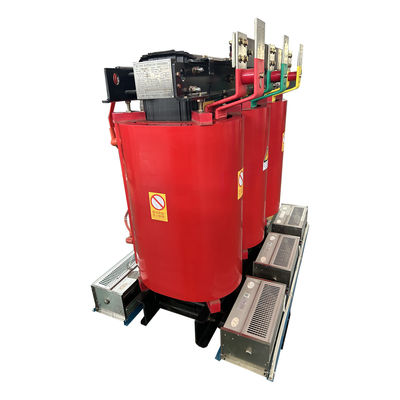

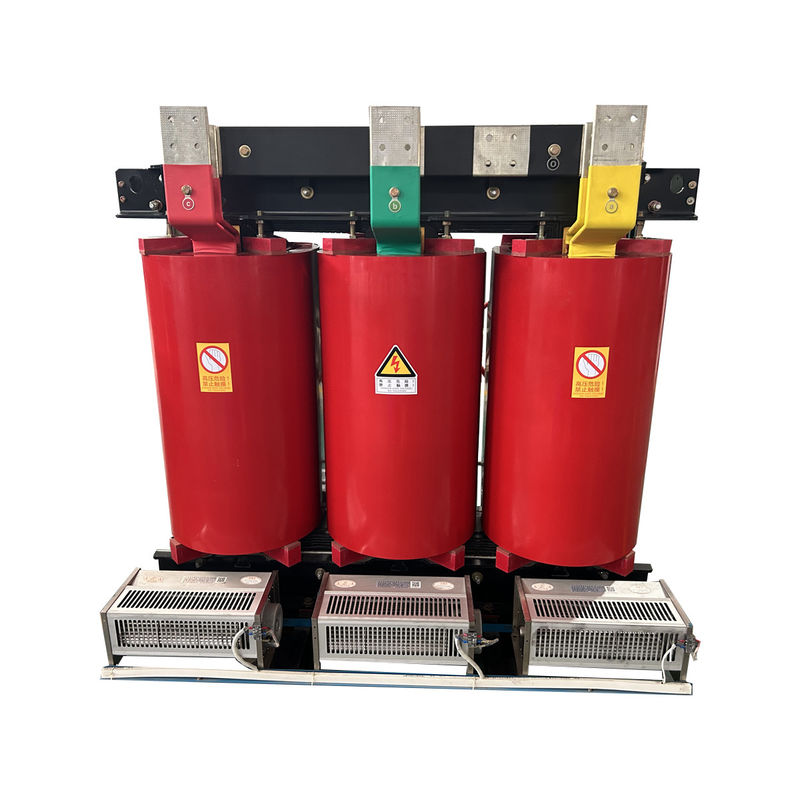

SCB(14）Class H Three Phase Resin Cast Dry Type Transformer 500 Kva 10KV To 0.4KV 0

Performance Characteristic

* Simple maintenance: seldom need any maintenance.
* They are pollution-free
* They are used in the areas of contaminated and damped
* They are easier to Install.
* They have long servie life because of the dielectric heating & low thermal
* Protects the property & people
* For short circuit currents, they have high resistance
* Performance is excellent

Drawing

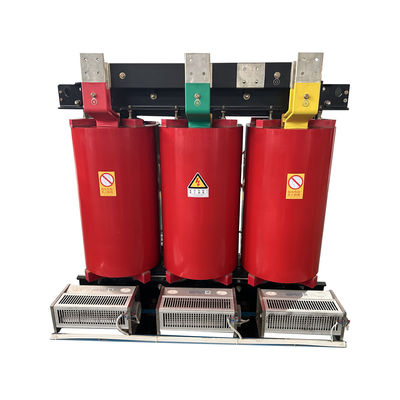

SCB(14）Class H Three Phase Resin Cast Dry Type Transformer 500 Kva 10KV To 0.4KV 1

Specification

Rated capacity	High Voltage	Low	Connection Symbol	No-Load Loss	On-Load Loss	No Load Current	Weight	Short Circuit Impendence
(KVA)	(KV)	Voltage		(W)	(W)	(%)	(KG)	(%)
(KVA)	(KV)	(KV)
10	6	0.4	Dyn11	0.15	0.325	4.1	130	4
30	6.3		Yyn0	0.215	0.75	3.2	260
50	10			0.305	1.055	2.8	315
80	10.5			0.415	1.46	2.6	470
100	11			0.45	1.665	2.4	520
125				0.53	1.955	2.2	585
160				0.61	2.25	2.2	670
200				0.7	2.675	2	790
250				0.81	2.915	2	920
315				0.99	3.67	1.8	1085
400				1.1	4.22	1.8	1320
500				1.305	5.165	1.8	1520
630				1.46	6.31	1.6	1820	6
800				1.71	7.36	1.6	2105
1000				1.99	8.6	1.4	2550
1250				2.35	10.26	1.4	2900
1600				2.755	12.42	1.4	3490
2000				3.735	15.3	1.2	4220
2500				4.5	19.53	1.2	4955

Production process

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
