Single Phase Pad Mounted Transformer

333kva Single Phase Pad Mounted Distribution Transformers 34500grdy To 240v Meets Ansi Ieee Standards

All Category

Three Phase Isolation Transformer

Three Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Industrial Control Transformer

Single Phase Control Transformer

Toroidal Isolation Transformer

Three Phase Dry Type Transformer

Three Phase Reactor

Mr. Steven

steven@winley-electric.com

86-18650108051

Contact Now

333kva Single Phase Pad Mounted Distribution Transformers 34500grdy To 240v Meets Ansi Ieee Standards

Brand Name:	WINLEY
Model Number:	D-50/20.78
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Phase:

Single Phase

Rated Capacity:

333KVA

Primary Voltage:

34500GrdY/19950

Secondary Voltage:

240/120V (L-N-L)

Cooling Class:

KNAN; Self-Cooled

Efficiency:

99.20%

Winding Material:

Copper

FrequencyRise:

Supply Ability:

1000set/month

Highlight:

333kva Pad Mounted Distribution Transformers

Ansi Ieee Pad Mounted Distribution Transformers

34500grdy Pad Mounted Distribution Transformers

Product Description

333kva Single Phase Pad Mounted Distribution Transformers 34500grdy To 240v Meets Ansi Ieee Standards

Single-phase base transformers have the characteristics of small size, light weight, safety and reliability. The single-phase base transformers we specialize in fully meet or even exceed the standards of ANSI/IEEE and DOE CSA, with a capacity of 10KVA-250KVA. We independently invest in the production of key components such as oil tanks and cores, with a monthly delivery capacity of more than 600 units, and can be delivered quickly within 35 days.

product structure

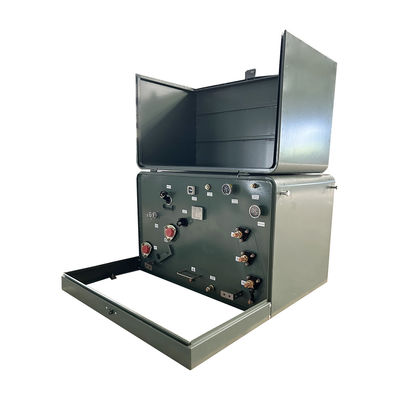

333kva Single Phase Pad Mounted Distribution Transformers 34500grdy To 240v Meets Ansi Ieee Standards 0

Performance Characteristic

1)Combination Transformer Substation, The top of cabinet is with steel plate clamp rock wool structure which has ventilation duct, can reduce the solar radiation effectively and ensure the heat dissipation.
2)The surface of whole cabinet shell sprays special primer and paint which has strong anti-corrosion ability.
3)The inside can be divided into high voltage chamber, transformer chamber and low voltage chamber respectively.
4) Also it is be equipped with temperature control automatic exhaust device to ensure the temperature range.
5)Each unit has impeccable control, charged display and lighting system.
6)The apparatus equipment are accord with IP33 protection requirement, have reasonable design,structure and technology, with good quality and easy maintenance.

Main data

Phase	Single Phase
Capacity	333
Vector Group	II6
Primary Voltage	34500GrdY/19950
Secondary Voltage	240/120V (L-N-L)
Frequency	60 Hz
Temperature Rise	65°C
Cooling Class	KNAN; Self-Cooled
Tap Changer	5-position Tap Changer
Efficiency Standard(s)	Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation)	K-1 (Standard)
Winding Material	Copper
Ambient Temperature Rating	40°C
Sound Level	56 dBA
Elevation (Altitude)	3300ft (1000 meters) Above Sea Level or Lower
Core Material	Steel
Tank Material	Coated Steel
Dimensions*	55.12''-W x 55.91''-D x 33.46''-H
Weight*	3637.57 Lbs
Efficiency	99.20%
No Load Loss (in watts)*	+/- 900W
Load Loss (in watts)*	+/- 3,646W

Drawing

333kva Single Phase Pad Mounted Distribution Transformers 34500grdy To 240v Meets Ansi Ieee Standards 1

Specification

25kva-500kva single phase pad mounted transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
	Voltage(v)					(%)
25	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.0-4.5%	98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43
500						99.49

Accessories

Production process

50kva Single Phase Pad Mounted Transformer Oil Type 13200v To 240v 2

50kva Single Phase Pad Mounted Transformer Oil Type 13200v To 240v 3

13.2kv 480V Secondary Voltage Single Phase Pad Mounted Transformer Oil Type 250kVA 5

50kva Single Phase Pad Mounted Transformer Oil Type 13200v To 240v 4

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
