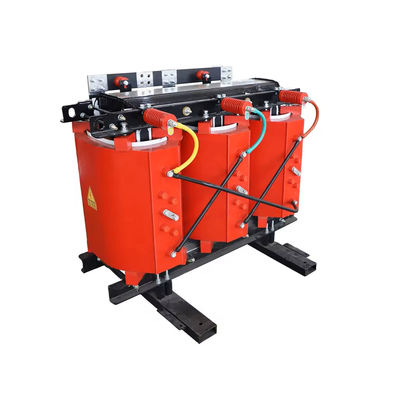

SCB11 Series High Voltage Three-phase Epoxy Resin Cast Dry-type Power Transformer 630 Kva

Brand Name:	WINLEY
Model Number:	SCB11-630/13.2
MOQ:	1unit
Price:	$5000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Phase:

Three

Rated Capacity:

630KVA

Cooling Method:

AN/AF

Frequency:

50/60Hz

Primary Voltage:

13200V

Secondary Voltage:

Enclosure:

Temperature Rise:

Supply Ability:

1000set/month

Highlight:

SCB11 Series Cast Resin Transformer

High Voltage Cast Resin Transformer

630 kva Cast Resin Transformer

Product Description

SCB11 Series High Voltage Three-phase Epoxy Resin Cast Dry-type Power Transformer 630 kva

product structure

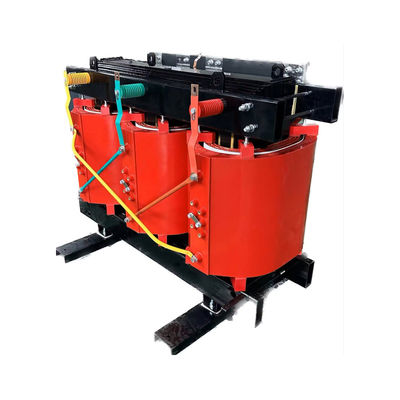

SCB11 Series High Voltage Three-phase Epoxy Resin Cast Dry-type Power Transformer 630 Kva 0

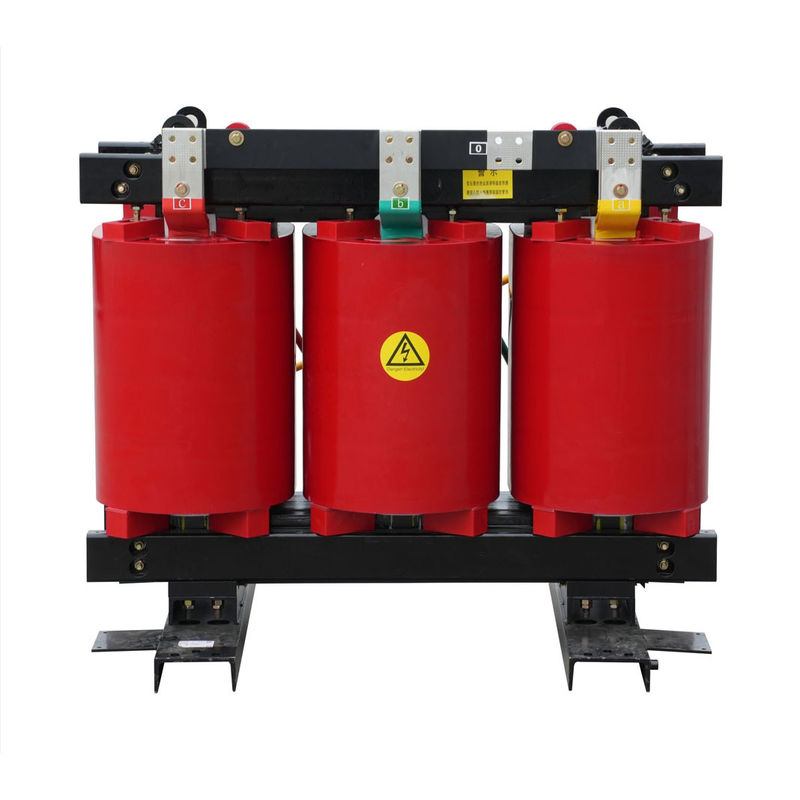

SCB11 Series High Voltage Three-phase Epoxy Resin Cast Dry-type Power Transformer 630 Kva 1

Main Data

dry type transformer specification data
No.	Item	Unit	Reqirement
1	Type	~	cast resin dry type
2	Rated capacity	kVA	630
3	No. of Phase	~	3
4	Primary Voltage	kV	10
5	Secondary Voltage	kV	0.4
6	Tapping type	~	off-circuit
7	Tapping range	%	±2*2.5%(5 steps)
8	Cooling method	~	AN/AF
9	Rated frequency	Hz	50
10	Vector group	~	Dyn11
11	Insulation class	~	F
12	Temperature rise	K	100
13	Off-load loss	W	1180
14	On-load loss (120℃)	W	5880
15	Impedance	%	3.0~7.0
16	Winding material	~	Cu or Al
17	Core material	~	silicon steel
18	IP degree	~	IP00
19	Service condition	~	indoor
20	Sea level	M	≤1000
21	Standard	~	IEC60076

Drawing

SCB11 Series High Voltage Three-phase Epoxy Resin Cast Dry-type Power Transformer 630 Kva 2

Performance Characteristic

1)The iron core is made of high-quality silicon steelsheet.The surface is coated with anti-corrosionand good heat dissipation to ensure the transformer's low loss and corrosion resistance.
2)The high voltage winding has a continuous drop downdisc with a strip conductor(alumi num or copper)anddouble layer insula- tion.Windings are cast undervacuum with epoxy resin.
3)The low-voltage winding is made of aluminum orcopper foil and wound with insulating foil pre-im-pregnated with epoxy resin.The coil is cured in anoven to form a very compact winding.
4)The encapsulation process is a key stage withinthe manufacturing process Encapsulation is car-ried out under the most rigorous conditions inorder to ensure optimum insulating and mechani-cal characteristics.
5)In the vacuum casting chamber,the resin is pouredinto the mold to cure and form a high strength FRPbody structure.

Specification

Rated capacity	High Voltage	Low	Connection Symbol	No-Load Loss	On-Load Loss	No Load Current	Weight	Short Circuit Impendence
(KVA)	(KV)	Voltage		(W)	(W)	(%)	(KG)	(%)
(KVA)	(KV)	(KV)
10	6	0.4	Dyn11	0.15	0.325	4.1	130	4
30	6.3		Yyn0	0.215	0.75	3.2	260
50	10			0.305	1.055	2.8	315
80	10.5			0.415	1.46	2.6	470
100	11			0.45	1.665	2.4	520
125				0.53	1.955	2.2	585
160				0.61	2.25	2.2	670
200				0.7	2.675	2	790
250				0.81	2.915	2	920
315				0.99	3.67	1.8	1085
400				1.1	4.22	1.8	1320
500				1.305	5.165	1.8	1520
630				1.46	6.31	1.6	1820	6
800				1.71	7.36	1.6	2105
1000				1.99	8.6	1.4	2550
1250				2.35	10.26	1.4	2900
1600				2.755	12.42	1.4	3490
2000				3.735	15.3	1.2	4220
2500				4.5	19.53	1.2	4955

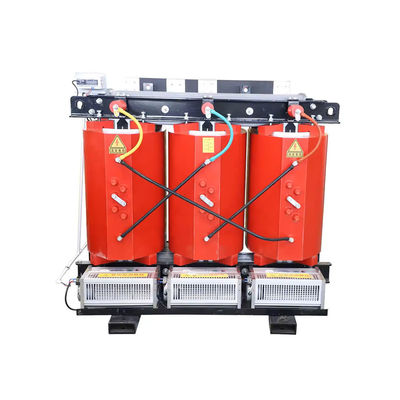

Product Photo

Production process

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
