200KVA Single Phase Pad Mounted Transformer Distribution 34500V To 120/240V

Brand Name:	WINLEY
Model Number:	D-200/35
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Phase:

Single Phase

Rated Capacity:

200KVA Or Customized

Primary Voltage:

34.5KV

Secondary Voltage:

Cooling Class:

ONAN; Self-Cooled

Frequency:

60 HZ

Winding Material:

Aluminium

Efficiency Standard(s):

Meets DOE 2016 Standards, Meets ANSI/IEEE Standards

Supply Ability:

1000set/month

Highlight:

240V Pad Mounted Transformer

200KVA Pad Mounted Transformer

34500V Pad Mounted Transformer

Product Description

200KVA Single Phase Pad Mounted Transformer Distribution 34500V to 120/240V

Single phase pad mounted transformer is oil-immersed distribution transformer.The traditional transformer is designed in a box-type shell. It has the characteristics of small size, light weight, low noise, low loss, safety and reliability.It is widely used in residential quarters, commercial centers, hospitals, parks, schools, etc.Single phase pad mounted transformers are self-cooled, available in loop or radial feed, and are dead front,Meet or exceeds ANSI /CSA/IEEE standards.

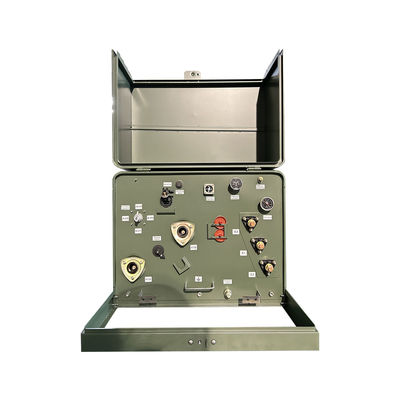

200KVA Single Phase Pad Mounted Transformer Distribution 34500V To 120/240V 0

Feature

Pressure relief device
Fluid fill and drain provisions
Laser engraved nameplate
Floating lock pocket for easy alignment
Decal bushing designations
Welded domed tank cover
Click Here Get Transformer Drawings
Tamper strips of noncorrosive material
Crowned tank
Removable sill
Hinged door with stainless steel hinge pins and barrels
Ground strap fromX2 to tank ground
HV bushing wells for dead front elbow connectors
High voltage bushing wells-200A and low voltage bushin

Factory photos

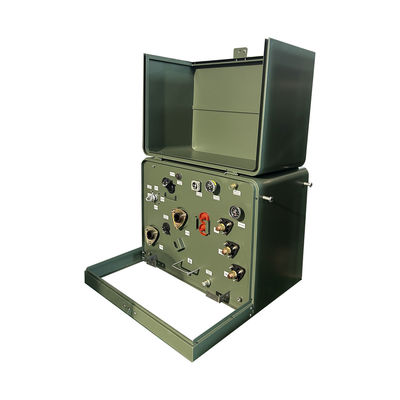

200KVA Single Phase Pad Mounted Transformer Distribution 34500V To 120/240V 1

Main data

Phase	Single Phase
Capacity	200 KVA
Vector Group	II6
Primary Voltage	34500V
Secondary Voltage	120/240 (L-N-L)
Secondary Phasor	Dual Winding Single Phase
Secondary BIL	30 KV
Frequency	60 Hz
Temperature Rise	65°C
Insulation Rating	Class E Insulation - 120°C, 248°F
Cooling Class	ONAN; Self-Cooled
Efficiency Standard(s)	Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation)	K-1 (Standard)
Winding Material	Aluminum
Ambient Temperature Rating	40°C
Sound Level	55 dBA
Elevation (Altitude)	3300ft (1000 meters) Above Sea Level or Below
Core Material	Steel
Efficiency	99.20%
Based on transformer operating at 50% of nameplate base kVA.
Load Losses Based on 85°C Reference Temp.
No Load Loss (in watts)*	+/- 683W
Load Loss (in watts)*	+/- 2,763W
Total Load Loss (in watts)*	+/- 3,445W

Drawing

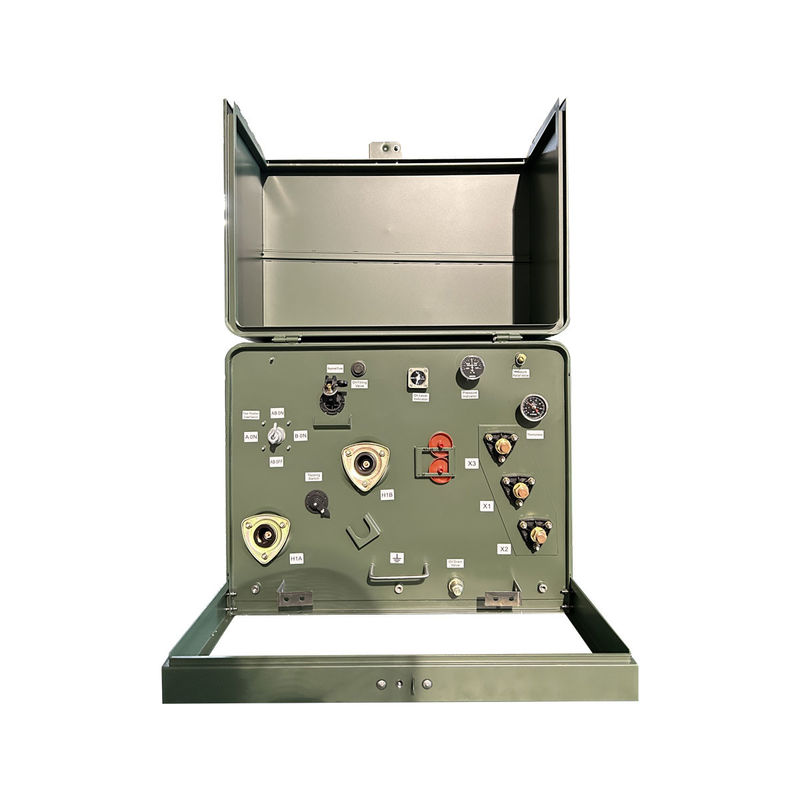

200KVA Single Phase Pad Mounted Transformer Distribution 34500V To 120/240V 2

Specification

25kva-500kva single phase pad mounted transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
	Voltage(v)					(%)
25	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.0-4.5%	98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43
500						99.49

Accessories

Production process

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
