Single Phase Pad Mounted Transformer Oil Immersed Step Down 12470V To 240V Manufacturer 167KVA

Brand Name:	WINLEY
Model Number:	D-167/12.47
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Phase:

Single Phase

Rated Capacity:

167KVA Or Customized

Primary Voltage:

12470GrdY/7200

Secondary Voltage:

240/120V (L-N-L)

Cooling Class:

ONAN /KNAN

Feed:

Winding Material:

Copper/Aluminium

Temperature Rise:

Supply Ability:

1000set/month

Highlight:

Single Phase Pad Mounted Transformer

167KVA Pad Mounted Transformer

12470V To 240V Pad Mounted Transformer

Product Description

Single Phase Pad Mounted Transformer Oil Immersed Step Down 12470V To 240V Manufacturer

pad-mounted transformers are compact, self-contained electrical device, It has the characteristics of small size, light weight, low noise, low loss, safety and reliability. It is widely used in residential quarters, commercial centers, hospitals, parks, schools, etc.

product structure

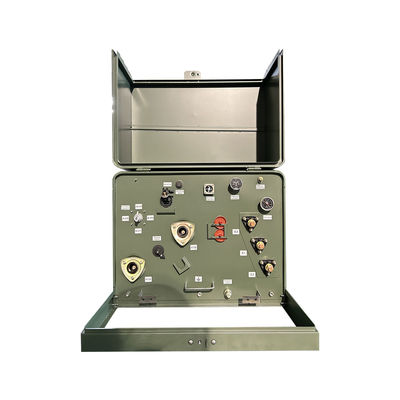

Single Phase Pad Mounted Transformer Oil Immersed Step Down 12470V To 240V Manufacturer 167KVA 0

Feature

• Meet or exceeds ANSI®, IEEE® and NEMA® standards
• Meets DOE Energy Efficiency Standard 10 CFR Part 431 for distribution transformers
• Tank coating exceeds IEEE Std C57.12.28™-2005 and IEEE Std C57.12.29™-2005 standards (stainless steel units only)
• Full compliance with IEEE Std C57.12.28™-2005 standard enclosure integrity requirements
• Laser engraved nameplate
• Recessed stainless steel lifting provisions
• Tank grounding provisions
• Automatic pressure relief device
• Electrical grade mineral oil
• Hinged door with stainless steel hinge pins and barrels
• Floating lock pocket for easy alignment
• Captive stainless steel pentahead door locking bolt
• Oil fill and drain provisions
• Removable sill
• Welded domed tank cover
• High-voltage bushing wells - 200 A

Main data

Transformer Type	Pad Mounted, Compartmental-Type
Phase	Single Phase
Capacity	167
Primary Voltage	12470GrdY/7200
Secondary Voltage	240/120V (L-N-L)
Secondary Phasor	Dual Winding Single Phase
Frequency	60 Hz
Temperature Rise	65°C
Cooling Class	ONAN; Self-Cooled
Efficiency	Meet DOE 2016 Standard
Winding Material	Copper
Ambient Temperature Rating	40°C
Sound Level	55 dBA
Elevation (Altitude)	3300ft (1000 meters) Above Sea Level
Lift Up Pad Lockable Lid
Efficiency	99.10%
No Load Loss (in watts)*	+/- 455W
Load Loss (in watts)*	+/- 1833W
Total Load Loss (in watts)*	+/- 2288W

Drawing

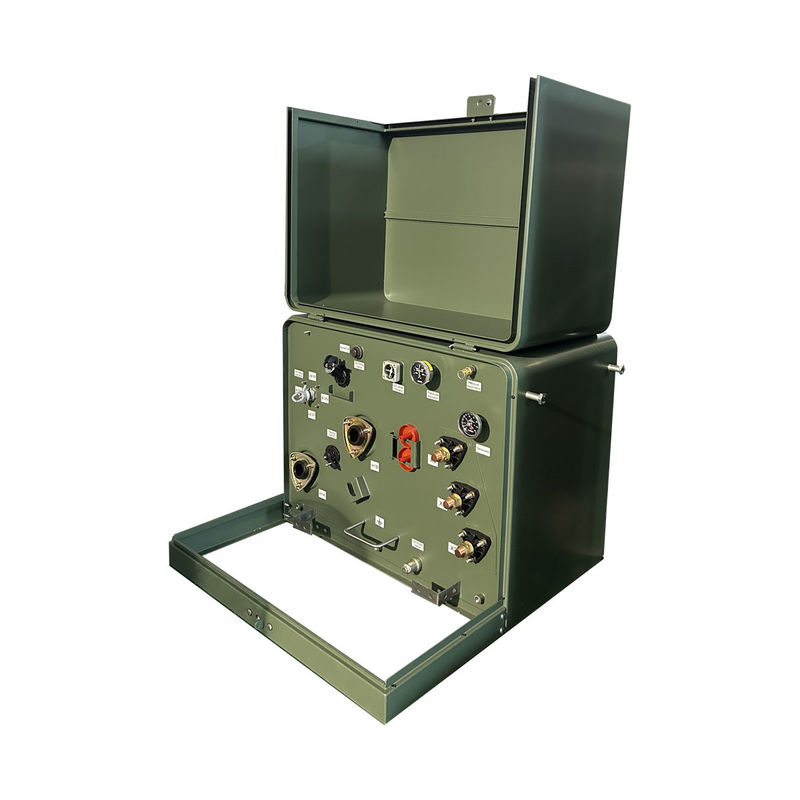

Single Phase Pad Mounted Transformer Oil Immersed Step Down 12470V To 240V Manufacturer 167KVA 1

Specification

25kva-500kva single phase pad mounted transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
	Voltage(v)					(%)
25	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.0-4.5%	98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43
500						99.49

Accessories

Production process

Single Phase Pad Mounted Transformer Oil Immersed Step Down 12470V To 240V Manufacturer 167KVA 3

Single Phase Pad Mounted Transformer Oil Immersed Step Down 12470V To 240V Manufacturer 167KVA 4

Single Phase Pad Mounted Transformer Oil Immersed Step Down 12470V To 240V Manufacturer 167KVA 5

Single Phase Pad Mounted Transformer Oil Immersed Step Down 12470V To 240V Manufacturer 167KVA 6

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
