Cast Coil Transformer

1200kva Three Phase Epoxy Resin Pouring Dry-Type Power Voltage Transformer 400v As60076 Standards

All Category

Three Phase Isolation Transformer

Three Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Industrial Control Transformer

Single Phase Control Transformer

Toroidal Isolation Transformer

Three Phase Dry Type Transformer

Three Phase Reactor

Mr. Steven

steven@winley-electric.com

86-18650108051

Contact Now

1200kva Three Phase Epoxy Resin Pouring Dry-Type Power Voltage Transformer 400v As60076 Standards

Brand Name:	WINLEY
Model Number:	SCB10-1200/13.2
MOQ:	1unit
Price:	$5000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Phase:

Three

Rated Capacity:

1200KVA Or Customize

Cooling Method:

AN/AF

Frequency:

50/60Hz

Primary Voltage:

Secondary Voltage:

Core Material:

Silicon Steel

Temperature Rise:

Supply Ability:

1000set/month

Highlight:

400v Dry-Type Power Voltage Transformer

1200kva Dry-Type Power Voltage Transformer

Product Description

1200kva Three Phase Dry Type Cast Resin Power Transformers 13200V To 480y/277V

Feature

1. Safe, not combustible, fireproof can be installed directly in the load center
2. Maintenance-free, easy installation, low economic operation cost
3. Good moisture resistance can operate normally under 100% humidity
4. Low loss, low noise, good insulation, small local discharge, no pollution, loss
5. Good heat dissipation, strong overload capacity, under the condition of air cooling, can overload 50%
6. Reliable operation, with perfect temperature protection control system, can ensure the safe operation of the transformer
7. Small volume, lightweight, stable structure, strong lightning shock resistance, high mechanical strength, temperature change resistance, anti-sudden short circuit ability

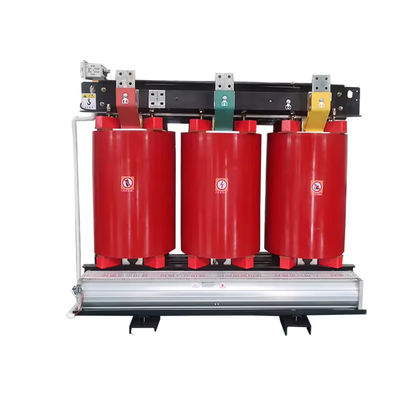

1200kva Three Phase Epoxy Resin Pouring Dry-Type Power Voltage Transformer 400v As60076 Standards 0

Main Data

1200kVA transformer specification data
No.	Particulars	Unit	Specification	Remark
1	Type	~	dry type, cast resin
2	Rated capacity	kVA	1200	K4 rating
3	Duty	~	Continuous duty
4	No. of Phase	~	3
5	Primary voltage	V	480	Delta
6	Secondary voltage	V	480	Wye
7	Tapping type	~	N/A
8	Tapping range	%	N/A
9	Cooling method	~	AN/AF
10	Rated frequency	Hz	50
11	Vector group	~	Dyn11
12	Insulation class	~	F
13	Temperature rise	℃	100
14	Impedance	%	4~6
15	No-load loss	W	2670	10% tolerance
16	On-load loss(120℃)	W	18100	10% tolerance
17	Winding material	~	Aluminum
18	Core material	~	Silicon steel
19	Electrostatic shield	~	yes
20	Service condition	~	indoor
21	Dimension	mm	200014001900
22	Weight	kg	3800
23	Sea level	M	≤1000
24	Design temperature	℃	一25~45
25	THDi	%	＜3%
26	Reference standards	~	AS60076&AS3000

Drawing

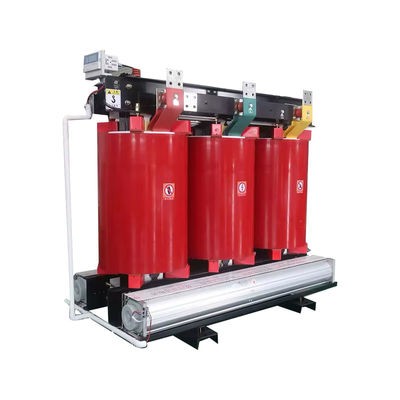

1200kva Three Phase Epoxy Resin Pouring Dry-Type Power Voltage Transformer 400v As60076 Standards 1

Specification

Rated capacity	High Voltage	Low	Connection Symbol	No-Load Loss	On-Load Loss	No Load Current	Weight	Short Circuit Impendence
(KVA)	(KV)	Voltage		(W)	(W)	(%)	(KG)	(%)
(KVA)	(KV)	(KV)
10	6	0.4	Dyn11	0.15	0.325	4.1	130	4
30	6.3		Yyn0	0.215	0.75	3.2	260
50	10			0.305	1.055	2.8	315
80	10.5			0.415	1.46	2.6	470
100	11			0.45	1.665	2.4	520
125				0.53	1.955	2.2	585
160				0.61	2.25	2.2	670
200				0.7	2.675	2	790
250				0.81	2.915	2	920
315				0.99	3.67	1.8	1085
400				1.1	4.22	1.8	1320
500				1.305	5.165	1.8	1520
630				1.46	6.31	1.6	1820	6
800				1.71	7.36	1.6	2105
1000				1.99	8.6	1.4	2550
1250				2.35	10.26	1.4	2900
1600				2.755	12.42	1.4	3490
2000				3.735	15.3	1.2	4220
2500				4.5	19.53	1.2	4955

Product packaging

Production process

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
