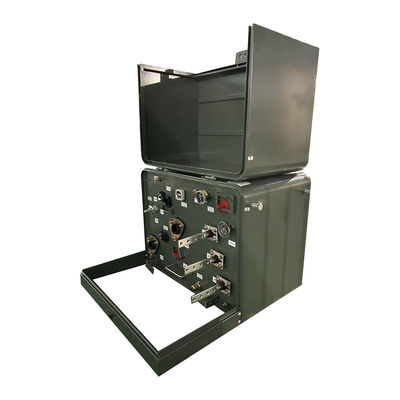

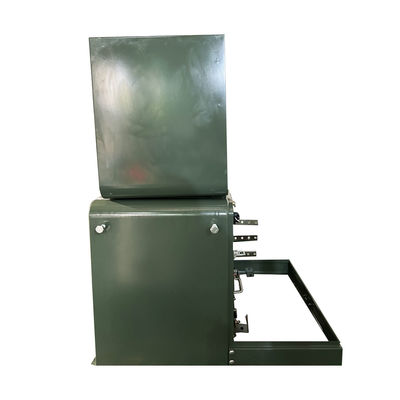

100Kva Single Phase Pad Mounted Distribution Transformer 12470V To 240V

All Category

Three Phase Isolation Transformer

Three Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Industrial Control Transformer

Single Phase Control Transformer

Toroidal Isolation Transformer

Three Phase Dry Type Transformer

Three Phase Reactor

Mr. Steven

steven@winley-electric.com

86-18650108051

Contact Now

100Kva Single Phase Pad Mounted Distribution Transformer 12470V To 240V

Brand Name:	WINLEY
Model Number:	D-100/12.47
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Type:

Pad Mount Transformer

Phase:

Single Phase

Primary Voltage:

12470GrdY/7200

Secondary Voltage:

240/120V

Frequency:

60 Hz

Temperature Rise:

Insulation Rating:

Class E Insulation - 120°C, 248°F

K-Factor Rating (Harmonic Mitigation):

K-1 (Standard)

Supply Ability:

1000set/month

Highlight:

100Kva pad mounted distribution Transformer

240V pad mounted distribution Transformer

12470V pad mounted distribution Transformer

Product Description

100Kva single phase pad mounted distribution Transformer 12470V To 240V

WINLEY Electric's Single-Phase Pad Mounted Transformers

I. Compliance with Industry Standards A. ANSI, DOE, IEEE, and CSA standards B. Exceeding industry requirements

II. Transformer Specifications A. Rated Capacity Range 1. 10KVA to 250KVA B. Primary Voltage 1. Up to 34.5kV

III. In-house Component Production A. Oil tanks B. Cores C. Monthly Delivery Capacity 1. More than 600 units

IV. Delivery and Lead Times A. 30-day delivery

V. Conclusion A. WINLEY Electric's transformers meet or exceed industry standards B. Comprehensive in-house production capabilities C. Reliable and timely delivery

product structure

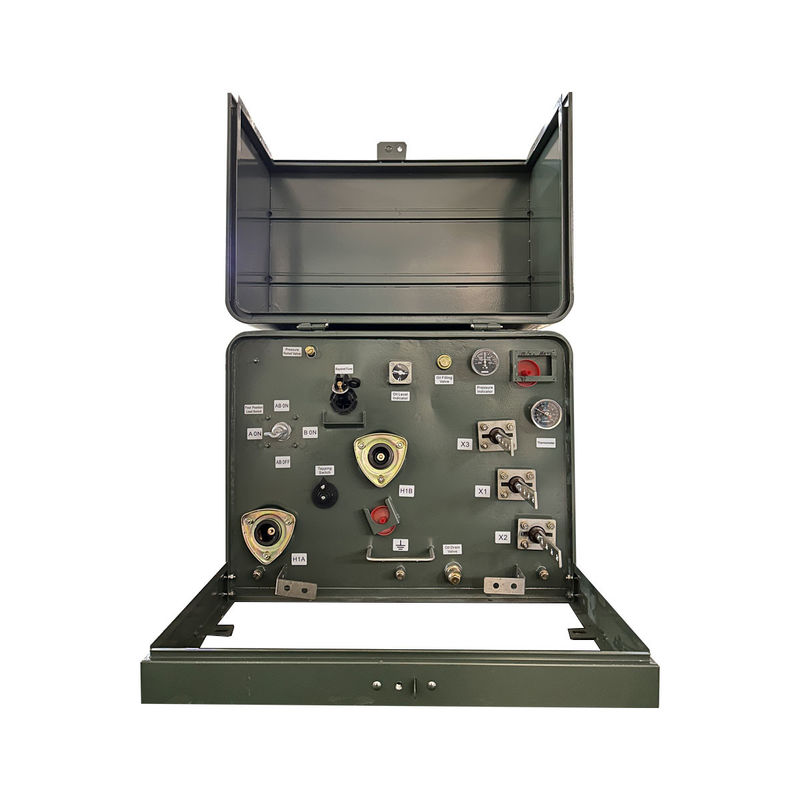

100Kva Single Phase Pad Mounted Distribution Transformer 12470V To 240V 0

Feature

• Meet or exceeds ANSI®, IEEE® and NEMA® standards

• Meets DOE Energy Efficiency Standard 10 CFR Part 431 for distribution transformers

• Tank coating exceeds IEEE Std C57.12.28™-2005 and IEEE Std C57.12.29™-2005 standards (stainless steel units only)

• Full compliance with IEEE Std C57.12.28™-2005 standard enclosure integrity requirements

• Laser engraved nameplate

• Recessed stainless steel lifting provisions

• Tank grounding provisions

• Automatic pressure relief device

• Electrical grade mineral oil

• Hinged door with stainless steel hinge pins and barrels

• Floating lock pocket for easy alignment

• Captive stainless steel pentahead door locking bolt

• Oil fill and drain provisions

• Removable sill

• Welded domed tank cover

• High-voltage bushing wells - 200 A

Main data

Transformer Type	Pad Mounted, Compartmental-Type II
Phase	Single Phase
Capacity	100 KVA
Vector Group	II6
Primary Voltage	12470GrdY/7200
Secondary Phasor	Dual Winding Single Phase
Secondary BIL	30 KV
Frequency	60 Hz
Temperature Rise	65°C
Insulation Rating	Class E Insulation - 120°C, 248°F
Cooling Class	ONAN; Self-Cooled
Impedance	1.4-2.4% Typical
Primary Connection Type	Dead Front
Load Break Switch Rating	200-Amp, 15 kV
Efficiency Standard(s)	Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation)	K-1 (Standard)
Fluid (Oil) Capacity*	63.56 Gallons
Fluid (Oil) Weight*	573.19 lb
Liquid Level Indicator	Analog Gauge
Temperature Indicator	Analog Gauge
Pressure/Vacuum Indicator	Analog Gauge
Winding Material	Copper
Ambient Temperature Rating	40°C
Ambient Operating Temperature Range	-40°C to +40°C (-50°F to +104°F)
Sound Level	51 dBA
Elevation (Altitude)	3300ft (1000 meters) Above Sea Level or Below
Core Material	Grain Oriented Steel

Drawing

100Kva Single Phase Pad Mounted Distribution Transformer 12470V To 240V 1

Specification

25kva-500kva single phase pad mounted transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
	Voltage(v)					(%)
25	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.0-4.5%	98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43
500						99.49

Factory product photos

100Kva Single Phase Pad Mounted Distribution Transformer 12470V To 240V 2

Accessories

Production process

50kva Single Phase Pad Mounted Transformer Oil Type 13200v To 240v 2

50kva Single Phase Pad Mounted Transformer Oil Type 13200v To 240v 3

100Kva Single Phase Pad Mounted Distribution Transformer 12470V To 240V 6

50kva Single Phase Pad Mounted Transformer Oil Type 13200v To 240v 4

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
