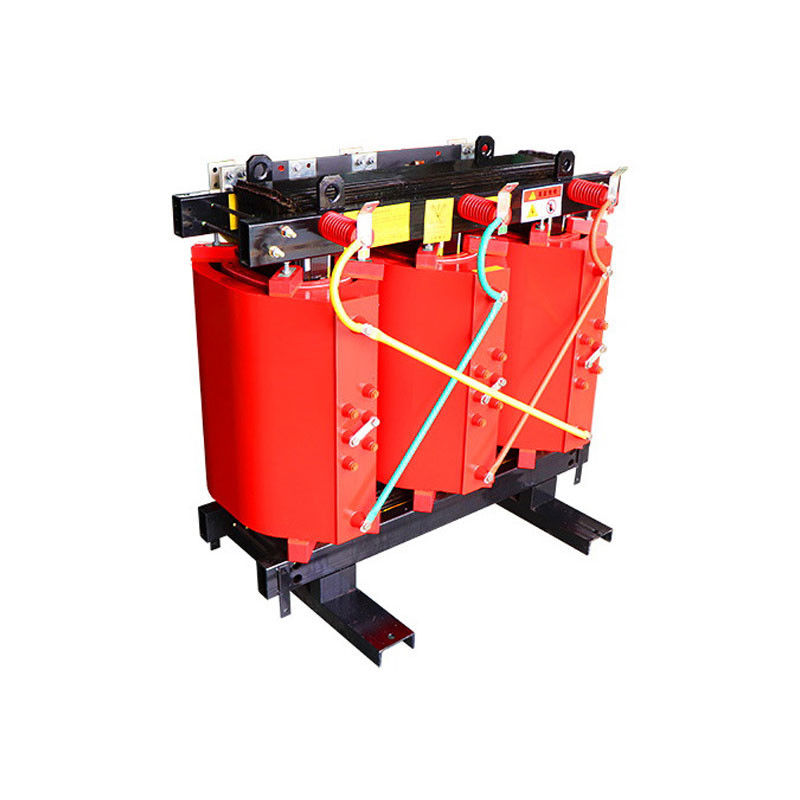

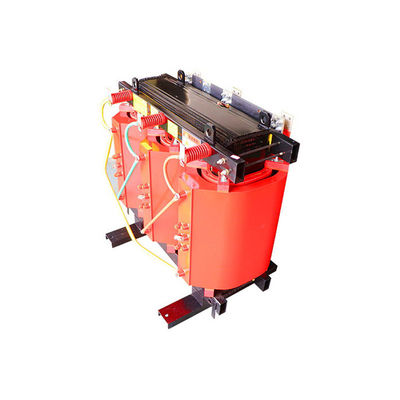

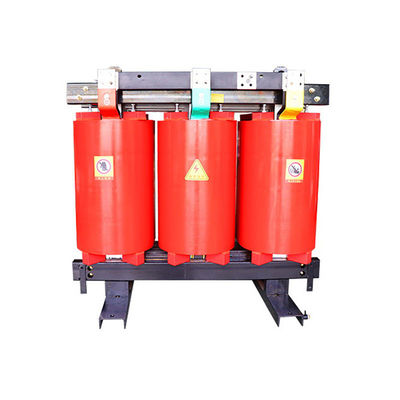

1500kva Three Phase Dry Type Cast Resin Power Transformers 13200v To 480y/277v

Brand Name:	WINLEY
Model Number:	SCB10-1500/13.2
MOQ:	1unit
Price:	$5000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Phase:

Three

Rated Capacity:

1500KVA Or Customize

Cooling Method:

AN/AF

Frequency:

50/60Hz

Insulation Level:

Winding Material:

Copper/Aluminum

Core Material:

Silicon Steel

Temperature Rise:

Supply Ability:

1000set/month

Highlight:

1500kva Cast Resin Power Transformers

13200v Cast Resin Power Transformers

480y/277v Cast Resin Power Transformers

Product Description

1600kva Three Phase Dry Type Cast Resin Power Transformers 13200V To 480y/277V

WINLEY Electric's three-phase epoxy resin dry-type transformers are available in three grades: 10KV/20KV/35KV, which comply with IEC726 and GB/T10228-1997 standards. They have the characteristics of low loss, compact structure, light weight, low noise, moisture resistance, high mechanical strength, flame retardant, strong overload capacity, and low partial discharge quality.

1500kva Three Phase Dry Type Cast Resin Power Transformers 13200v To 480y/277v 0

Main Data

transformer specification data
No.	Particulars	Unit	Specification	Remark
1	Type	~	cast resin, dry type
2	Rated capacity	kVA	1500/2100
3	No. of Phase	~	3
4	Rated input voltage	V	13200	Delta
5	Rated output voltage	V	480Y/277	Wye-N
6	Tapping type	~	off-circuit
7	Tapping range	%	±2*2.5%
8	Cooling method	~	OA/FA
9	Rated frequency	Hz	60
10	Vector group	~	Dyn11
11	Insulation class	~	F
12	Temperature rise	℃	100
13	Off-load loss	W	3240	10% tolerance
14	On-load loss (120℃)	W	16300	10% tolerance
15	Impedance	%	5~7
16	Winding material	~	Al
17	Core material	~	silicon steel
18	Service condition	~	indoor/outdoor
19	Sea level	M	≤1000
20	Accessories	~	cooling fans and temperature controller
21	Ambient temperature	℃	from -25 to +40

Specification

Rated capacity	High Voltage	Low	Connection Symbol	No-Load Loss	On-Load Loss	No Load Current	Weight	Short Circuit Impendence
(KVA)	(KV)	Voltage		(W)	(W)	(%)	(KG)	(%)
(KVA)	(KV)	(KV)
10	6	0.4	Dyn11	0.15	0.325	4.1	130	4
30	6.3		Yyn0	0.215	0.75	3.2	260
50	10			0.305	1.055	2.8	315
80	10.5			0.415	1.46	2.6	470
100	11			0.45	1.665	2.4	520
125				0.53	1.955	2.2	585
160				0.61	2.25	2.2	670
200				0.7	2.675	2	790
250				0.81	2.915	2	920
315				0.99	3.67	1.8	1085
400				1.1	4.22	1.8	1320
500				1.305	5.165	1.8	1520
630				1.46	6.31	1.6	1820	6
800				1.71	7.36	1.6	2105
1000				1.99	8.6	1.4	2550
1250				2.35	10.26	1.4	2900
1600				2.755	12.42	1.4	3490
2000				3.735	15.3	1.2	4220
2500				4.5	19.53	1.2	4955

Product packaging

Production process

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
