Pad Mounted Transformer Oil Immersed Single Phase 167kva 13800grdy/7968 To 240/120v

Brand Name:	WINLEY
Model Number:	D-167/13.8
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Phase:

Single Phase

Rated Capacity:

167KVA

Primary Voltage:

13800GrdY/7968

Secondary Voltage:

240/120V

Frequency:

60 Hz

Temperature Rise:

Transformer Feed Type:

Loop Feed

Efficiency:

Meet DOE 2016 Standard

Supply Ability:

1000set/month

Highlight:

Single Phase Pad Mounted Transformer

Oil Immersed Pad Mounted Transformer

167kva Pad Mounted Transformer

Product Description

Pad Mounted Transformer Oil Immersed Single Phase 167kva 13800grdy/7968 To 240/120v

The single-phase pad mounted transformers produced by WINLEY Electric fully comply with and exceed ANSI, DOE, IEEE and CSA standards, with a rated capacity range of 10KVA-250KVA and a primary voltage of up to 34.5kV. We independently produce key components such as oil tanks and cores, with a monthly delivery capacity of more than 600 units, and can deliver quickly with 30 day.

Factory product photos

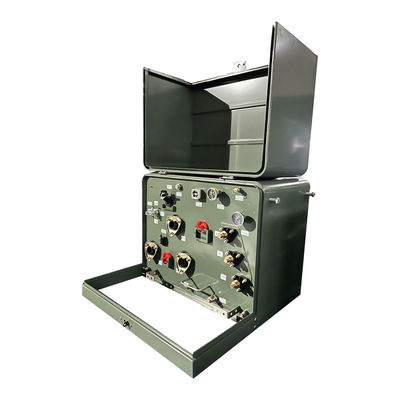

Pad Mounted Transformer Oil Immersed Single Phase 167kva 13800grdy/7968 To 240/120v 0

product structure

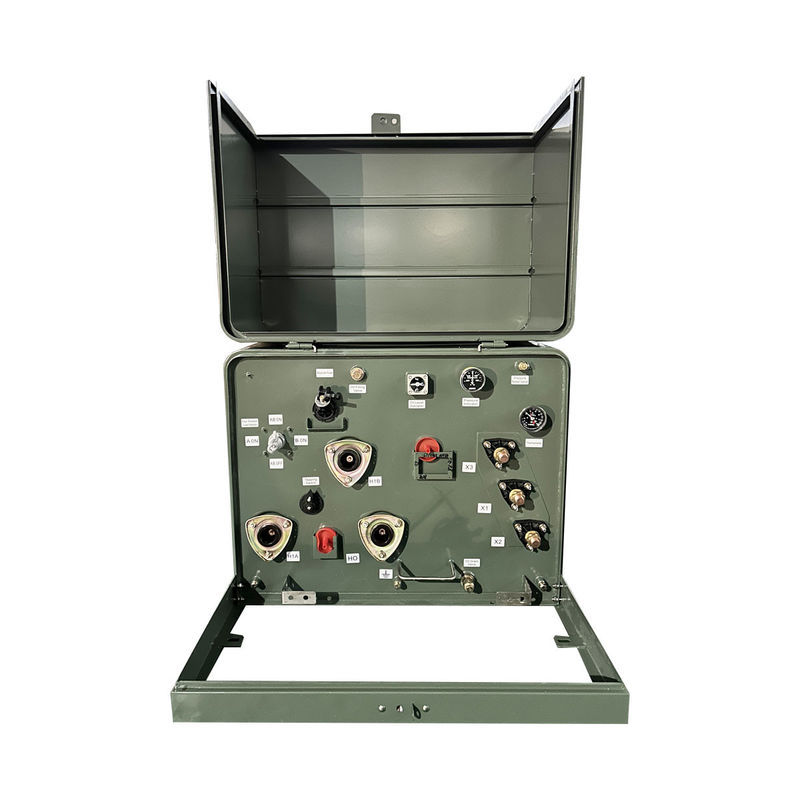

Pad Mounted Transformer Oil Immersed Single Phase 167kva 13800grdy/7968 To 240/120v 1

Main data

Transformer Type	Pad Mounted, Compartmental-Type
Phase	Single Phase
Capacity	167
Primary Voltage	13800GrdY/7968
Secondary Voltage	240/120V (L-N-L)
Frequency	60 Hz
Temperature Rise	65°C
Cooling Class	ONAN; Self-Cooled
Load Break Switch	4-Position Load Break Switch
Efficiency	Meet DOE 2016 Standard
Winding Material	Copper
Ambient Temperature Rating	40°C
Sound Level	55 dBA
Elevation (Altitude)	3300ft (1000 meters) Above Sea Level
Tank Material	Coated Steel
Dimensions*	41-L x 43.5-D x 31.75-H
Weight*	1,950 lb
Efficiency	99.10%
No Load Loss (in watts)*	+/- 455W
Load Loss (in watts)*	+/- 1833W
Total Load Loss (in watts)*	+/- 2288W

Drawing

Pad Mounted Transformer Oil Immersed Single Phase 167kva 13800grdy/7968 To 240/120v 2

Specification

25kva-500kva single phase pad mounted transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
	Voltage(v)					(%)
25	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.0-4.5%	98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43
500						99.49

Accessories

Production process

50kva Single Phase Pad Mounted Transformer Oil Type 13200v To 240v 2

50kva Single Phase Pad Mounted Transformer Oil Type 13200v To 240v 3

Pad Mounted Transformer Oil Immersed Single Phase 167kva 13800grdy/7968 To 240/120v 6

50kva Single Phase Pad Mounted Transformer Oil Type 13200v To 240v 4

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
