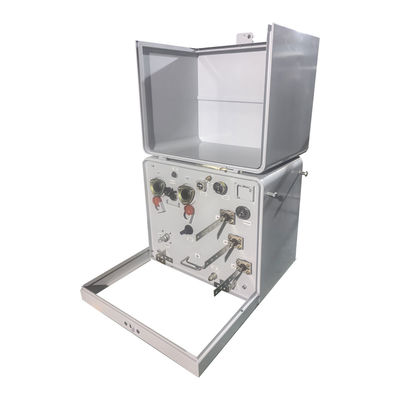

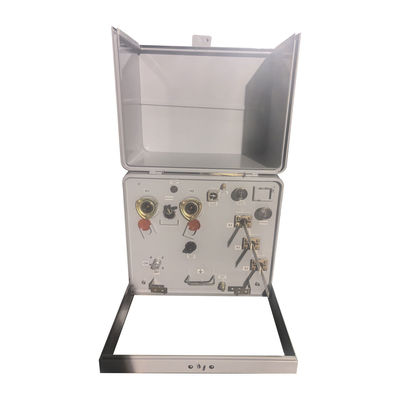

75Kva Single Phase Liquid Filled Pad Mounted Transformer Dual Voltage 34.5KV to 120/240
ANSI single-phase pad-mounted transformers come equipped with a clamshell cabinet for ease of opening and uninhibited access to connections. The versatility of the design allows for various protective and switching configurations.
product structure
Feature
• Meet or exceeds ANSI®, IEEE® and NEMA® standards
• Meets DOE Energy Efficiency Standard 10 CFR Part 431 for distribution transformers
• Tank coating exceeds IEEE Std C57.12.28™-2005 and IEEE Std C57.12.29™-2005 standards (stainless steel units only)
• Full compliance with IEEE Std C57.12.28™-2005 standard enclosure integrity requirements
• Laser engraved nameplate
• Recessed stainless steel lifting provisions
• Tank grounding provisions
• Automatic pressure relief device
• Electrical grade mineral oil
• Hinged door with stainless steel hinge pins and barrels
• Floating lock pocket for easy alignment
• Captive stainless steel pentahead door locking bolt
• Oil fill and drain provisions
• Removable sill
• Welded domed tank cover
• High-voltage bushing wells - 200 A
Main data
| Phase | Single Phase |
| Capacity | 75 KVA |
| Primary Voltage | 34500V |
| Primary Voltage Class | 35 kV Class |
| Primary Phasor | Delta |
| Secondary Voltage | 120/240 (L-N-L) |
| Secondary Voltage Class | 1.2 kV Class |
| Secondary Phasor | Dual Winding Single Phase |
| Secondary BIL | 30 KV |
| Frequency | 60 Hz |
| Temperature Rise | 65°C |
| Insulation Rating | Class E Insulation - 120°C, 248°F |
| Cooling Class | ONAN; Self-Cooled |
| Tap Changer | 5-Position Tap Changer |
| Impedance | 1.8% |
| Primary Connection Type | Dead Front |
| K-Factor Rating (Harmonic Mitigation) | K-1 (Standard) |
| Insulation Fluid | Mineral Oil - Non PCB Fluid - Non-PCB Fluid |
| Winding Material | Aluminum |
| Ambient Temperature Rating | 40°C |
| Sound Level | 51 dBA |
| Dimensions* | 37.4''-W x 45.67''-D x 29.53''-H |
| Efficiency | 99.00% |
| Based on transformer operating at 50% of nameplate base kVA. | |
| Load Losses Based on 85°C Reference Temp. | |
| No Load Loss (in watts)* | +/- 247W |
| Load Loss (in watts)* | +/- 847W |
| Total Load Loss (in watts)* | +/- 1092W |
Product drawings
Specification
| Single phase Pad mounted Transformer Specification | ||||||||
| Rating | High voltage(kV) | No Load Loss | On load Loss | Height | Depth | Width | Oil Weight(kg) | Total Weight(kg) |
| (kVA) | (mm) | (mm) | (mm) | |||||
| 15 kVA | 34.5/19.92 13.8/8 13.2/7.6 12.47/7.2 or others |
50 | 195 | 840 | 740 | 610 | 45 | 294 |
| 25 kVA | 80 | 290 | 840 | 740 | 610 | 68 | 362 | |
| 37.5 kVA | 106 | 360 | 840 | 760 | 610 | 75 | 476 | |
| 50 kVA | 135 | 500 | 840 | 810 | 610 | 93 | 553 | |
| 75 kVA | 190 | 650 | 840 | 860 | 610 | 132 | 672 | |
| 100 kVA | 280 | 1010 | 910 | 1200 | 965 | 230 | 714 | |
| 167 kVA | 435 | 1530 | 1000 | 1200 | 965 | 265 | 913 | |
| 250 kVA | 550 | 2230 | 1250 | 1300 | 1430 | 325 | 1106 | |
Accessories
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
|
|
