75kva Pad Mounted Distribution Power Transformer Single Phase Ansi Standard 13200v 240v

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: CE,ISO
Model Number: D-75/15
Minimum Order Quantity: 1unit
Price: $1000-$10000
Packaging Details: Plywood case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 1000set/month
Detail Information
Phase: Single Phase Transformer Type: Pad Mounted, Compartmental-Type I
Primary Voltage: 13200GrdY/7620 Secondary Voltage: 240/120 (L-N-L)
Frequency: 50/60Hz Impedance: 1.4-2.4%
Winding Material: Copper/Aluminium Efficiency Standard(s): Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards
High Light:

240v Pad Mounted Transformer

,

Single Phase Pad Mounted Transformer

,

13200v Pad Mounted Transformer


Product Description

75kva Pad-Mounted Distribution Power Transformer Single Phase Ansi Standard 13200v 240v





The single-phase pad-mounted transformer rated capacity is 15-250 kVA. Single-phase Pad-mounted Transformer is generally used in places where single-phase power is required for civil use, such as household appliances, etc., and its capacity is relatively smaller than a three-phase pad-mounted transformer.meets the following standards: IEC60076, ANSI/IEEEC57.12.00, C57.12.20, C57.12.38, C57.12.90, CSA, etc.

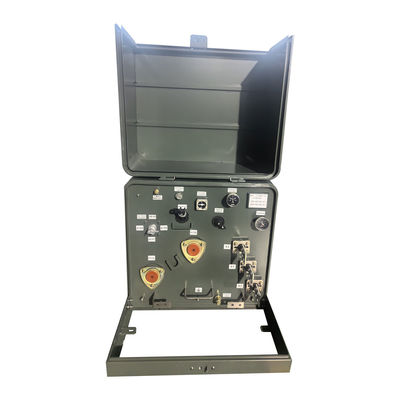

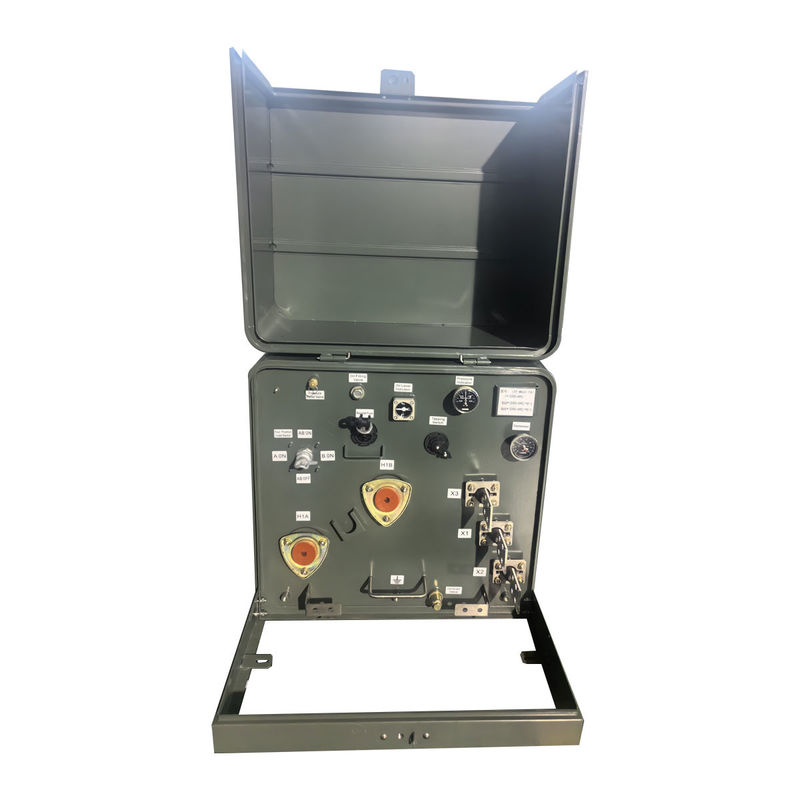

75kva Pad Mounted Distribution Power Transformer Single Phase Ansi Standard 13200v 240v 0



Performance Characteristic



Single-phase pad-mounted transformers are compact, self-contained electrical devices
primarily used in residential and light commercial settings. Their primary application is to step down the high-voltage
electricity supplied by the utility company to a lower voltage suitable for home or small business use.
Single Phase Pad Mounted Transformer Features.
Safety and Security: These transformers are typically enclosed in tamper-proof, lockable
metal cabinets. This design helps ensure safety, reducing the risk of accidental contact with live electrical parts.
Ease of Maintenance: Their design allows for easy access for maintenance and repair work. Utility workers can quickly open the cabinet to perform necessary tasks.
Voltage Regulation: They play a crucial role in voltage regulation, ensuring that the electricity supplied to homes and businesses is within the required voltage range.
Energy Distribution: These transformers are a critical part of the electrical distribution network, ensuring that electricity is
effectively and safely distributed from the power grid to the end-users.



Main data



Phase Single Phase
Capacity 75 KVA
Primary Voltage 13200GrdY/7620
Primary Voltage Class 15 kV Class
Primary BIL 95 KV
Secondary Voltage 240/120 (L-N-L) for 120/240V Distribution
Secondary BIL 30 KV
Frequency 60 Hz
Temperature Rise 65°C
Insulation Rating Class E Insulation - 120°C, 248°F
Cooling Class ONAN; Self-Cooled
Winding Material Copper
Ambient Temperature Rating 40°C
Ambient Operating Temperature Range -40°C to +40°C (-50°F to +104°F)
Sound Level 51 dBA
Elevation (Altitude) 3300ft (1000 meters) Above Sea Level or Below
Core Material Grain Oriented Steel
Tank Material Coated Steel
Compartment Base Wireway Dimensions* 34-L x 19-D
Compartment Cabinet Depth 19-D
Dimensions* 36.5''-W x 42.5''-D x 36''-H
Dry Weight (w/o Oil)* 617.28 Lbs
Total Weight (Liquid Filled)* 1499.12 Lbs
Ratings Meets/Exceeds DOE 2016 Efficiency Ratings
  Meets/Exceeds CSA Efficiency Ratings
  Complies with ANSI / IEEE C57.12.00
Efficiency 99.00%
Based on transformer operating at 50% of nameplate base kVA.
No Load Loss (in watts)* +/- 247W
Load Loss (in watts)* +/- 845W



Specification



25kva-500kva single phase pad mounted transformer
Rated Cap acity(kVA) High Low Voltage(v) Connection Symbol Standard Short-circuit impedance(%) Efficiency
Voltage(v) (%)
25 4160 7200 12000 12470 13200 13800 19920 24940 34500 110 220 230 400 480 II0,II6 IEEE/ANSI/ DOE 1.0-4.5% 98.95
37.5 99.05
50 99.11
75 99.19
100 99.25
167 99.33
250 99.39
333 99.43
500 99.49



Drawing



75kva Pad Mounted Distribution Power Transformer Single Phase Ansi Standard 13200v 240v 1



Factory product photos

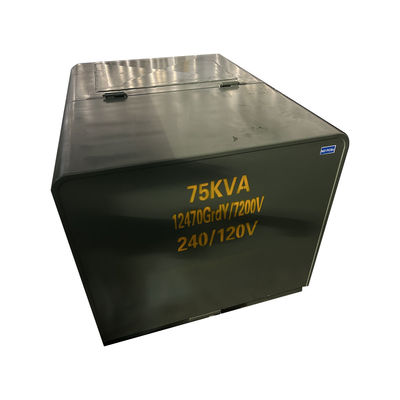

75kva Pad Mounted Distribution Power Transformer Single Phase Ansi Standard 13200v 240v 2



Accessories



75kva Pad Mounted Distribution Power Transformer Single Phase Ansi Standard 13200v 240v 3



Production process



75kva Pad Mounted Distribution Power Transformer Single Phase Ansi Standard 13200v 240v 4



 225 KVA Pad Mount Three Phase Oil Type Transformer 4160V To 480 1 225 KVA Pad Mount Three Phase Oil Type Transformer 4160V To 480 2



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
