| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WINLEY |
| Certification: | CE,ISO |
| Model Number: | D-250/5 |
| Minimum Order Quantity: | 1unit |
| Price: | $1000-$10000 |
| Packaging Details: | Plywood case |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 1000set/month |
| Phase: | Single Phase | Rated Capacity: | 250KVA Or Customized |
|---|---|---|---|
| Primary Voltage: | 4160V | Secondary Voltage: | 240V |
| Cooling Class: | ONAN; Self-Cooled | Frequency: | 60 HZ |
| Winding Material: | Copper/Aluminium | Efficiency: | 99.20% |
| High Light: | Outdoor Pad Mount Transformer,304 Stainless Steel Pad Mount Transformer,250KVA Pad Mount Transformer |
||

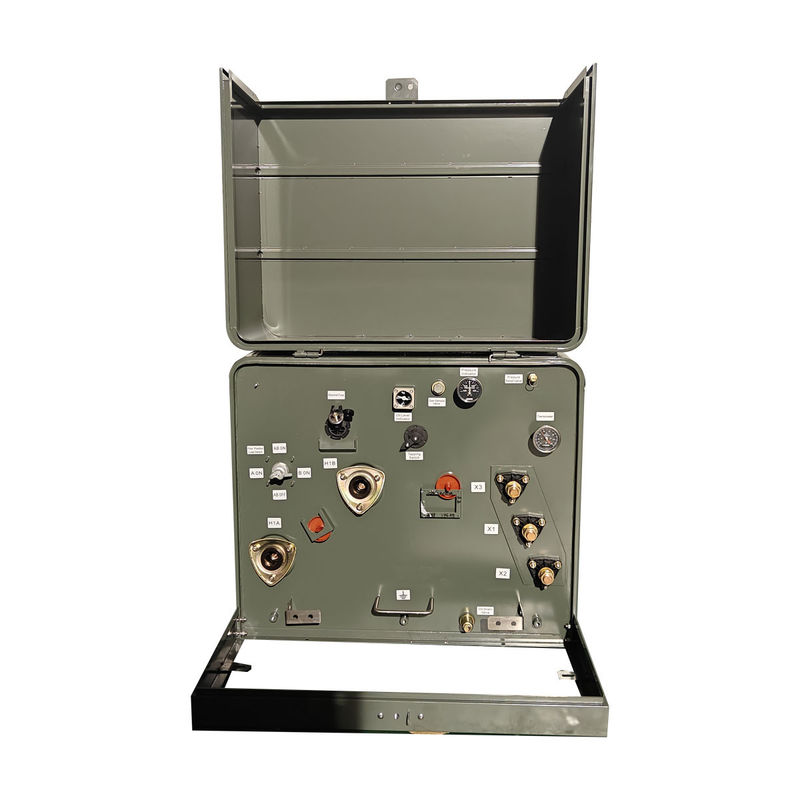

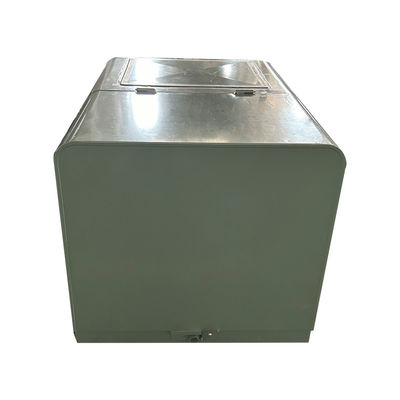

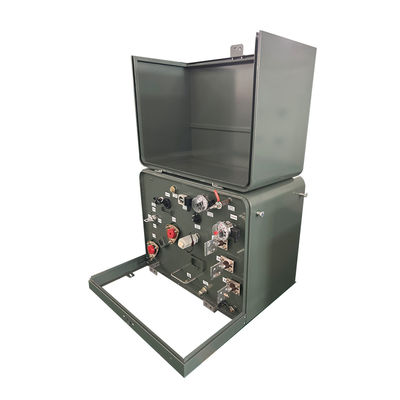

250KVA Single Phase Pad Mount Transformer Distribution System 4160v 240v Outdoor 304 Stainless Steel
Single phase pad mounted transformer is oil-immersed distribution transformer.The traditional transformer is designed in a box-type shell. It has the characteristics of small size, light weight, low noise, low loss, safety and reliability.It is widely used in residential quarters, commercial centers, hospitals, parks, schools, etc.Single phase pad mounted transformers are self-cooled, available in loop or radial feed, and are dead front,Meet or exceeds ANSI /CSA/IEEE standards.
Performance Characteristic
1)Combination Transformer Substation, The top of cabinet is with steel plate clamp rock wool structure which has ventilation duct, can reduce the solar radiation effectively and ensure the heat dissipation.
2)The surface of whole cabinet shell sprays special primer and paint which has strong anti-corrosion ability.
3)The inside can be divided into high voltage chamber, transformer chamber and low voltage chamber respectively.
4) Also it is be equipped with temperature control automatic exhaust device to ensure the temperature range.
5)Each unit has impeccable control, charged display and lighting system.
6)The apparatus equipment are accord with IP33 protection requirement, have reasonable design,structure and technology, with good quality and easy maintenance.
Factory photos
Main data
| Transformer Type | Pad Mounted, Compartmental-Type |
| Transformer Configuration | Liquid Filled Pad Mounted |
| Transformer Feed Type | Loop Feed |
| Phase | Single Phase |
| Capacity | 250 |
| Primary Voltage | 4160GrdY/2400 |
| Frequency | 60 Hz |
| Temperature Rise | 65°C |
| Cooling Class | ONAN; Self-Cooled |
| Tap Changer | 5-Position Tap Changer |
| Winding Material | Copper |
| Ambient Temperature Rating | 40°C |
| Sound Level | 55 dBA |
| Elevation (Altitude) | 3300ft (1000 meters) Above Sea Level |
| Tank Material | 304 Stainless Steel |
| Cabinet Material | 304 Stainless Steel |
| Base Platform Material | 304 Stainless Steel |
| Housing Type | Compartmental Cabinet w/ Doors, HV Compartment Left, LV Compartment Right |
| Paint Type | Munsell Green Paint and Undercoating |
| Finish Color | Munsell 7.0 GY 3.29/1.5 Bell Green |
| Mounting | Pad Mount |
| Conduit Opening | Bottom Feed Underground Entry/Exit |
| Dimensions* | 36 x 54 x 39 |
| Weight* | 2,250 lb |
| Ratings | Meets/Exceeds DOE 2016 Efficiency Ratings |
| Efficiency | 99.20% |
| No Load Loss (in watts)* | +/- 683W |
| Load Loss (in watts)* | +/- 2763W |
| Total Load Loss (in watts)* | +/- 3445W |
Drawing
Specification
| 25kva-500kva single phase pad mounted transformer | ||||||
| Rated Cap acity(kVA) | High | Low Voltage(v) | Connection Symbol | Standard | Short-circuit impedance(%) | Efficiency |
| Voltage(v) | (%) | |||||
| 25 | 4160 7200 12000 12470 13200 13800 19920 24940 34500 | 110 220 230 400 480 | II0,II6 | IEEE/ANSI/ DOE | 1.0-4.5% | 98.95 |
| 37.5 | 99.05 | |||||
| 50 | 99.11 | |||||
| 75 | 99.19 | |||||
| 100 | 99.25 | |||||
| 167 | 99.33 | |||||
| 250 | 99.39 | |||||
| 333 | 99.43 | |||||
| 500 | 99.49 |
|||||
Accessories
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
