| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WINLEY |
| Certification: | CE,ISO |
| Model Number: | D-200/35 |
| Minimum Order Quantity: | 1unit |
| Price: | $1000-$10000 |
| Packaging Details: | Plywood case |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 1000set/month |
| Phase: | Single Phase | Rated Capacity: | 200KVA Or Customized |
|---|---|---|---|
| Primary Voltage: | 34.5KV | Secondary Voltage: | 120/240 |
| Cooling Class: | ONAN; Self-Cooled | Impedance: | 1.5-6.0% Typical |
| Winding Material: | Copper/Aluminium | Efficiency: | 99.20% |
| High Light: | 200Kva dead front pad mounted transformer,dead front pad mounted transformer,34.5KV dead front pad mounted transformer |
||

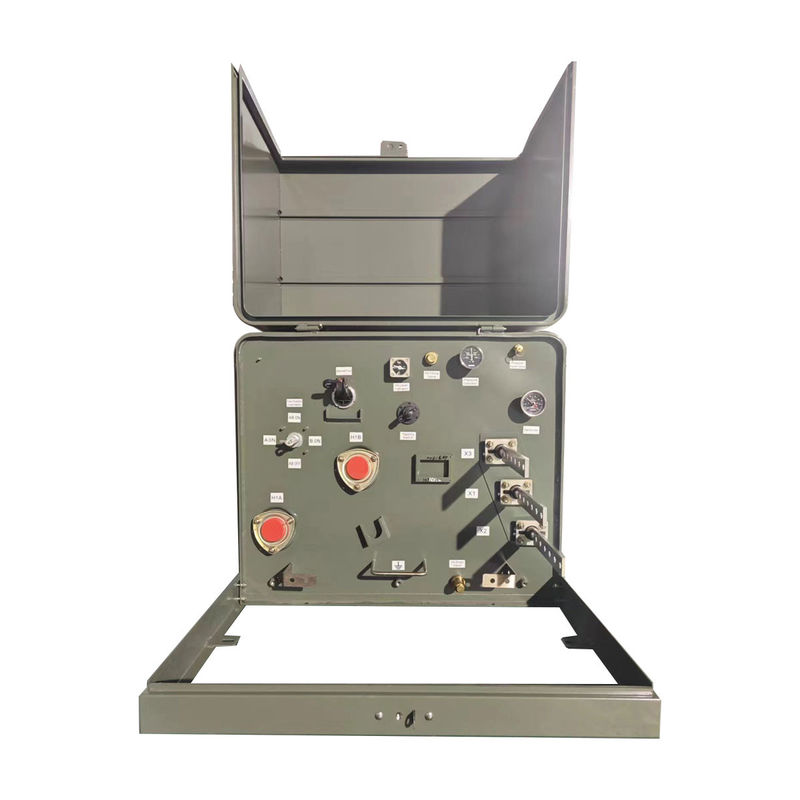

200Kva single-phase dead-front pad-mounted transformer 34.5KV to 240V ANSI IEEE
The single-phase pad-mounted transformer rated capacity is 15-250 kVA. Single-phase Pad-mounted Transformer is generally used in places where single-phase power is required for civil use, such as household appliances, etc., and its capacity is relatively smaller than a three-phase pad-mounted transformer.meets the following standards: IEC60076, ANSI/IEEEC57.12.00, C57.12.20, C57.12.38, C57.12.90, CSA, etc.
Feature
Quality System ISO 9001 certified
Meet DOE Energy Efficiency Standard or exceeds ANSI/IEEE and NEMA standards
Tank coating exceeds IEEE Std C57.12.28TM-2005 and IEEE Std C57.12.29TM-2005 standards (stainless steel units only)
Full compliance with IEEE Std C57.12.28TM-2005 standard enclosure integrity requirements
1. Pressure relief device
2. Fluid fill and drain provisions
3. Laser engraved nameplate
4. Floating lock pocket for easy alignment
5. Decal bushing designations
6.Welded domed tank cover
7.Click Here Get Transformer Drawings
8. Tamper strips of noncorrosive material
9. Crowned tank
10. Removable sill
11. Hinged door with stainless steel hinge pins and barrels
12. Ground strap fromX2 to tank ground
13. HV bushing wells for dead front elbow connectors
14. High voltage bushing wells-200A and low voltage bushin
Main data
| Transformer Type | Pad Mounted, Compartmental-Type I |
| Transformer Configuration | Liquid Filled Pad Mounted |
| Transformer Feed Type | Radial Feed |
| Phase | Single Phase |
| Capacity | 200 KVA |
| Primary Voltage | 34500V |
| Primary Voltage Class | 35 kV Class |
| Primary Phasor | Delta |
| Primary BIL | 150 KV |
| Secondary Voltage | 120/240 (L-N-L) |
| Secondary BIL | 30 KV |
| Frequency | 60 Hz |
| Temperature Rise | 65°C |
| Insulation Rating | Class E Insulation - 120°C, 248°F |
| Cooling Class | ONAN; Self-Cooled |
| Impedance | 1.5-6.0% Typical |
| Efficiency Standard(s) | Meets DOE 2016 Standards, Meets ANSI/IEEE Standards |
| K-Factor Rating (Harmonic Mitigation) | K-1 (Standard) |
| Pulse Drive Rating | N/A |
| Insulation Fluid | Mineral Oil - Non PCB Fluid - Non-PCB Fluid |
| Fluid Capacity* | 110 Gallons |
| Liquid Level Indicator | Analog Gauge |
| Temperature Indicator | Analog Gauge |
| Pressure/Vacuum Indicator | Analog Gauge |
| Winding Material | Aluminum |
| Ambient Temperature Rating | 40°C |
| Sound Level | 55 dBA |
| Elevation (Altitude) | 3300ft (1000 meters) Above Sea Level or Below |
| Dimensions* | 55.12''-W x 51.18''-D x 33.07''-H |
| Ratings | Meets/Exceeds DOE 2016 Efficiency Ratings |
| Efficiency | 99.20% |
| No Load Loss (in watts)* | +/- 683W |
| Load Loss (in watts)* | +/- 2,763W |
Drawing
Specification
| 25kva-500kva single phase pad mounted transformer | ||||||
| Rated Cap acity(kVA) | High | Low Voltage(v) | Connection Symbol | Standard | Short-circuit impedance(%) | Efficiency |
| Voltage(v) | (%) | |||||
| 25 | 4160 7200 12000 12470 13200 13800 19920 24940 34500 | 110 220 230 400 480 | II0,II6 | IEEE/ANSI/ DOE | 1.0-4.5% | 98.95 |
| 37.5 | 99.05 | |||||
| 50 | 99.11 | |||||
| 75 | 99.19 | |||||
| 100 | 99.25 | |||||
| 167 | 99.33 | |||||
| 250 | 99.39 | |||||
| 333 | 99.43 | |||||
| 500 | 99.49 | |||||
Accessories
Factory photos
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
