Single Phase Pad Mounted Transformer

250Kva Single Phase Pad Mounted Transformer Oil Immersed Power Electrical Distribution 4160V

All Category

Three Phase Isolation Transformer

Three Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Industrial Control Transformer

Single Phase Control Transformer

Toroidal Isolation Transformer

Three Phase Dry Type Transformer

Three Phase Reactor

Mr. Steven

steven@winley-electric.com

86-18650108051

Contact Now

250Kva Single Phase Pad Mounted Transformer Oil Immersed Power Electrical Distribution 4160V

Brand Name:	WINLEY
Model Number:	D-250/5
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Phase:

Single Phase

Rated Capacity:

250KVA

Cooling Class:

ONAN; Self-Cooled

Frequency:

50Hz/60Hz

Primary Voltage:

4160GrdY/2400

Secondary Voltage:

240/120V

Winding Material:

Copper

Efficiency:

99.20%

Supply Ability:

1000set/month

Highlight:

Single Phase Pad Mounted Transformer

4160V Electrical Distribution Pad Mounted Transformer

250Kva Pad Mounted Transformer

Product Description

250Kva Single Phase Pad Mounted Transformer Oil Immersed Power Electrical Distribution 4160V

structure

250Kva Single Phase Pad Mounted Transformer Oil Immersed Power Electrical Distribution 4160V 0

Summarization

1)Single phase pad mounted transformers are placed inside a cabinet with doors and locks, usuallylocated outdoors. These transformers are manulactured with ratings from 15-250 kVA.
2)Al of these distribution transformers are oil-insulated, sef-cooled,available in loop or radial feed, and are dead-front
3)These transformers come in two basic configurations radia and loop feed,which are selectied based on the type of circuit on which the transformers wil be insalled.

Main data

Transformer Type	Pad Mounted, Compartmental-Type
Transformer Configuration	Liquid Filled Pad Mounted
Transformer Feed Type	Loop Feed
Phase	Single Phase
Capacity	250
Primary Voltage	4160GrdY/2400
Primary Phasor	Grounded Wye
Primary BIL	60 KV
Secondary Voltage	240/120V (L-N-L)
Secondary Phasor	Dual Winding Single Phase
Secondary BIL	30 KV
Frequency	60 Hz
Temperature Rise	65°C
Cooling Class	ONAN; Self-Cooled
Efficiency	Meet DOE 2016 Standard
Winding Material	Copper
Ambient Temperature Rating	40°C
Sound Level	55 dBA
Elevation (Altitude)	3300ft (1000 meters) Above Sea Level
Tank Material	304 Stainless Steel
Ratings	Meets/Exceeds DOE 2016 Efficiency Ratings
Efficiency	99.20%
Total Load Loss (in watts)*	+/- 3445W

Factory photos

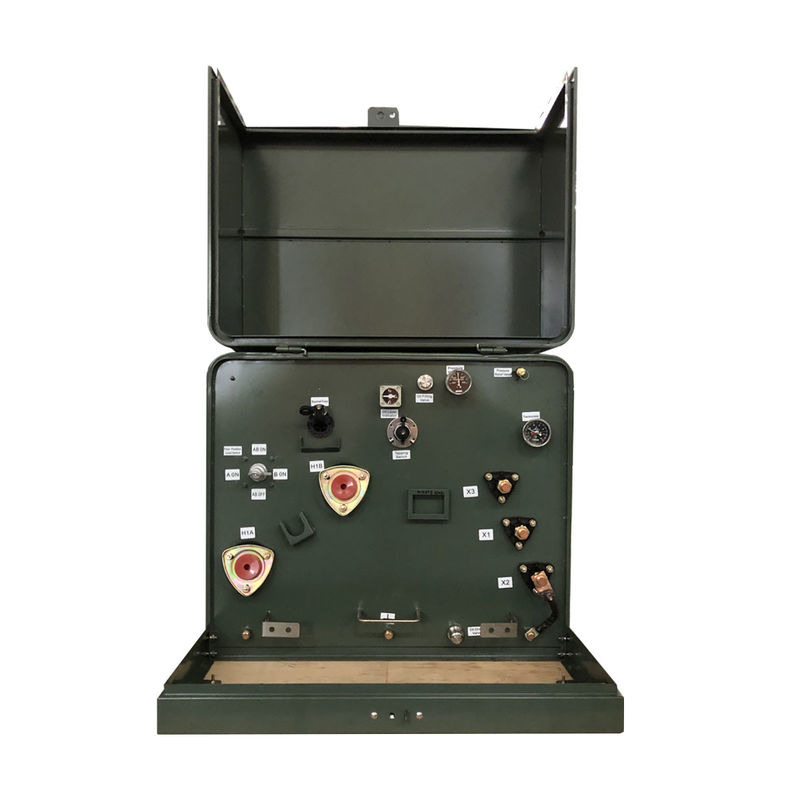

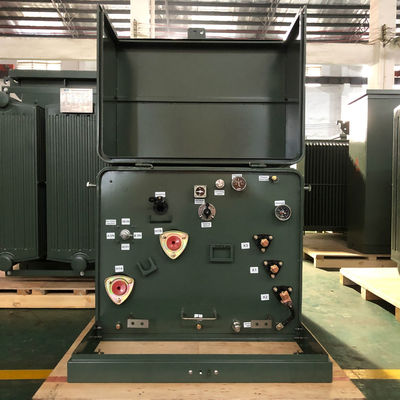

250Kva Single Phase Pad Mounted Transformer Oil Immersed Power Electrical Distribution 4160V 1

Specification

25kva-500kva single phase pad mounted transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
	Voltage(v)					(%)
25	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.0-4.5%	98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43
500						99.49

Drawing

250Kva Single Phase Pad Mounted Transformer Oil Immersed Power Electrical Distribution 4160V 2

Production process

50kva Single Phase Pad Mounted Transformer Oil Type 13200v To 240v 2

50kva Single Phase Pad Mounted Transformer Oil Type 13200v To 240v 3

13.2kv 480V Secondary Voltage Single Phase Pad Mounted Transformer Oil Type 250kVA 5

50kva Single Phase Pad Mounted Transformer Oil Type 13200v To 240v 4

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.

Factory photos

250Kva Single Phase Pad Mounted Transformer Oil Immersed Power Electrical Distribution 4160V 1
